Quick Details
-
Dimension(L*W*H):
-
5700*2130*2200mm
-
Weight:
-
4000 KG
-
Mobility:
-
Move by crawler
-
Product name:
-
horizontal drilling machine mine drilling rig rock drilling rig
-
Drilling pipe size(mm):
-
76*3000
-
Drilling diameter(mm):
-
90-130
-
Pushing force(kN):
-
15
-
Leveling angle:
-
2200
-
Rotation speed(rpm):
-
0-150
-
Grade ability:
-
30°
-
Air consumption:
-
can be choose
-
Function:
-
Variours
-
Power(KW):
-
58
Quick Details
-
Place of Origin:
-
Shandong
-
Brand Name:
-
Hongrun
-
Voltage:
-
diesel engine
-
Dimension(L*W*H):
-
5700*2130*2200mm
-
Weight:
-
4000 KG
-
Mobility:
-
Move by crawler
-
Product name:
-
horizontal drilling machine mine drilling rig rock drilling rig
-
Drilling pipe size(mm):
-
76*3000
-
Drilling diameter(mm):
-
90-130
-
Pushing force(kN):
-
15
-
Leveling angle:
-
2200
-
Rotation speed(rpm):
-
0-150
-
Grade ability:
-
30°
-
Air consumption:
-
can be choose
-
Function:
-
Variours
-
Power(KW):
-
58
Product Description
|
Model
|
Hongrun STD300
|
|
Engine brand
|
Yuchai
|
|
Drilling pipe size（mm）
|
φ76*3000
|
|
Drilling diameter（mm）
|
φ90-130
|
|
The way of pushing
|
Cylinder chain
|
|
Pushing force（kN）
|
15
|
|
Leveling angle
|
±10°
|
|
Max.torque（N.m）
|
2200
|
|
Rotation speed（rpm）
|
0-150
|
|
Grade ability
|
30°
|
|
Weight（kg）
|
4000
|
|
Transport Dimensions（mm）
|
5700*2130*2200
|
|
Walking Speed（km/h）
|
2.5
|
|
Lifting force（kN）
|
25
|
|
Power（KW）
|
58
|

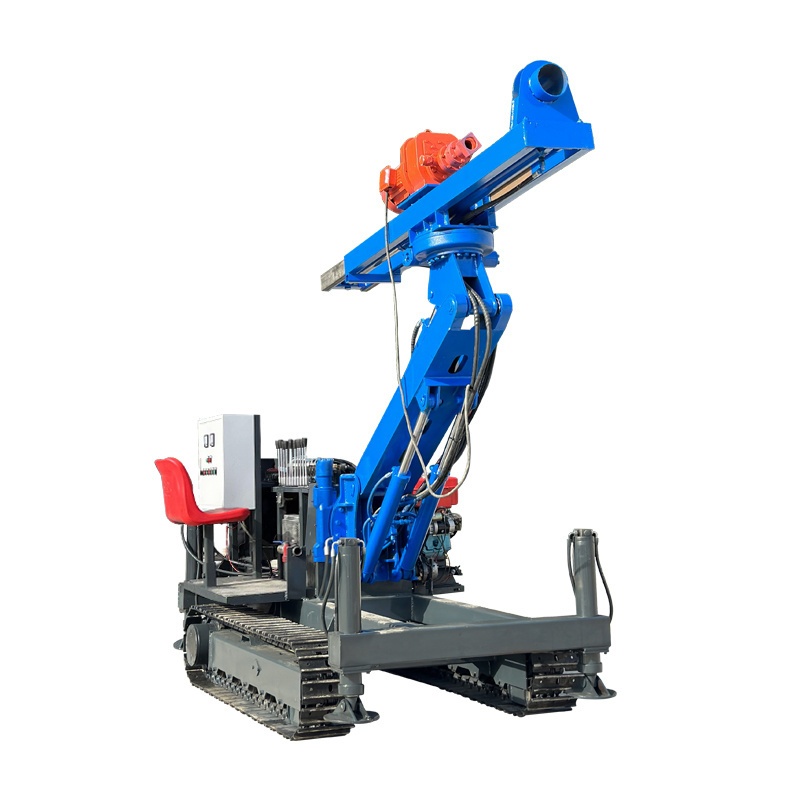

Small crawler pneumatic DTH drilling machine /Tunnel Boring Machine/Mini tunnel drill rig
Using :
Before the coal mining, coal mines drilled gas drainage (discharge) holes, grouting fire prevention holes, coal seam water
injection holes, anti-burst pressure relief holes, water exploration holes, geological exploration holes and coal mine underground drilling.
Introductions:
The small tunnel rig can rotate 360 degrees in all directions. This model is equipped with a dual-motor rotary head and a multi-way valve with adjustable rotary speed. The rotary torque can reach 2200N.m, which meets the needs of 76 drill pipes and 130 bores. The rotation speed can reach up to 150 revolutions, which meets the needs of some customers for high-speed drilling in soft rock formations. At the same time, the 920 series models are equipped with engineering tracks and plunger motors as standard, which increase the leveling function, improve the climbing and cross-country performance of the equipment, and can adapt to complex terrain conditions. Vertical holes can be drilled for slopes to meet the needs of different working conditions.
A variety of models can be selected and support customization！
Welcome to consult, I will customize products for you according to your needs!
Various types of accessories can be selected
