Quick Details
-
Brand Name:
-
EVANGEL
-
Motor Power:
-
85kw
-
Charging Capacity:
-
0.7m3
-
Reclaiming capacity:
-
3.5M3
-
Water Supply Mode:
-
SELF PROVIDE
-
Working Cycle Period:
-
1 HOUR
-
Discharge Way:
-
SELF
-
Outline Dimension:
-
7941*2360*2500mm
-
Weight (KG):
-
7500 kg
-
machie weight:
-
7500kg
-
Transmission:
-
Full Hydraulic
-
Brake:
-
Air Brake
-
chassis:
-
Off-road
-
Engine:
-
YUCHAI
-
Cylinder:
-
4
-
Bank Angle:
-
16
-
Hydraulic oil tank:
-
150L
-
Water tank:
-
297L
-
After Warranty Service:
-
Spare parts
Quick Details
-
Mixing Power:
-
85KW
-
Productivity:
-
14M³/H
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EVANGEL
-
Motor Power:
-
85kw
-
Charging Capacity:
-
0.7m3
-
Reclaiming capacity:
-
3.5M3
-
Water Supply Mode:
-
SELF PROVIDE
-
Working Cycle Period:
-
1 HOUR
-
Discharge Way:
-
SELF
-
Outline Dimension:
-
7941*2360*2500mm
-
Weight (KG):
-
7500 kg
-
machie weight:
-
7500kg
-
Transmission:
-
Full Hydraulic
-
Brake:
-
Air Brake
-
chassis:
-
Off-road
-
Engine:
-
YUCHAI
-
Cylinder:
-
4
-
Bank Angle:
-
16
-
Hydraulic oil tank:
-
150L
-
Water tank:
-
297L
-
After Warranty Service:
-
Spare parts

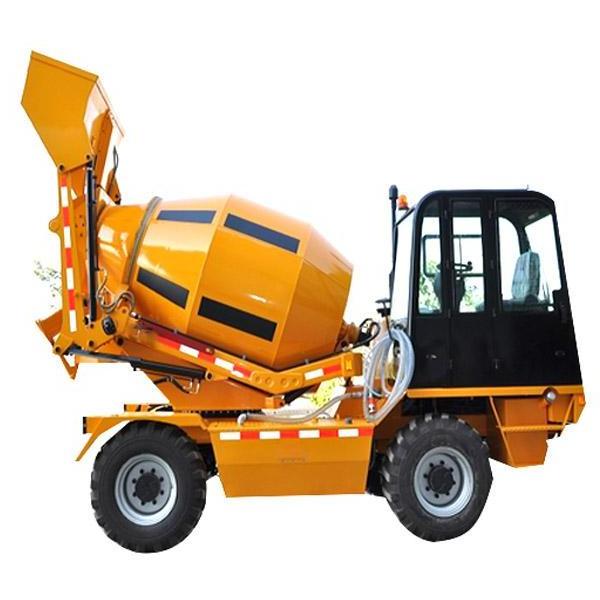

3.5m3 mixing capacity Self Loading Mobile Concrete Mixer HY3500
Model HY-3500 Self Loading Concrete Mixer Truck is a kind of unique
vehicle which combines concrete mixer, transit mixer and wheel loader. It
features bidirectional driving, which is realized by the 270 degrees slewing of
drum. The concrete output ability is 14 cube meters per hour. The outsize
wheel-side reducer driving axle and full hydraulic transmission case make the
mixer truck move in any kinds of complex off road ways, the max. moving speed
can be up to 25 km/hour, and the min. turning radius is 5.3 meters only.
HY-3500 is equipped with driving camera, automatic water feeding &
metering system, hydraulic water suction pump, and air conditioner, etc. The
mixing drum can be slewed hydraulically through 270 degrees together for high
discharge over 1.6m on the four sides of the vehicle. The drum can also be lifted
up 16 degrees from the bottom by two hydraulic cylinders for the convenience of
concrete discharge.
The vehicle size is small, which is suitable for limited site and widely new in
new rural construction, urban construction, tunnel, airport, seaport,
high-speed rail site, remote areas where there are no electric power, middle
projects, farmer’s houses, building,
country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which
characterized in saving labors, high efficiency concrete output.
High strength steel plate, which enhances the load capacity and high stability
of vehicle.
The material of rolling ring and mixing drum adopts 16mn high strength steel
which uses forging normalizing manufacturing process.
Mixing blade is designed with varying pitching angles, which simplifies the
feeding device, ensures the speed faster and mixing performance better.
|
|
Net |
7500 KG |
||
|
Transmission |
4 WD |
|||
|
|
Brake |
Air Brake |
||
|
Chassis |
Off-road |
|||
|
Loader bucket |
capacity |
0.7m3 |
||
|
Control |
Hydraulic |
|||
|
Tilt angle |
20% |
|
||
|
Speed |
High |
0-30KM/H |
||
|
Low |
0-9KM/H |
|||
|
Mini turning radius |
3.5M/R |
|||
|
Engine |
Type |
YUCHAI |
4105 |
|
|
Rated Power/RPM |
85KW/2200RPM |
|||
|
Max.Torque/RPM |
360N.M/1400RPM |
|||
|
Cylinder |
4 |
|||
|
Starter |
Electric |
|||
|
Cooling type |
water cooling |
|||
|
Maxing Drum |
Output capacity |
3.5M3 |
||
|
Bank Angle |
16 ° |
|||
|
Chute |
Swing Angle |
≥ 50 ° |
||
|
Angle control |
Hydraulic |
|||
|
Loader control |
Hydraulic 4 way stick |
|||
|
Tyre model |
12R22.5 tyre |
|||
|
Electronic parts |
Waterproof circuit |
|||
|
Hydraulic oil |
France Total brand |
|||
|
Water tank capacity |
297L |
|||
|
Hydraulic oil tank capacity |
150L |
|||
|
Diesel oil tank capacity |
190L |
|||
|
Overall size |
7941x2360x2500mm |
|||
|
Wheelbase |
3000mm |
|||
|
Tread |
1700mm |
|||
