Surface Treatment
Smooth Surface, Anti-Dirt.
Connector
Injection molded connector coomposed by injecting high density
liquid material. IP68 protection rating, ideal appearance.
Interrupter
waterproof treatment to avoid moisture penetrating from the wire connection.
Tinned Wire
UL W Grade Cable, 18Awg
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
LANDSCAPE
-
Color Rendering Index(Ra):
-
>80, >90
-
Product Weight（kg）:
-
0.36
-
CRI (Ra>):
-
90
-
Lamp Luminous Flux(lm):
-
500
-
Working Temperature(℃):
-
-25 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Olympia Lighting
-
Model Number:
-
F15/SF15
-
MOQ:
-
1 Pcs
-
Power:
-
5W/M, 12W/M, 15W/m
-
Type:
-
Side bending
Quick Details
-
Color Temperature(CCT):
-
2200K-6500K
-
Warranty(Year):
-
3-5 Years
-
Lamp Body Material:
-
PVC/Silicone
-
Application:
-
LANDSCAPE
-
Color Rendering Index(Ra):
-
>80, >90
-
Product Weight（kg）:
-
0.36
-
CRI (Ra>):
-
90
-
Lamp Luminous Flux(lm):
-
500
-
Working Temperature(℃):
-
-25 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Olympia Lighting
-
Model Number:
-
F15/SF15
-
MOQ:
-
1 Pcs
-
Power:
-
5W/M, 12W/M, 15W/m
-
Type:
-
Side bending
Specification
|
Product Name
|

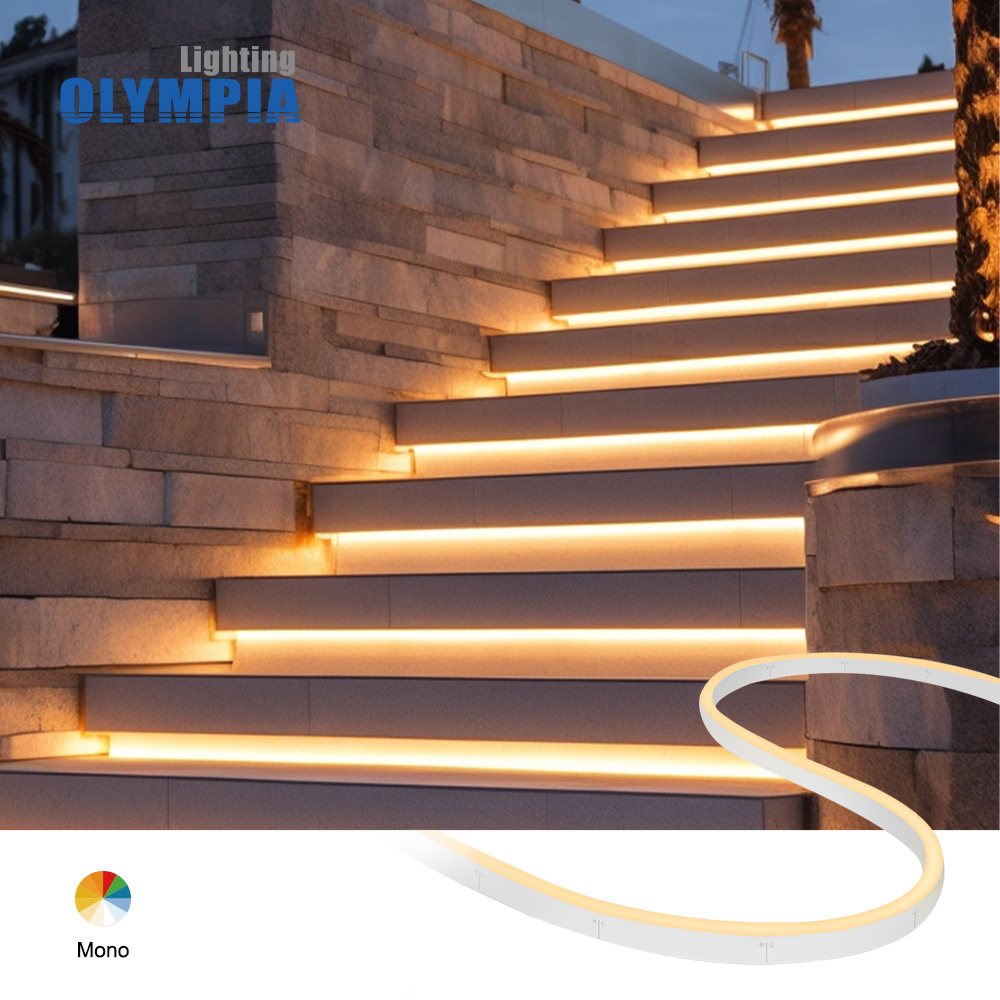

Silicone/PVC 5050 LED Neon Flex for Pool Architectural Lighting IP68 Mono LED Strip Rope Light 2200K-6500K 12V 24V Neon Lights
|
|
Usage
|
Hotel, Home, Office, Garden, Building, swimming pool
|
|
Frame
|
Silicone/PVC
|
|
Color
|
As picture or customized
|
|
Lifespan (hours)
|
50000
|
|
IP Rating
|
IP68
|
|
Input Voltage(V)
|
DC 24V
|
Olympia Lighting
Other brand
① Sticky Surface, easy to stick dirt.
② Glued, degradation after 1 year, rough appearance.
③ No any waterproof design for the cable.
④ Non-waterproof cable, not suitable for outdoor use.
⑤ 0.5mm cable, not tinned.
Olympia Lighting
FPCB
Rolled Copper Foil
a. High twisting and bending resistance
b. Better heat dissipation
c. Much less voltage drop
Copper Thickness
4oz(Front:1oz, Back:3oz)
Circuit Design
Circuit design catered to LED linear flex in consideration of high durability.
LED
a. High Strength and Pure copper package
b. Pure Gold Bonding Wire
c. Brand First Class Chip
Other brand
①
FPCB: Electrolytic copper
a. Thickness: 2oz(Front:1oz, Back:1oz)
b. Width: 8-10mm
c. Break easily when twisting
d. Bad heat dissipation
e. Apparent voltage drop
②LED:
a. Iron copper package
b. Alloy Bonding Wire
c. Cheap Chip
③Circuit Design is normal LED strip design.
Olympia Lighting
Gas phase silicon (Medical Grade)
Cost: above USD10.3/kg
Elongation: 800-1000%
Tensile strength: 7.8-10Mpa
Transparency: High
Life Span: > 5 Years
Anti-UV Grade: High
Other brand
Precipitated silicon
Cost: below USD4.0/kg
Elongation: 150-300%
Tensile strength: 4-6.9Mpa
Transparency: Low
Life Span: < 2 Years
Anti-UV Grade: Low
Olympia Lighting
Solid Structure: Robust but High lumen Output.
Other brand
Hollow Structure: Easy to be deformed, Waterproof Problem.
