Quick Details
-
Main Circuit Rating Voltage:
-
380v
-
Main Circuit Rating Current:
-
400A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AOELEC
-
Model Number:
-
MCP-95
-
Certificate:
-
Semko,CB,CE
-
Test report:
-
CB test report
-
Main circuit Rating current:
-
9A-95A
-
Rated control voltage:
-
24V,48V,110V,230V,400V
-
Mechanical endurance:
-
10000000 times
-
Electrical endurance:
-
1000000 times
-
Electrical type:
-
AC
-
Standard:
-
IEC60947-1
-
Color:
-
White & black
-
Special service:
-
Supply OEM service
Quick Details
-
Electricity Type:
-
AC
-
Number of Pole:
-
3
-
Phase:
-
3
-
Main Circuit Rating Voltage:
-
380v
-
Main Circuit Rating Current:
-
400A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AOELEC
-
Model Number:
-
MCP-95
-
Certificate:
-
Semko,CB,CE
-
Test report:
-
CB test report
-
Main circuit Rating current:
-
9A-95A
-
Rated control voltage:
-
24V,48V,110V,230V,400V
-
Mechanical endurance:
-
10000000 times
-
Electrical endurance:
-
1000000 times
-
Electrical type:
-
AC
-
Standard:
-
IEC60947-1
-
Color:
-
White & black
-
Special service:
-
Supply OEM service
Application:

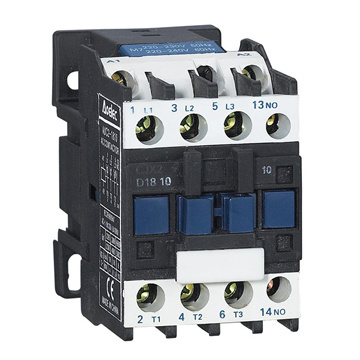

MCP AC Contactor is suitable for using in the circuits of AC 50Hz or 60Hz,rated insulating voltage 660V,rated operating voltage up to 690V,rated operating voltage 380/400V in AC-3 type,rated operating current up to 95A,for marketing,breaking,frequently starting & controlling the AC motor.Combined with the auxiliary contact block,timer delay & mechnical interlocking device etc.it becomes the delay contactor,mechnical interlocking contactor,star-delta starter.With the thermal relay,it is combined into the electromagnetic starter.The contactor is produced according to IEC60947-4.The product is Semko certified by INTERTEK.
Unique features:
Quick connect-snap on accessory mounting
Distinct contact status indication
Up to four auxiliary contacts can be mounted
Mechanical interlock only 5mm deep
Positive(force) guided contacts(mechanically-linked per IEC)
Technical Data:
Rated operating current(A):40A, 400V, AC-3
18.5A, 400V, AC-4
34A, 600V, AC-3
9A, 600V, AC-4
Rated working voltage(Ue):400V AC,600V AC
Rated operational power at AC3:230V,11kw
400V,18.5kw
660V,30kw
Conventional thermal current(Ith):60A(Main contacts)
10A(coil)
Rated control voltage:24V,48V,110V,230V,400V
Electrical endurance:800000 times,AC3
150000 times,AC4
Mechnical endurance:8000000 times
Protection degree:IP20
Number of pole:3P,4P
Number of auxiliary:1NO or 1NC,3P
2NO+2NC or 4NO,4P
Standards:IEC60947-4-1,EN60947-4-1
Catalog No. CTN size:42x26x20CM
| Model | QTY/Box | QTY/CTN | N.T(g) |
| MCP4011-24V 3P | 1 | 50 | 1146.5 |
| MCP4011-48V 3P | 1 | 50 | 1146.5 |
| MCP4011-110V 3P | 1 | 50 | 1146.5 |
| MCP4011-230V 3P | 1 | 50 | 1146.5 |
| MCP4011-400V 3P | 1 | 50 | 1146.5 |
