Quick Details
-
Applicable Industries:
-
electromechanical
-
Frequency:
-
30-100KHZ
-
Package:
-
Plywood case
-
Application:
-
Brazing, Melting, Quenching, Annealing etc.
-
Dimension:
-
500*210*460mm
-
H.S code:
-
8514400090
-
Cooling Water:
-
>0.2MPa 2-5L/Min
-
Working Theory:
-
Electromagnetic Induction Heating
-
After Warranty Service:
-
Video technical support
-
Keyword:
-
Hot Sale Fast Heating Induction Heater Brazing Equipment
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JINLAI
-
Weight (KG):
-
18
-
Applicable Industries:
-
electromechanical
-
Frequency:
-
30-100KHZ
-
Package:
-
Plywood case
-
Application:
-
Brazing, Melting, Quenching, Annealing etc.
-
Dimension:
-
500*210*460mm
-
H.S code:
-
8514400090
-
Cooling Water:
-
>0.2MPa 2-5L/Min
-
Working Theory:
-
Electromagnetic Induction Heating
-
After Warranty Service:
-
Video technical support
-
Keyword:
-
Hot Sale Fast Heating Induction Heater Brazing Equipment
l 100% payment protection and USD100,000 warrantee by Alibaba.
l Strict quality checking standard according ISO9001:2008 .
l With all frequency machine series, also can customized.
l All machines continuously 48 hours testing before shipment.
l Perfect pre and after-sale service and long term technical supporting .
How to order ?
1) Kindly tell us your details job requirement , for heating? Brazing? Melting? Forging? Hardening, Annealing? Or ?
2) Confirm the details, then professionally advise you most suitable machine , send the offer to you with all details.
3) Confir m the order and invoice.
4) Receiving your payment , start production. (3-5days)
5) Express/ Air shipment (3-5days) or Sea shipment. (15-30days)

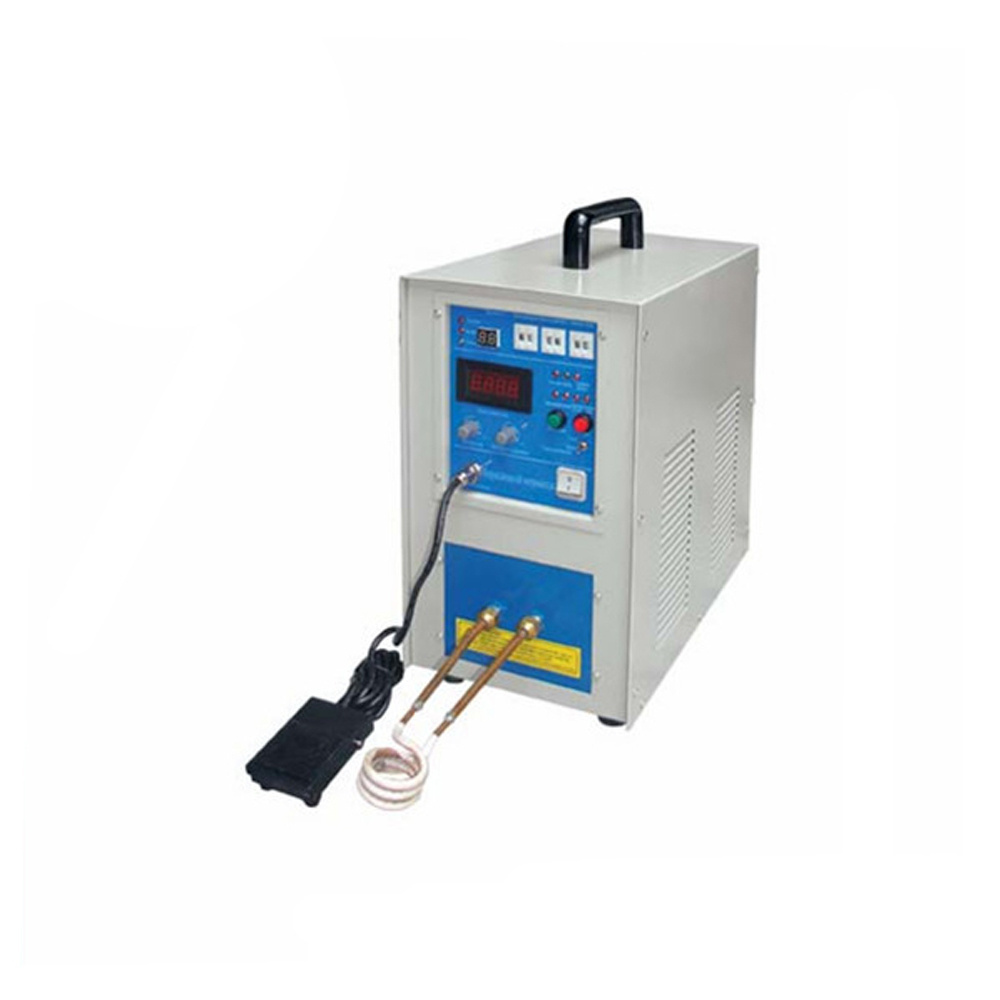

Hot Sale Fast Heating Induction Heater Brazing Equipment
Main characteristics
- Adoping MOSFGT and IGBT inverting device, tracking frequency automatically.
- High frequency, heated quickly, its powei consumption is only 20%~30% of eletronic tube induction heating machine and other heating style.
- Security and reliability, the equipments have the secure voltage and it's secure to operate.
- Manual, automatic regulating automatically, it can protect itself from over voltage, over current, lack of water, phase fail, over hot, etc.
- It has no open-fire, noise and pollution, be suit for the environmental protection and fire, improve the image of the company.
- Recommend usage: Weld, forging, hot cooperate, melting, quenching, anneat etc
Technical Parameters
| Model | JL-25KW |
| I nput power desire |
3 phase 380V
50/60HZ |
| O scillate power max | 25KW |
| M ax input current | 24A |
| Max input power | 15KW |
| O scillate frequency | 30-100KHZ |
| C ooling water desire | >0.2MPa 2- 6 L/Min ≤40℃ |
| D uty cycle | 100% |
| D imensions(L*W*H) | 550*240*480mm |
| N et weight | 30kg |
| C able length | 2-6(Meters) |
Heating Principle
The principle of high frequency induction heating is that apply high frequency alernating current to a conduct that is curled to cyclic (normally copper tube) to produce flux, then put the metal to this area to make the flux to run through it, and eddy current will be generated in the deriction of self-capturing with flux(rotary current), the induced current then generates heat under the influence of the eddy current, so this heating method is called induction heating. hence, metal and other objects under heated can be heated without contact. at this moment, the character of the eddy current relies in that the induction heating on the object nearby the coil is outwardly strong but inwardly weak. with this principle. this heating body can be concentratedly heated where needed to achieve instantly effect, thereby the production output and work capacity are both improved.
Applications:
- 1. Metal tube welding: such as copper tube, steel tube, and aluminum tube’s butt welding, plug welding and welding sets.
- 2. Alloy cutter welding: such as alloy turning, milling cutter, planer, saw blades, reamer, boring knife.
- 3. Carbide saw blade welding: diamond saw blade welding, marble saw blade welding,woodworking saw blade welding, cut grass piece of welding, cut aluminum welding,
- 4. Metal welding: such as: towel rack, soap nets, towel holder, auto-accessories,motor accessories, metal terminals, hardware pieces, electric heating tube parts and fasteners.
- 5. make machine according to customers' actual working situation.
List of Accessories In the Package
| Item | Name of machine or parts | Specification | Amount |
| 1 | JL -25 KW heating power | - | 1 pcs |
| 2 | Foot pedal | 3 core | 1 pcs |
| 3 | Induction Coils | - | 2 sets |
| 4 | Water Cable | - | 1 set |
| 5 | Instruction Manual | - | 1 pcs |
| 6 | Product catalog | - | 2 sets |
