Quick Details
-
Strike:
-
90L*25W*2H(mm)
-
Input Voltage:
-
DC12V±10%
-
Working Current:
-
80mA
-
Door Type Applicable:
-
Wooden Door/Glass Door/Metal Door/Fireproof Door
-
Security Type:
-
Locked when energized (Unlocked when energized need customize)
-
Weight:
-
0.75KG
-
Time Delay:
-
Yes
-
Signal output:
-
Yes
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Vians or OEM
-
Lock Size:
-
200L*24.5W*39H(mm)
-
Strike:
-
90L*25W*2H(mm)
-
Input Voltage:
-
DC12V±10%
-
Working Current:
-
80mA
-
Door Type Applicable:
-
Wooden Door/Glass Door/Metal Door/Fireproof Door
-
Security Type:
-
Locked when energized (Unlocked when energized need customize)
-
Weight:
-
0.75KG
-
Time Delay:
-
Yes
-
Signal output:
-
Yes

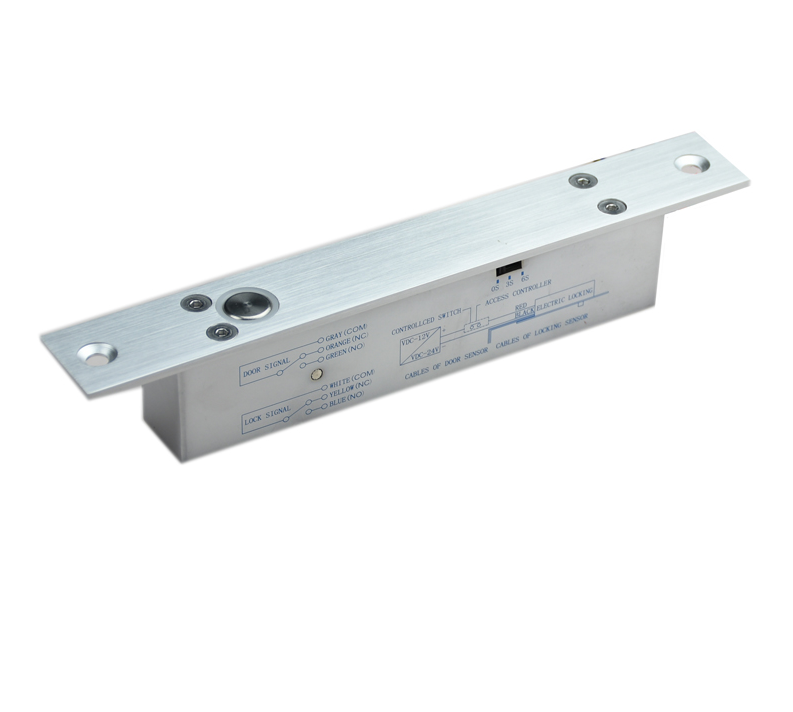

Narrow Panel Electric Bolt Lock with Time delay and Lock Signal
Electric Bolt Lock is kind of electric control locks ,it works by means of extending or retracting the lock bolt with electric current. The Vians Electric Bolt lock use the microprocessor chip to control electric circuit ,so it decreases the power consumption and really has the ultralow temperature function. After 50000 times of test, we can assure our locks are more stable, more environmentally friendly and durable.
Specification:
|
Lock Size: 200 Lx24.5Wx39H(mm) |
|
Strike : 90 Lx24.5Wx2H(mm) |
|
|
Input Voltage: DV 12V+10% |
|
|
Current: 80mA |
|
|
Suitable: Wooden/Glass/Metal/Fireproof Door |
|
|
Time Delay: Yes |
|
| Signal output : Yes | |
| Security Type: Locked when energized (Unlocked when energized need customize) | |
| Weight :0.75KG |
Feature:
* 5 Years Warranty
* More than 500 000 working times.
* Ultra-low temperature design, Safer and more durable .
*High-strength aluminum alloy, Anodized.
* Built-in reverse current and prevention device (MOV) .
* High strength aluminum alloy lock body, stainless steel lock bolt.
