Quick Details
-
Brand Name:
-
YB
-
Voltage:
-
220V/380 V or other require
-
Power:
-
According to the tissue paper machine
-
Dimension(L*W*H):
-
According to the tissue paper machine
-
Weight:
-
1000 kg
-
Product name:
-

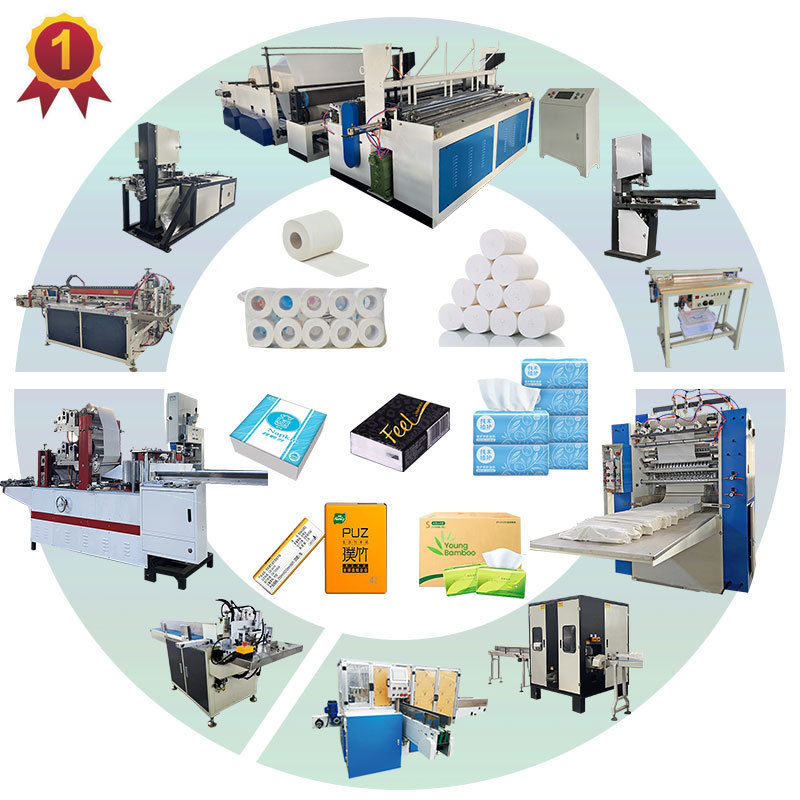

Tissue paper making machine and packing machine
-
Finished Products:
-
Napkin paper,Toilet Roll,Facial Tissue Paper
-
Raw material:
-
Wood Pulp
-
Output paper:
-
Tissue Paper Product
-
Application:
-
Household Tissue Paper Production
-
Embossing unit:
-
Customized Embossing
-
Advantage:
-
High quality tissue paper machine
-
After Warranty Service:
-
Video technical support
-
Color:
-
Customized Color
-
Certification:
-
CE.ISO
Quick Details
-
Production Capacity:
-
Other
-
Product Type:
-
tissue paper making machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YB
-
Voltage:
-
220V/380 V or other require
-
Power:
-
According to the tissue paper machine
-
Dimension(L*W*H):
-
According to the tissue paper machine
-
Weight:
-
1000 kg
-
Product name:
-
Tissue paper making machine and packing machine
-
Finished Products:
-
Napkin paper,Toilet Roll,Facial Tissue Paper
-
Raw material:
-
Wood Pulp
-
Output paper:
-
Tissue Paper Product
-
Application:
-
Household Tissue Paper Production
-
Embossing unit:
-
Customized Embossing
-
Advantage:
-
High quality tissue paper machine
-
After Warranty Service:
-
Video technical support
-
Color:
-
Customized Color
-
Certification:
-
CE.ISO
Automatic napkin tissue paper making machine
Cooperate with us you will get：
1.Choose from
a variety of embossing patterns
for customization(more than 20 type)
2.
1/2 fold, 1/4 fold, 1/6 fold and 1/8
fold are available
3.Can choose
primary color
printing,
single color
printing and
two-color
printing
4.
Large stock, fast delivery
This kind of napkin folding machine is mainly used for embossing, folding, electronic counting, and cutting rolled paper, which is cut well into square or rectangular napkin paper. If you need machine with embossing and color printing design, it can be customized according to your detailed requests.
Product Paramenters
|
Model
|
YB-220/240/260/280/300/330/360/400
|
|
|
|
|
|
|
||||||
|
Raw material diam
|
<1150 mm
|
|
|
|
|
|
|
||||||
|
Control system
|
Frequency control, electromagnetic governor
|
|
|
|
|
|
|
||||||
|
Embossing roller
|
Cots,Wool Roll,Steel to Steel
|
|
|
|
|
|
|
||||||
|
Embossing type
|
Customized
|
|
|
|
|
|
|
||||||
|
Voltage
|
220V/380V
|
|
|
|
|
|
|
||||||
|
Power
|
4-8KW
|
|
|
|
|
|
|
||||||
|
Production speed
|
0-900 sheets/minute
|
|
|
|
|
|
|
||||||
|
Counting system
|
Automatic electronic counting
|
|
|
|
|
|
|
||||||
|
Printing method
|
Rubber Plate Printing
|
|
|
|
|
|
|
||||||
|
Printing type
|
Single or Double Color Printing (Optioned)
|
|
|
|
|
|
|
||||||
|
Folding Type
|
V/N/M Type
|
|
|
|
|
|
|
||||||
Our Advantages
New design automatic toilet paper embossed rewinding machine small toilet tissue paper making machine
This machine adopts international new PLC computer programming technology (system can be upgraded), frequency control, automatic electronic brake. The touch-type human-machine interface operating system uses a coreless rewind forming system. application the PLC program wind column forming technology achieves the characteristics of faster rewinding and more beautiful molding.
Product Paramenters
|
Machine Model
|
1575/1880//2400/3000/S3000
|
|
Paper Width(mm)
|
Max 1750mm/2200mm/2400mm/3000mm/3050mm
|
|
Paper Diameter(mm)
|
φ1150mm(Please Specify)
|
|
Paper Core Inner Diameter
|
φ76mm(Please Specify)
|
|
Product Diameter
|
φ50mm-180mm
|
|
Paper Backing
|
1-4layer,general chain feed or continuously variable transmission feed paper
|
|
Punch
|
2-4 Knife,Spiral Cutter Line
|
|
Hole Pitch
|
Positioning of Belt and Chain Wheel
|
|
Control System
|
PLC Control,Variable Frequency Speed Control,Touch Screen Operation
|
|
Product Range
|
Core Paper,Non Core Roll Paper
|
|
Drop Tube
|
Manual,Automatic(Optional)
|
|
Non core roll paper
|
automtic core pulling
|
|
Production Speed
|
80-280m/min
|
Manufacturing Technique
Working Principle
Four-roller automatic feeding→synchronous conveying→embossing→punching→automatic winding→cutting→packing→sealing.
1. Rewinding---The main purpose of the toilet paper rewinding machine is to process the large shaft paper into a long strip of toilet paper roll.
2. Cut the paper---The long piece of toilet paper cut by the paper cutter is cut into semi-finished products of the length
required by the customer.
3. Packaging---Packaging can be packaged in a packaging machine or manually wrapped, and the semi-finished products of the toilet paper are packaged and sealed by a sealing machine.
Four-roller automatic feeding→synchronous conveying→embossing→punching→automatic winding→cutting→packing→sealing.
1. Rewinding---The main purpose of the toilet paper rewinding machine is to process the large shaft paper into a long strip of toilet paper roll.
2. Cut the paper---The long piece of toilet paper cut by the paper cutter is cut into semi-finished products of the length
required by the customer.
3. Packaging---Packaging can be packaged in a packaging machine or manually wrapped, and the semi-finished products of the toilet paper are packaged and sealed by a sealing machine.
The facial tissue paper machine is a professional equipment for paper.
Finished product type: It can produce soft paper, boxed paper (only the different packaging machines are used, the paper machine is the same), soft paper can be used in family life, carry it, or bag Printed advertisements are used by hotels; boxed paper can be used for advertising at gas stations, KTVs and restaurants.
Finished product type: It can produce soft paper, boxed paper (only the different packaging machines are used, the paper machine is the same), soft paper can be used in family life, carry it, or bag Printed advertisements are used by hotels; boxed paper can be used for advertising at gas stations, KTVs and restaurants.
|
Machine Model
|
YB-2L/3L/4L/5L/6L/7L/10L
|
|
Product Size(mm)
|
200*200(Other Size are Available)
|
|
Raw paper weight（gsm）
|
13-16 gsm
|
|
Paper Core Inner Dia
|
φ76.2mm(Other Size are Available)
|
|
Machine Speed
|
400-500 pcs/Line/minute
|
|
Embossing Roller End
|
Felt Roller,Wool Roller,Rubber Roller,Steel Roller
|
|
Cutting system
|
Pneumatic point cut
|
|
Voltage
|
AC380V,50HZ
|
|
Controller
|
Electromagnetic speed
|
|
Weight
|
Depending on the model and configuration to the actual weight
|
Related Products
Band saw paper-cutter (toilet tissue cutting saw)
It is used with toilet paper rewinding machine, to cut into needed paper roll product in accordance with required length and width. This machine is equipped with automatic sharpening and traveling table device, maintaining stable operation performance and high production efficiency.This machine uses linear bearings for track sliding technology, to make product more smooth, more lab or-saving, while increasing the production of the new device to operate more secure.
Automatic band saw cutting machine
1. The use of LCD touch screen on the system of user-friendly operation,computer debugging,set simple.
2. Cutting process is very safe,don’t need to use,the operator’s safety index is improved.
3. This machine is suitable for roll paper,tissue paper cutting,the cutting length can be arbitrarily.
4. As long as the set number of cutting and cutting length in the text,can be shown according to cutting,paper cutting effect of partial distortion is not raising no waste.
5. The whole set of advanced,stable performance ,international materials , durable.
Remark:
Generally, the combination of the facial tissue machine and the packing machine is:
YB-2/3/4 Lines facial tissue machine + semi automatic packing machine
YB-5/6/7/10 Lines facial tissue machine + automatic log saw cutting machine + full automatic packing machine
Generally, the combination of the facial tissue machine and the packing machine is:
YB-2/3/4 Lines facial tissue machine + semi automatic packing machine
YB-5/6/7/10 Lines facial tissue machine + automatic log saw cutting machine + full automatic packing machine
Semi automatic packing machine
Paper box sealing machine
Plastic bag facial tissue packing machine
Also have Double station Plastic bag facial tissue packing hot sealing machine
Automatic log saw cutting machine
Single channel large rotary cuts
Full automatic packing machine
Automatic 3D plastic bag facial tissue packing machine
