Quick Details
-
Power:
-
Manual
-
Min. Lifting Height:
-
22m
-
Table Size:
-
2.26x0.82
-
Overall Dimensions:
-
10300*2200*1200mm
-
Weight:
-
2035 kg
-
Marketing Type:
-
New Product 2023
-
Working slope maximum:
-
2./3.
-
Turning radius (outside):
-
2.1m
-
Tire type:
-
381x127
-
(LxW) Platform dimensions:
-
2.26x0.82
-
Ground clearance (center):
-
0.1/0.02
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TDER
-
Power:
-
Manual
-
Min. Lifting Height:
-
22m
-
Table Size:
-
2.26x0.82
-
Overall Dimensions:
-
10300*2200*1200mm
-
Weight:
-
2035 kg
-
Marketing Type:
-
New Product 2023
-
Working slope maximum:
-
2./3.
-
Turning radius (outside):
-
2.1m
-
Tire type:
-
381x127
-
(LxW) Platform dimensions:
-
2.26x0.82
-
Ground clearance (center):
-
0.1/0.02

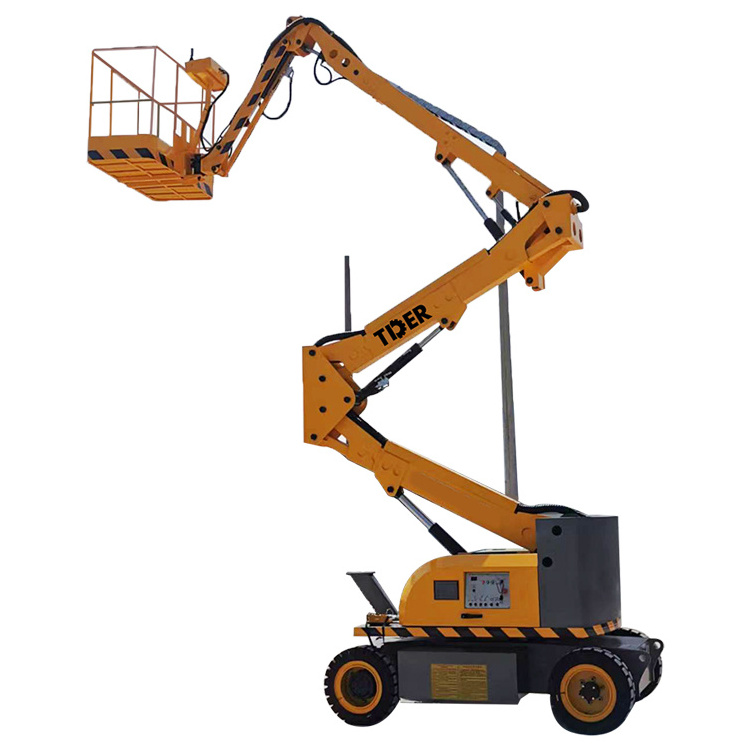

Products Description
capacity and high reliability. Four-wheel drive and oscillating axle system greatly improves off-road performance. With a
gradeability of 40%, it can adapt to all kinds of extreme access jobs. Lubrication-free boom system minimizes equipment holdingcosts. Swing-out engine tray makes regular maintenance more convenient. POST (power on self test), and maintenance alert forefficient fleet management.
Drive on all terrains.
Large ground clearance, stronger passing ability.
AC motor drive, smooth driving, great micro mobility.
8 packs of batteries, more durable and long service time.
Options & Accessories
● Working Lamp on the platform
● Load Sensing System
● AC Power to the Platform
● Air Tube to the Platform
● Outriggers
Product Paramenters
|
Model
|
|
TDWP1012RTS
|
TDWP1214RT
|
TDWP1012RT
|
TDWP1315RT
|
TDWP1618RT
|
||
|
Working height maximum
|
m
|
12
|
14
|
12
|
15
|
18
|
||
|
Platform height maximum
|
m
|
10
|
12
|
10
|
13
|
16
|
||
|
(LxW) Platform dimensions
|
m
|
2.9x1.5
|
2.9x1.5
|
3.95x1.83
|
|
|
||
|
Extension deck measurement
|
m
|
1.1
|
1.1
|
1.22 + 1.52
|
|
|
||
|
Length(stowed)
|
m
|
2.9/3.57
|
2.9/3.57
|
4.2/4.81
|
4.2/4.81
|
4.2/4.81
|
||
|
Width(stowed)
|
m
|
1.75
|
1.75
|
2.28
|
2.28
|
2.28
|
||
|
Height(stowed)
|
m
|
2.63
|
2.77
|
2.81
|
3.03
|
3.25
|
||
|
Height stowed folding guardrails
|
m
|
2.17
|
2.31
|
1.99
|
2.21
|
2.43
|
||
|
Platform height minimum
|
m
|
1.47
|
1.61
|
1.52
|
1.74
|
1.96
|
||
|
Wheelbase
|
m
|
2.2
|
2.2
|
2.84
|
2.84
|
2.84
|
||
|
Ground clearance (center)
|
m
|
0.2
|
0.2
|
0.23
|
0.23
|
0.23
|
||
|
Model
|
|
ZTQD1618
|
ZTQD1820
|
ZTQD2022
|
ZTQD2224
|
|
Working height maximum
|
m
|
18.2
|
20.0
|
22.3
|
24.1
|
|
Platform height maximum
|
m
|
16.2
|
18.0
|
20.3
|
22.1
|
|
Working radius maximum
|
m
|
15
|
15
|
18
|
18
|
|
(LxW) Platform dimensions
|
m
|
1.83x0.76
|
2.44x0.9
|
1.83x0.76
|
1.83x0.76
|
|
Length (stowed)
|
m
|
7.9
|
9.1
|
9.3
|
10.97
|
|
Width (stowed)
|
m
|
2.39
|
2.38
|
2.49
|
2.49
|
|
Height (stowed)
|
m
|
2.69
|
2.58
|
2.75
|
2.75
|
|
Wheelbase
|
m
|
2.45
|
2.40
|
3
|
3
|
|
Ground clearance (center)
|
m
|
0.43
|
0.43
|
0.43
|
0.43
|
