Quick Details
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Midea
-
Model Number:
-
VC MAX-1222
-
COP:
-
Central Air Conditioners
-
Power (W):
-
4800-79200
-
Voltage (V):
-
380~415V
-
Maximum Airflow Rate:
-
12600-66000m3/h
-
Featured Function:
-
HyperLink/ShieldBox/SuperSense
-
Recommended Room Size（square feet）:
-
110-12500
-
Product name:
-
Midea cooling and heating vrf central air conditioners
-
Power supply:
-
380-415V/3Ph/50Hz
-
Cooling capacity:
-
22.4KW-255KW
-
Power input:
-
4.8-79.2KW
-
Compressors type:
-
Scroll DC inverter
-
Refrigerant type:
-
R410A
-
Sound pressure level 3:
-
57-69dB(A)
-
Fan static pressure(Pa):
-
0-20 (default); 20-120(customized)
-
Connected indoor unit:
-
50-130% of outdoor unit capacity
Quick Details
-
Warranty:
-
2 years
-
Type:
-
Central Air Conditioners
-
Application:
-
Hotel, Outdoor, Garage, Commercial, Airports, Office Complexes, Residential Apartments, Hotels & Shopping Malls, Hospitals, Schools
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Midea
-
Model Number:
-
VC MAX-1222
-
COP:
-
Central Air Conditioners
-
Power (W):
-
4800-79200
-
Voltage (V):
-
380~415V
-
Maximum Airflow Rate:
-
12600-66000m3/h
-
Featured Function:
-
HyperLink/ShieldBox/SuperSense
-
Recommended Room Size（square feet）:
-
110-12500
-
Product name:
-
Midea cooling and heating vrf central air conditioners
-
Power supply:
-
380-415V/3Ph/50Hz
-
Cooling capacity:
-
22.4KW-255KW
-
Power input:
-
4.8-79.2KW
-
Compressors type:
-
Scroll DC inverter
-
Refrigerant type:
-
R410A
-
Sound pressure level 3:
-
57-69dB(A)
-
Fan static pressure(Pa):
-
0-20 (default); 20-120(customized)
-
Connected indoor unit:
-
50-130% of outdoor unit capacity
Product Presentation

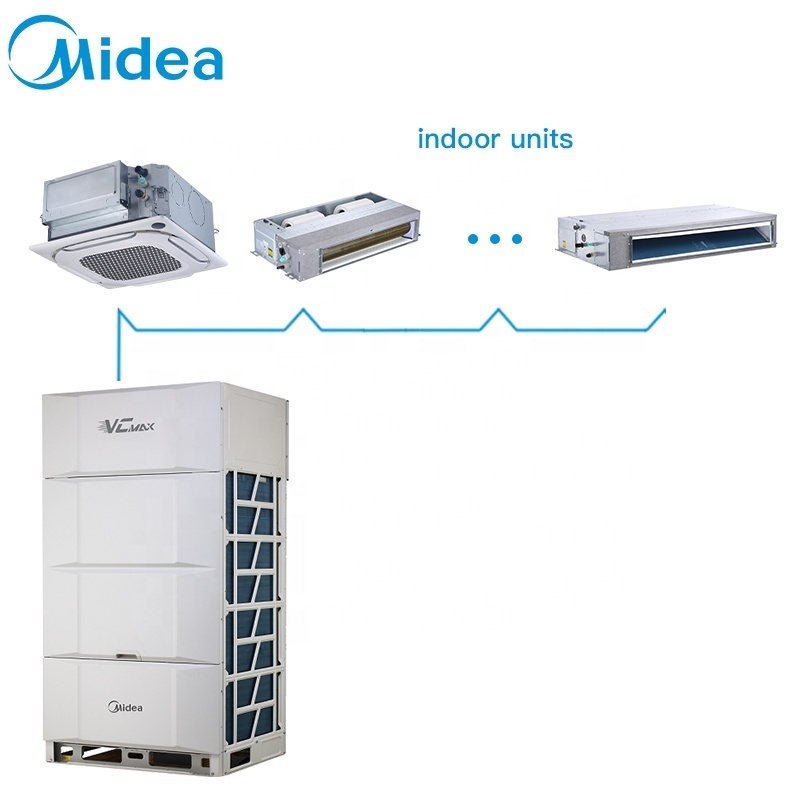

Midea VRF is a powerful system for your next HVAC project if you are looking for cost effective solutions.
Midea HVAC provides one-stop service, including VRF drawing design, model selection, installation material calculation, start up guidance etc, equipment, supplying installation material and other parts directly for your project which makes your VRF projects easier.
Why Choose Us
How to get a quick quotation?
Information needed by Midea Group’s management system before prepare quotation details for you.
1.Project Drawing, building layout, equipment BOQ.
2.Project name: building name or building type, such as xxx office project, residential house project etc.
3.Expected shipping date of this project.
4.Project type: tender or self-owned.
Product Line
|
Product name
|
|
Midea VC MAX VRF System Central Air Conditioner
|
|
|
|||
|
Power Supply
|
|
380-415/3/50(60)
|
|
|
|||
|
Cooling1
|
Capacity
|
22.4KW-255KW
|
76.4-869.7KBtu/h
|
|
|||
|
|
Power input
|
4.8-79.2KW
|
|
|
|||
|
|
EER
|
4.65-3.22KW/KW
|
|
|
|||
|
Connected
indoor unit |
Total capacity
|
50-130% of outdoor unit capacity
|
|
|
|||
|
|
Maximum quantity
|
13-64
|
|
|
|||
|
Compressors
|
Type
|
Scroll DC inverter
|
|
|
|||
|
Fan
|
Type
|
DC
|
|
|
|||
|
|
Static pressure(Pa)
|
0-20 (default); 20-120(customized)
|
|
|
|||
|
|
Airflow rate
|
12600-66000m3/h
|
|
|
|||
|
Refrigerant
|
Type
|
R410A
|
|
|
|||
|
|
Factory charge(kg)
|
7.4-15.4×3
|
|
|
|||
|
Sound pressure level 3
|
dB(A)
|
57-69
|
|
|
|||
HyperLink
Midea original communication bus chip greatly simplifies installation and saves installation cost
HyperLink communication technology supports any wiring pattern rather than just daisy chain
connection, reducing the installation cost and the possibility of incorrect connection. It has
stronger anti-interference ability, achieving communication distance up to 2000m.
connection, reducing the installation cost and the possibility of incorrect connection. It has
stronger anti-interference ability, achieving communication distance up to 2000m.
Arbitrary Topology Communication
In addition to the traditional daisy chain connection, the communication wire supports tree connection, star connection, ringconnection and so on. The wring is flexible, which greatly reduces the installation cost and has no possibility of wrong connection on site.
Super Anti-interference Capability
Special waveform restoration technology enhances anti-interference performance for more stable communication
Flexible Power Supply for Indoor Units
HyerLink 's unique communication method allows the indoor units to be powered not only by a uniform power supply, but also by individual and zone power supplies, making it particularly suitable for each shop in a large complex building, which can independently power on and off its own indoor units.
ShieldBox
IP55 fully enclosed electric control box provides all-round protection for internal electronic
components, greatly improving system RELIABILITY
components, greatly improving system RELIABILITY
Fully enclosed electronic components are isolated from the external environment to protect against
corrosion, sand, humidity, snowstorms and other harsh conditions, and prevent small animals and
insects from entering the chamber. This protects internal electronic devices and improves the
overall environmental tolerance.
corrosion, sand, humidity, snowstorms and other harsh conditions, and prevent small animals and
insects from entering the chamber. This protects internal electronic devices and improves the
overall environmental tolerance.
All Microchannel Refrigerant Cooling
All electronic components including inverter module, filter module and power module are cooled by specially designed microchannel
refrigerant to ensure that the electronic components work in the best temperature range.
refrigerant to ensure that the electronic components work in the best temperature range.
Built-in Circulating Fan
The built-in circulating fan accelerates the air flow inside the chamber, and the heat exchange is more sufficient to ensure the consistent ambient temperature inside the chamber
5 High Precision Temperature Sensors
5 high precision temperature sensors are used to accurately monitor the operation state of electronic
control under various conditions to ensure that the internal temperature of the chamber is always kept within
a stable range
control under various conditions to ensure that the internal temperature of the chamber is always kept within
a stable range
SuperSense
The status of the refrigerant is known anywhere throughout the process, ensuring high RELIABILITY
and COMFORT.
and COMFORT.
Up to 17 sensors are distributed throughout the refrigerant system, and the status of the
refrigerant can be determined throughout the process, ensuring stable operation. At the same
time, combined with the digital twin technology of the refrigerant system, a virtual sensor can be
created in the event of a physical sensor failure, so that the system does not shut down in the
event of a sensor failure, ensuring comfort.
refrigerant can be determined throughout the process, ensuring stable operation. At the same
time, combined with the digital twin technology of the refrigerant system, a virtual sensor can be
created in the event of a physical sensor failure, so that the system does not shut down in the
event of a sensor failure, ensuring comfort.
Complete Sensors
The VC MAS Series VRF is equipped with up to 17 condition monitoring sensors, combined with
built-in data models of compressors, heat exchangers and throttling components, which can analyze the operation data in real time and
monitor the refrigerant condition of the system
built-in data models of compressors, heat exchangers and throttling components, which can analyze the operation data in real time and
monitor the refrigerant condition of the system
Refrigerant Amount Diagnosis
Thanks to the complete sensors, the refrigerant running state is
clearly visible, so as to accurately diagnose the amount of
refrigerant.
clearly visible, so as to accurately diagnose the amount of
refrigerant.
Virtual Sensor Backup
In the event of a sensor failure, other sensors can automatically simulate a virtual backup sensor, so that the VRF system can continue to
operate without stopping.
operate without stopping.
Doctor M 2.0
Further upgraded DOCTOR M technology to maximize EASY SERVICE
Based on a cloud-based platform of big data and artificial intelligence, the VC MAX Series VRF can
monitor the operation status of each unit in real time, predict system faults in advance and provide
data analysis for system maintenance. The intelligent Bluetooth module and special Bluetooth
after-sales kit can further simplify maintenance and improve maintenance efficiency.
monitor the operation status of each unit in real time, predict system faults in advance and provide
data analysis for system maintenance. The intelligent Bluetooth module and special Bluetooth
after-sales kit can further simplify maintenance and improve maintenance efficiency.
Intelligent Maintenance Tool
With intelligent Bluetooth module or special Bluetooth after-sales kit, the data of the outdoor unit can be directly read and written on your smart phone without the needs of connecting PC or opening cabinet.
Real-time Monitoring of Operating Parameters
The V8 Series VRF synchronizes and stores all the unit parameters to the cloud through the data cloud gateway, including the running status, locking status, dirty blocking rate, all spot inspection parameters and so on. Users can query real-time and historical parameters on computers, tablets and mobile phones at any time.
Cloud-based Big Data Analytics
Midea V8 Series VRF transmits the system operation data to the cloud in real time through the data cloud gateway, and timely reminds the system of abnormal conditions through big data analysis, helping users to proactively avoid the risk of failure that has not yet occurred and minimize hidden problems
