Quick Details
-
Brand Name:
-
Winston
-
Model Number:
-
WSF-P1B
-
Certification:
-
ce
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Winston
-
Model Number:
-
WSF-P1B
-
Certification:
-
ce
Water level float control switch
Generous state product
Small float level switch is a simple and easy to use a structured swim-bit controllers, it is not complicated circuit, will not be disturbed, as long as the material of choice is correct, any properties of liquids, pressure, temperature can be used, it is more than the average mechanical switch is small, fast, long working life. And electronic switches compared to its ability to have a strong resistance to impact load characteristics, and its shipbuilding and paper, water heaters, test equipment, humidifiers, washing machines, refrigeration and air conditioning, dehumidifiers, Chin water machine, printing, electrical generating equipment, oil chemical industry, food industry, water treatment, electrical, industrial dyes, hydraulic machinery and other aspects have been widely used.
| Contact form | Normally open type | Normally closed type | Normally open type high voltage | Normally closed type high voltage | Veneer type double throw |
| Maximum switch power | 10W | 70W | 5W | ||
| The biggest switch voltage | DC220V AC140V | DC200V AC250V | DC175V AC125V | ||
| Minimum breakdown voltage | 250V | 580V | 200V | ||
| The biggest switch current | DC0.5A AC0.5A | DC1.0A AC1.0A | DC0.4A AC0.28A | ||
| Maximum load current | 1.0A | 2.25A | 0.5A | ||
| The largest contact impedance | 0.2 | 0.2 | 0.2 | ||
| The minimum insulation impedance | 10 | 10 | 10 | ||
| Working temperature | -40-80 | -40-80 | -40-80 | ||

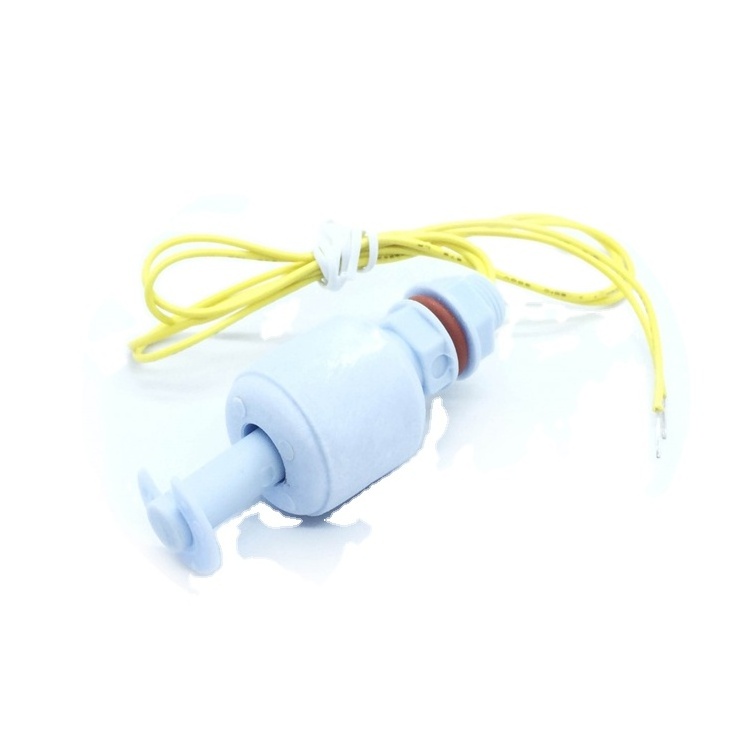

Product shows:
