operating conditions. The high quality components make these machines work very smoothly and precisel
- Product Details
- {{item.text}}
Quick Details
-
Frequency:
-
27.12MHz
-
Welding Area:
-
700*350MM
-
Dimensions:
-
1700*1100*1550MM
-
Usage:
-
embossing machine /pvc welder
-
Warranty:
-
1 Year
-
Weight (KG):
-
480 KG
-
Power (kW):
-
5
-
Delay Time/Hold Time:
-
1-60 s
-
Weld Time:
-
1-10 s
-
Upper Electrode:
-
700*700MM
-
Working Pressure:
-
800 KGS
-
Stroke:
-
200 mm
-
Operation Mode:
-
Manual + Auto
-
Power Grid Tube:
-
E3130
-
Electron Tube:
-
NL-5557
-
Certificate:
-
CE
-
Product name:
-
High Frequency Welding machine
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHAOBO
-
Voltage:
-
AC 220V/380V
-
Frequency:
-
27.12MHz
-
Welding Area:
-
700*350MM
-
Dimensions:
-
1700*1100*1550MM
-
Usage:
-
embossing machine /pvc welder
-
Warranty:
-
1 Year
-
Weight (KG):
-
480 KG
-
Power (kW):
-
5
-
Delay Time/Hold Time:
-
1-60 s
-
Weld Time:
-
1-10 s
-
Upper Electrode:
-
700*700MM
-
Working Pressure:
-
800 KGS
-
Stroke:
-
200 mm
-
Operation Mode:
-
Manual + Auto
-
Power Grid Tube:
-
E3130
-
Electron Tube:
-
NL-5557
-
Certificate:
-
CE
-
Product name:
-
High Frequency Welding machine
The price has not included the welding moulds, please contact us before placing the order.

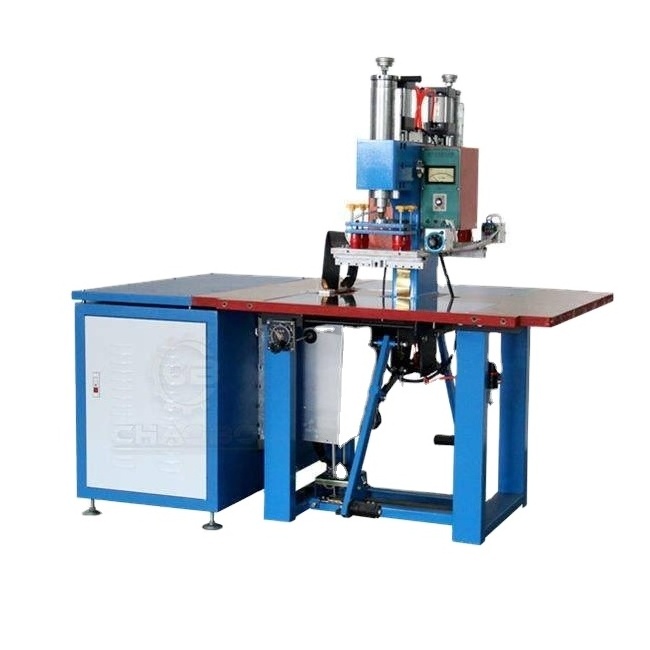

CHAOBO High Frequency Welding Machine
High Frequency PVC & PU Welding Machine only works with thermoplastics that have a high dielectric constant. In this process, an electric field is generated near the joint, the direction of which is alternated approximately twenty-seven million times a second. Every time the electric field changes, the dipole molecules of the polymer attempt to flip around to realign themselves to the new field orientation. Because this movement is impaired by inertia and friction, the molecules do not flip in unison. This constant relative movement of the molecules results in inter molecular friction which results in heat and, subsequently, melting. Radio Frequency welding typically has weld cycle times from two to five seconds and can handle parts from approximately one-thousandths inches thick to fifty-thousandths inches thick.
Main Features:
1. High sensitivity spark protection circuit, which can effectively cut off the high current output, suppression of sparks.
2. Pneumatic devices, saving time, duplex, consistent and easy to operate.
3. Square-type level adjustment, time-saving and easy transfer mode.
4. Main parts adopts imported components, Taiwan Airtac, Japan Omron, Toshiba and NL-5557.
5. Dual working stations, with welding tooling preheating function.
6. 27.12 MHz standard frequency, no radiation to Human beings and electronic devices.
7. Foot pedal control or cooperated with air compressor, stable performance.
8. The machine meet with CE requirement.
Advantages:
1. Anti-spark protection
When spark occur, the high sensitiveness spark protects electric system, cuts high frequency power immediately to protect tooling and material.
2. Jamming prevention device
Equipped with frequency stabilizer and high frequency magnetic leakage suppressor, this device provide leakage of electron magnetic radiation to avoid jamming other electrical instruments such as television and radios etc.
3. Safety device
When the welding current exceeds its limit, the overload relay functions automatically to protect oscillation tubes and rectifier. Frequency deviation caused by mis-operation is also prevented.
4. High power welder
High frequency welding machine using a special designed mechanism, the maximum pressure of foot pedal can reach up to 400KGS so as to meet most operating conditions. The high quality components make these machines work very smoothly and precisely.
5. Easy tuning and special protection circuit
The adjustable output power ensured a stable quality of the products for it could reduce the heating time when joining is being carried out.
6. Simple adjusting for the distance of the machine welding head
Adjustable distance between machine head worktable to match various welding applications.
High Frequency PVC & PU Welding Machine only works with thermoplastics that have a high dielectric constant. In this process, an electric field is generated near the joint, the direction of which is alternated approximately twenty-seven million times a second. Every time the electric field changes, the dipole molecules of the polymer attempt to flip around to realign themselves to the new field orientation. Because this movement is impaired by inertia and friction, the molecules do not flip in unison. This constant relative movement of the molecules results in inter molecular friction which results in heat and, subsequently, melting. Radio Frequency welding typically has weld cycle times from two to five seconds and can handle parts from approximately one-thousandths inches thick to fifty-thousandths inches thick.
Main Features:
1. High sensitivity spark protection circuit, which can effectively cut off the high current output, suppression of sparks.
2. Pneumatic devices, saving time, duplex, consistent and easy to operate.
3. Square-type level adjustment, time-saving and easy transfer mode.
4. Main parts adopts imported components, Taiwan Airtac, Japan Omron, Toshiba and NL-5557.
5. Dual working stations, with welding tooling preheating function.
6. 27.12 MHz standard frequency, no radiation to Human beings and electronic devices.
7. Foot pedal control or cooperated with air compressor, stable performance.
8. The machine meet with CE requirement.
Advantages:
1. Anti-spark protection
When spark occur, the high sensitiveness spark protects electric system, cuts high frequency power immediately to protect tooling and material.
2. Jamming prevention device
Equipped with frequency stabilizer and high frequency magnetic leakage suppressor, this device provide leakage of electron magnetic radiation to avoid jamming other electrical instruments such as television and radios etc.
3. Safety device
When the welding current exceeds its limit, the overload relay functions automatically to protect oscillation tubes and rectifier. Frequency deviation caused by mis-operation is also prevented.
4. High power welder
High frequency welding machine using a special designed mechanism, the maximum pressure of foot pedal can reach up to 400KGS so as to meet most operating conditions. The high quality components make these machines work very smoothly and precisely.
5. Easy tuning and special protection circuit
The adjustable output power ensured a stable quality of the products for it could reduce the heating time when joining is being carried out.
6. Simple adjusting for the distance of the machine welding head
Adjustable distance between machine head worktable to match various welding applications.
|
Model
|
CB-D5
|
CB-D8
|
CB-D10
|
CB-D12
|
|||
|
HF Power
|
5KW
|
8KW
|
10KW
|
12KW
|
|||
|
Power Input
|
8.5KVA
|
15KVA
|
18KVA
|
20KVA
|
|||
|
Frequency
|
27.12MHz
|
|
|
|
|||
|
Voltage
|
AC 220V/380V/400V/415V/450V(Customization offered)
|
|
|
|
|||
|
Driven Mode
|
Food Pedal/Air Compressor
|
|
|
|
|||
|
Stroke
|
75MM
(Customization offered)
|
|
|
|
|||
|
Working Pressure
|
0.4-0.7MPa
|
|
|
|
|||
|
Welding Time
|
1-10S(Customization offered)
|
|
|
|
|||
|
Worktable Size
|
700*350MM
(Customization offered)
|
800*500MM
(Customization offered)
|
800*500MM
(Customization offered)
|
800*500MM(Customization offered)
|
|||
|
Oscillation Tube
|
7T85RB
|
7T69RB
|
E3069RB
|
E3130RB
|
|||
|
Anti-spark Tube
|
High Sensitive NL-5557
|
|
|
|
|||
|
Recitifer
|
Silicon Diode
|
|
|
|
|||
|
Weight
|
450 KGS
|
550KGS
|
450 KGS
|
460 KGS
|
|||
|
Dimensions(MM)
|
1700*1100*1550
|
1800*1400*1550
|
1800*1400*1550
|
1800*1400*1550
|
|||
APPLICATION OF FOOT PEDAL OPERATION HIGH FREQUENCY WELDING MACHINE
PVC Bags, PVC Inflatables, Inflatable accessories(Air Fill Valves, Handles, D-ring Fitting, Patches, etc), Stretched ceiling Film and Harpoon, Pockets, Binders, Tax Discs, PVC Soft Reflectors, PVC Logos, banners, PU Leather Embossing, Hot Stamping, Heat Pressing, Sealing and Cutting, Hot Lamination, etc
PVC Bags, PVC Inflatables, Inflatable accessories(Air Fill Valves, Handles, D-ring Fitting, Patches, etc), Stretched ceiling Film and Harpoon, Pockets, Binders, Tax Discs, PVC Soft Reflectors, PVC Logos, banners, PU Leather Embossing, Hot Stamping, Heat Pressing, Sealing and Cutting, Hot Lamination, etc
Related Machines
1. Overseas site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.
Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.
Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service?
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .
