Quick Details
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1200*500*500mm
-
Power (kW):
-
11kw
-
Weight (KG):
-
100 KG
-
Name:
-
FRP spraying machine
-
Spray resin:
-
3.5-5Kg/min
-
Chopped glass fiber:
-
1-5Kg/min
-
Pressure ratio:
-
18:1
-
Curing agent ratio adjustment range:
-
0.8-3%
-
working pressure:
-
0.3-0.6Mpa
-
Size:
-
1200*500*500mm
-
weight:
-
100kg
-
Color:
-
Customised
-
Feature:
-
Easy Simple Operation
Quick Details
-
Place of Origin:
-
shandong,china
-
Brand Name:
-
JS
-
Machine Type:
-
FRP spraying machine
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1200*500*500mm
-
Power (kW):
-
11kw
-
Weight (KG):
-
100 KG
-
Name:
-
FRP spraying machine
-
Spray resin:
-
3.5-5Kg/min
-
Chopped glass fiber:
-
1-5Kg/min
-
Pressure ratio:
-
18:1
-
Curing agent ratio adjustment range:
-
0.8-3%
-
working pressure:
-
0.3-0.6Mpa
-
Size:
-
1200*500*500mm
-
weight:
-
100kg
-
Color:
-
Customised
-
Feature:
-
Easy Simple Operation
Product Description

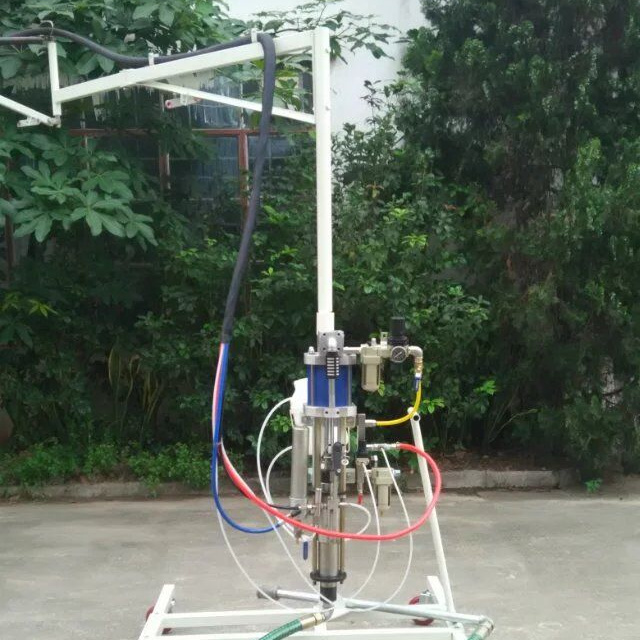

Fiberglass resin chopper roving spraying machine FRP spray machine with gun
Introduction:
FRP spraying machine (FRP spraying machine) replaces hand-made FRP, suitable for the production of FRP storage tanks, sanitary ware, double wall tanks, flat plates, cooling towers, water tanks, wind power blades, auto parts, pipeline linings and other products. Compared with traditional hand-made, it improves efficiency, reduces costs, and improves product quality. There are basically no restrictions on the shape and size of the product, and the operation is simple. The spray gun is an external mixing type and usually does not need to be cleaned.
Introduction:
FRP spraying machine (FRP spraying machine) replaces hand-made FRP, suitable for the production of FRP storage tanks, sanitary ware, double wall tanks, flat plates, cooling towers, water tanks, wind power blades, auto parts, pipeline linings and other products. Compared with traditional hand-made, it improves efficiency, reduces costs, and improves product quality. There are basically no restrictions on the shape and size of the product, and the operation is simple. The spray gun is an external mixing type and usually does not need to be cleaned.
Specification
|
Name
|
FRP spraying machine
|
|
Spray resin
|
3.5—5Kg/min
|
|
Chopped glass fiber
|
1—5Kg/min
|
|
Pressure ratio
|
18：1
|
|
Curing agent ratio adjustment range
|
0.8—3%
|
|
working pressure
|
0.3—0.6Mpa
|
|
size
|
1200*500*500mm
|
Recommend Products
Packing & Delivery
Standard export wooden case packing for
FRP spraying machine
