Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HUAHANG
-
Dimension(L*W*H):
-
Customer Requirs)
-
Weight:
-
10 KG
-
Type:
-
Air Filter cartridge
-
Material:
-
flame retardant filter paper
-
Application:
-
dust collection
-
OD:
-
289 mm
-
Feature:
-
flame retardant
-
Function:
-
Remove Dust
-
Structure:
-
Catridge
-
Model:
-
custom
-
Product name 1:
-
Replacement micron P030025 air inlet dust collector filter
-
Product name 2:
-
flame retardant Gas Turbine Air Filter element
Quick Details
-
Core Components:
-
dust collector filter
-
Efficiency:
-
99.9%
-
Porosity:
-
0.3u
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HUAHANG
-
Dimension(L*W*H):
-
Customer Requirs)
-
Weight:
-
10 KG
-
Type:
-
Air Filter cartridge
-
Material:
-
flame retardant filter paper
-
Application:
-
dust collection
-
OD:
-
289 mm
-
Feature:
-
flame retardant
-
Function:
-
Remove Dust
-
Structure:
-
Catridge
-
Model:
-
custom
-
Product name 1:
-
Replacement micron P030025 air inlet dust collector filter
-
Product name 2:
-
flame retardant Gas Turbine Air Filter element

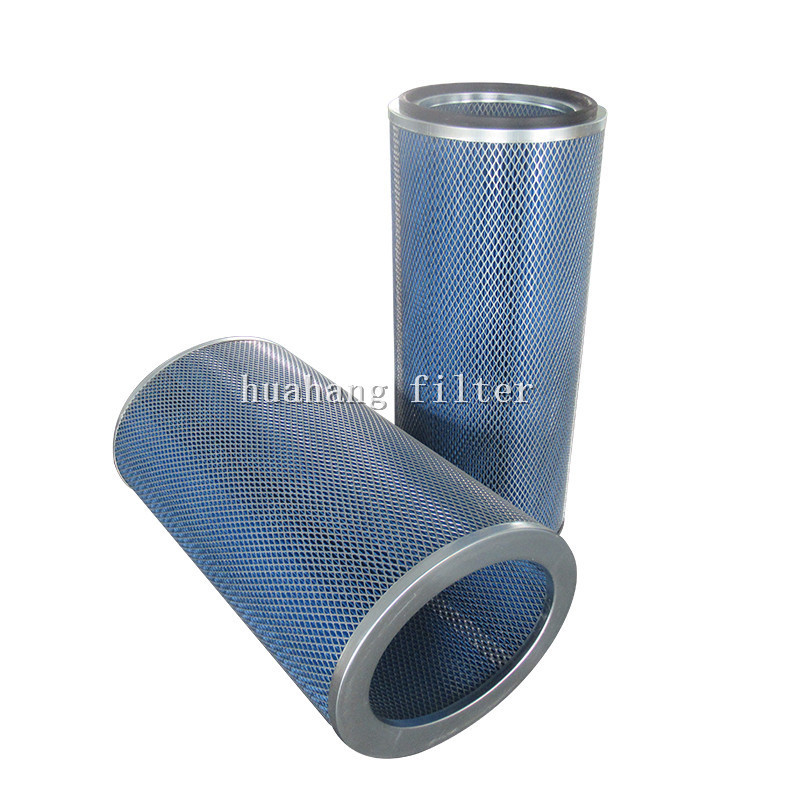

Industrial Dust Fume Mist Collector Oval Cartridge replacement Air Filter 2625115 262-5115
Flame Retardant Elliptical filter element gas turbine dust removal air inlet filter P191281
The canister filter-type 262-5115 cartridge filter includes; heavy gauge steel structural elements, one-piece closed cell neoprene gasket, and polyurethane potting compound. Top Open end cap configuration.
The media for this Torit dust collector filter is Fire Retardant Nanofiber. Fire Retardant Nanofiber is best to filter laser/plasma smoke and dust, oily weld fumes and carcinogenic fumes and should be used if you are recirculating the filtered air back into the facility. This media is chemically treated to inhibit combustion where sparks or burning particulate may reach the filter.
| Outer Diameter | 289 mm (11.38 inch) |
| Length | 660 mm (25.98 inch) |
| Media Type | Flame Retardant filter paper |
| Filter Area | 17.9 m² (192.67 ft²) |
| Inner Diameter | 203 mm (7.99 inch) |
| Inner Diameter 2 | 279 mm (10.98 inch) |
| Temperature Limit | 65 °C (149 F) |
| Liner | Yes |
| End Cap Construction | Open/Open |
| Construction | Galvanized |
| Shape | Oval |
| Pleat Height | 38 mm (1.50 inch) |
| Pleat Count | 365 |
| Anti-Static | No |
| Flame Retardant | YES |
| Food Compliant | No |
dust collector air inlet filter features:
Imported long fiber polyester filter media
High-wearing feature can improve the airflow
Washable filter media with high quality
Can extend the service life
Galvanized top & inner frame, rust resistance
Special seal elastic neoprene
Operating temperature: ≤ 135ºC
Retardant
