Quick Details
-
Model Number:
-
LSA-031
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-5~+65C (with no icing)
-
Max. Current:
-
10A
-
Product name:
-
Limit Switch
-
Color:
-
black
-
Certificate:
-
TUV
-
Function:
-
used to solar panel
-
amp:
-
10A
-
volt:
-
250V
-
Cable Standard:
-
2.5mm2 4.0mm2 6.0mm2
-
Gende:
-
1NO 1MC
-
Connecting system:
-
Crimp connection
-
Momentary:
-
Latching
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHLNP
-
Model Number:
-
LSA-031
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-5~+65C (with no icing)
-
Max. Current:
-
10A
-
Product name:
-
Limit Switch
-
Color:
-
black
-
Certificate:
-
TUV
-
Function:
-
used to solar panel
-
amp:
-
10A
-
volt:
-
250V
-
Cable Standard:
-
2.5mm2 4.0mm2 6.0mm2
-
Gende:
-
1NO 1MC
-
Connecting system:
-
Crimp connection
-
Momentary:
-
Latching
-
Certification:
-
CE
|
Model |
CSA |
CSA-001 |
CSA-003 |

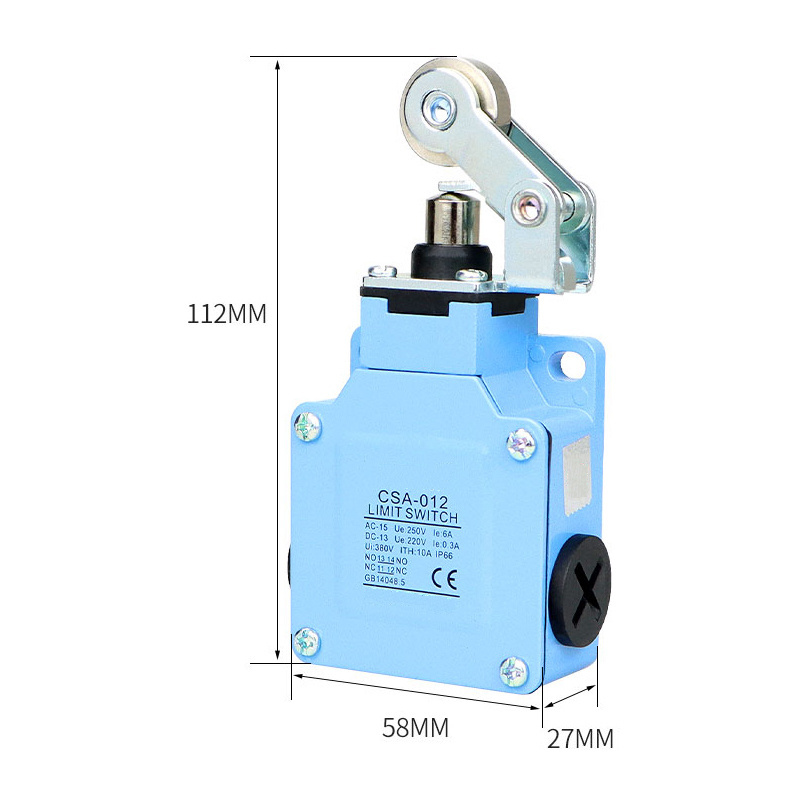

CSA-012 |
CSA-021 |
CSA-031 |
CSA-061 |
CSA-071 |
CSA-081 |
|
Operating force |
OF Max. |
800g |
800g |
800g |
400g-cm |
400g-cm |
150g |
150g |
150g |
|
Release force |
RF Min. |
400g |
400g |
400g |
100g-cm |
100g-cm |
50g |
50g |
50g |
|
Pre-travel |
PT Max. |
1.8mm |
1.8mm |
1.8mm |
20 º |
20 º |
30mm |
30mm |
30mm |
|
Travel position |
TP ± 10% |
2.0mm |
2.0mm |
2.0mm |
22.5 º |
22.5 º |
22.5 º |
22.5 º |
22.5 º |
|
Movement differential |
MD Max. |
1.2mm |
1.2mm |
1.2mm |
10 º |
10 º |
14 º |
14 º |
14 º |
|
Over travel |
OT Min. |
4.0mm |
4.0mm |
4.0mm |
75 º |
75 º |
20mm |
20mm |
20mm |
|
Total travel |
TT Min. |
5.8mm |
5.8mm |
5.8mm |
95 º |
95 º |
50mm |
50mm |
50mm |
|
Rotary indexing |
|
|
|
|
22.5 º |
22.5 º |
|
|
|
Characteristics
|
Double Break Mechanism |
INO+INC Force Break snap action |
|
Rated Voltage/Current |
10(4)A, 125, 250VAC/6(2)A, 380VAC For inductance Load, CosØ =0.4 |
|
Contact Resistance |
25mΩ max. (initial value) |
|
Insulation Resistance |
100mΩ min. (at 500VDC) |
|
Dielectric Strength |
1000VAC, 50/60 HZ for 1 minute between terminals of the same polarity |
|
1500VAC, 50/60 HZ for 1 minute between current-carrying and non-current-carrying metal parts |
|
|
1500VAC, 50/60 HZ for 1 minute between each terminal and ground |
|
|
Electrical Life |
500,000 at 10A 250VAC Resistive |
