Quick Details
-
Filling Accuracy:
-
1
-
Application:
-
Beer
-
Voltage:
-
Customer-design
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Honglin
-
Dimension(L*W*H):
-
1200*1450*1950
-
Weight:
-
200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Beer keg filling machine
-
Function:
-
Keg washing and keg filling
-
Keywords:
-
Beer keg filling machine
-
Material:
-
SUS304
-
Filling heads:
-
2 heads/1 heads
-
Dimension:
-
1200*1450*1950
-
Keg size:
-
5L-50L beer kegs
-
Rate of beer waste:
-
Less than 1%
-
Beer source pressure:
-
0.15-0.25Mpa
Quick Details
-
Machinery Capacity:
-
6000BPH, 500BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Beer
-
Filling Accuracy:
-
1
-
Application:
-
Beer
-
Voltage:
-
Customer-design
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Honglin
-
Dimension(L*W*H):
-
1200*1450*1950
-
Weight:
-
200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Beer keg filling machine
-
Function:
-
Keg washing and keg filling
-
Keywords:
-
Beer keg filling machine
-
Material:
-
SUS304
-
Filling heads:
-
2 heads/1 heads
-
Dimension:
-
1200*1450*1950
-
Keg size:
-
5L-50L beer kegs
-
Rate of beer waste:
-
Less than 1%
-
Beer source pressure:
-
0.15-0.25Mpa

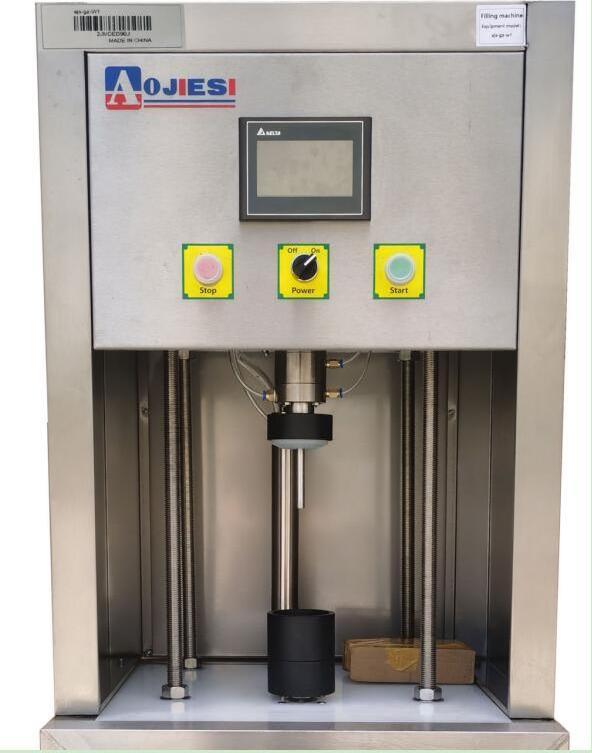

one head canning machine
Project for Glass bottle beer filling machine
|
Dimensions |
500mm×550mm×1200mm |
|
Maximum stroke of cylinder |
100mm |
|
Weight |
170kg |
|
Filling style |
Upright filling |
|
Capacity |
60-70CPH |
|
Cans suit |
330ml/500ml |
|
Beer pressure |
0.18~0.2Mpa |
|
Compressor pressure |
0.5-0.6Mpa |
|
CO 2 pressure |
0.3-0.4Mpa |
|
Cylinder pressure regulator |
0.4~0.45Mpa |
|
CO 2 pressure prepare |
0.18~0.2Mpa |
|
Compressed air pressure regulator |
0.4~0.45Mpa |
1. Check whether the wine source and gas source are connected correctly, and whether the pressure value of each pressure reducing valve meets the specified requirements.
2. Turn on the touch screen power switch. Select the filling program corresponding to the can.
3. Turn on the wine source switch, gas source switch and CO2 gas source switch.
4. Place the empty can on the positioning plate.
5. Press the start button, the filling machine will enter the preset program. After the filling is finished, the wine pouring head is raised. Just remove the can. If the filling volume is not full, the filling volume is too large, or foaming occurs, please check whether the pressure meets the requirements. Due to the different quality of wine made by different customers, relevant parameters need to be adjusted appropriately. Appropriate corrections can be made in conjunction with the introduction in the operation manual. In addition, it should be noted that the equipment must ensure sufficient CO2 pressure in the tank before filling, otherwise there will be alcohol foam.
Perform filling operations.
Jinan Honglin beer equipment has been widely used around the world, such as home brewing, small breweries, pubs, restaurants, hotels, brewpubs, bars, teaching laboratories and leisure field, brewing barley beer, wheat beer, dark beer and different shades of beer fermentation process at room temperature, to achieve the dream of the brewer.
Packaging Details:
Packing: Wooden/Veneer case for LCL;
Plastic film wrapped and iron frame fixing for FCL
We can package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
Guarantee and After-sale service:
1. 10 years warranty for the main equipment; the electronic component is 2 year.
2.Technical support by phone, email or WhatsApp/Skype around the clock.
3.Installation/Operation/ Service/ Maintenance Manual: Provided In English.
4. Engineer available to service machinery overseas.
