Quick Details
-
Brand Name:
-
OEM
-
Liquid Flow Rate:
-
0.2 ~ 0.6m/s
-
Maximum Working Pressure:
-
2.5Mpa
-
Weight:
-
8 KG
-
Dimension(L*W*H):
-
custom
-
Working Temperature Range:
-
-35℃~200℃
-
Product name:
-

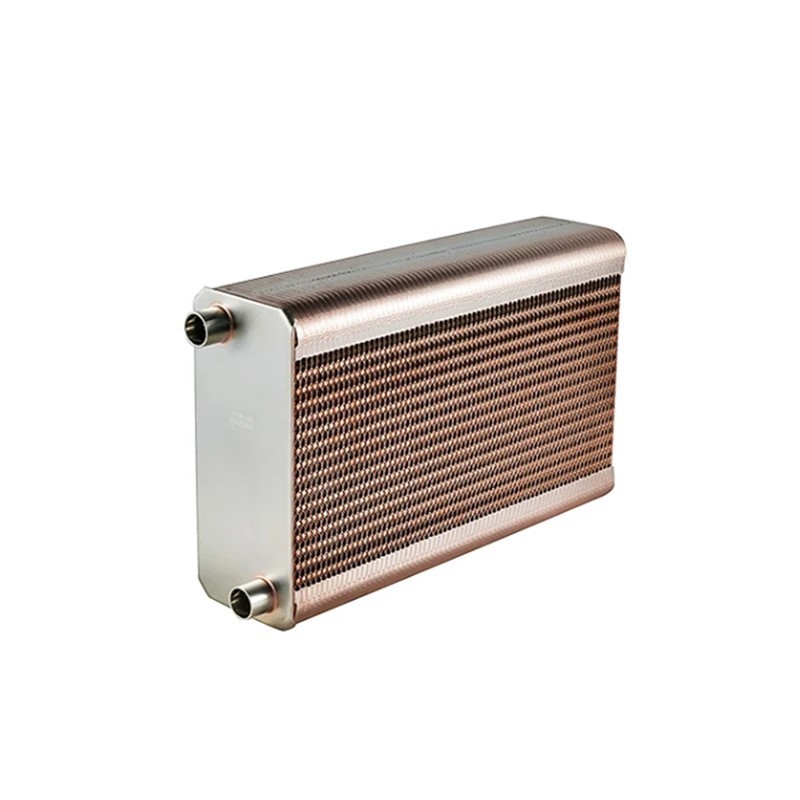

Brazed Plate Heat Exchanger
-
Usage:
-
Shipbuilding & Offshore,Power & Energy, Petrochemical,Food,HVAC area
-
Application:
-
cooling and heating
-
Type:
-
plate heat exchanger
-
Color:
-
Customer's Request
-
Material:
-
Stainless Steel
-
Packing:
-
Woodern Box
-
Features:
-
High heat transfer efficiency
Quick Details
-
Structure:
-
Plate Heat Exchanger
-
Voltage:
-
220V, 220v/380v/50Hz
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OEM
-
Liquid Flow Rate:
-
0.2 ~ 0.6m/s
-
Maximum Working Pressure:
-
2.5Mpa
-
Weight:
-
8 KG
-
Dimension(L*W*H):
-
custom
-
Working Temperature Range:
-
-35℃~200℃
-
Product name:
-
Brazed Plate Heat Exchanger
-
Usage:
-
Shipbuilding & Offshore,Power & Energy, Petrochemical,Food,HVAC area
-
Application:
-
cooling and heating
-
Type:
-
plate heat exchanger
-
Color:
-
Customer's Request
-
Material:
-
Stainless Steel
-
Packing:
-
Woodern Box
-
Features:
-
High heat transfer efficiency
Products Description
|
Product Name
|
Heat Exchanger
|
|
|
Type
|
Welded Plate Heat Exchanger
|
|
|
Other Type
|
All-welded plate heat exchanger, Semi-welded plate heat exchanger,
Plate and shell heat exchanger, Brazed plate heat exchanger
|
|
|
Application
|
Refrigeration:
used as condenser and evaporator.
HVAC:
intermediate heat exchanger used with boilers, intermediate heat exchanger for high-rise buildings, etc.
Chemical industry: soda ash industry, ammonia synthesis, alcohol fermentation, resin synthesis cooling, etc. Metallurgical industry: heating or cooling of aluminate mother liquor, cooling of steel making process, etc. Mechanical industry: various quenching fluid cooling, gearbox lubricant cooling, etc. Power industry: high-voltage transformer oil cooling, generator bearing oil cooling, etc. Paper industry: bleaching process heat recovery, heating washing liquid, etc.
Textile industry:
viscose silk alkaline solution cooling, boiling nitrocellulose fiber cooling, etc.
Food industry: cooling of fruit juice sterilization, heating and cooling of animal and vegetable oils, etc. Oil and grease process: soap base atmospheric pressure drying, heating or cooling of various processes with liquid. Centralized heating: district heating of waste heat from thermal power plants, heating water for bathing. Others: petroleum, medicine, ship, desalination, geothermal utilization. |
|
|
Can be customized according to customer needs.
|
|
|
Product Information
|
Design Parameters
|
|
|
|
Flow rate range
|
1-2000 m3/h
|
|
|
Working pressure
|
vacuum-8.2MPa
|
|
|
Use temperature
|
-195-538°C
|
|
|
Interface size
|
1"-DN300 Welding, flange, threaded and other connection forms
|
|
|
Corrosion resistance
|
welding seal without rubber gasket, a variety of metal and alloy
material selection, super corrosion resistance, longer service life.
|
|
|
Main Parameters
|
|
|
|
Maximum processing capacity
|
600m3/h
|
|
|
Maximum design pressure
|
25bar
|
|
|
Maximum temperature resistance
|
150℃
|
|
|
Plate material
|
AISI304L, 316L, Titanium, Hasetlloy, SM0254...
|
|
|
|
centralized heating and thermal power, electric energy and nuclear power, lubrication equipment, petrochemical and natural gas, coal chemical industry, etc,.
|
|
|
Technical Parameters
|
|
|
|
Minimum working temperature:
|
-160°C
|
|
|
Maximum working temperature:
|
+225℃
|
|
|
Design pressure (Mpa)
|
3.0mpa, 4.5mpa
|
|
|
Plate material
|
stainless steel 304, stainless steel 316L
|
|
|
Welding material
|
99.9% pure copper welding, nickel welding
|
|
|
Main Parameters
|
|
|
|
Capacity up to
|
2500 m3/hour
|
|
|
Pressure
|
100 bar
|
|
|
Temperature resistance
|
450°C
|
|
|
Temperature difference
|
0.5-1℃ Small temperature difference heat exchange
|
|
|
Receiver diameter
|
DN25~DN500
|
|
|
Plate thickness
|
0.8mm -1.2mm
|
|
|
Plate material
|
304, 316L, Hastelloy C276, 254SMO, nickel, etc,.
|
|
Product Show
