- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Machine Weight:
-
2900 kg
-
The max.working highly:
-
2115 mm
-
Max. pin shaft height:
-
1880 mm
-
Biggest height unloading:
-
1500 mm
-
High distance unloading:
-
430 mm
-
Bucket angular:
-
55°
-
Bucket unloading Angle:
-
30°
-
Total height:
-
1270 mm
-
From ground height:
-
90 mm
-
wheelbase:
-
685 mm
-
No bucket length:
-
1630mm
Quick Details
-
Engine Brand:
-
KOOP KD2V80
-
Power:
-
12KW
-
Brand Name:
-
SDJK
-
Place of Origin:
-
China
-
Machine Weight:
-
2900 kg
-
The max.working highly:
-
2115 mm
-
Max. pin shaft height:
-
1880 mm
-
Biggest height unloading:
-
1500 mm
-
High distance unloading:
-
430 mm
-
Bucket angular:
-
55°
-
Bucket unloading Angle:
-
30°
-
Total height:
-
1270 mm
-
From ground height:
-
90 mm
-
wheelbase:
-
685 mm
-
No bucket length:
-
1630mm
|

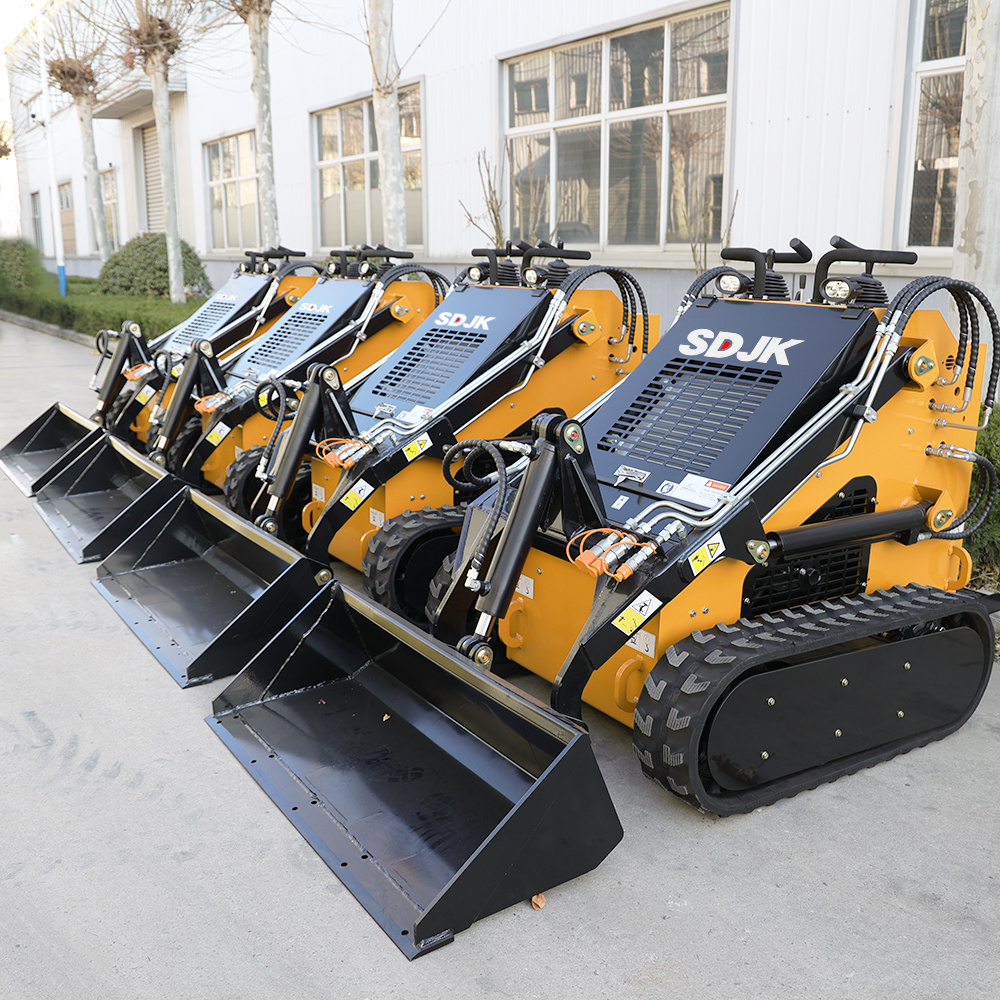

JJC60 Skid Steer Loader
|
|
|
|
|||
|
Rated operating capacity
|
850kg
|
Tipping load
|
1700kg
|
|||
|
Bucket capacity
|
0.45-0.5m3
|
Operationg weight
|
3300kg
|
|||
|
Max. travel speed
|
12km/h
|
Hydraulic pump flow
|
75L/min
|
|||
|
Fuel tank capacity
|
90L
|
Overall dimensions
|
3490×1820×2150mm
|
|||
|
Height at maximum extension
|
4000mm
|
Height to bucket hinge pin
|
3100mm
|
|||
|
Track width
|
1500mm
|
Wheelbase
|
1085mm
|
|||
|
Maker/Model
|
XINCHAI498
|
Net power
|
45KW/2500rpm
|
|||
