* Equipped with Android 11 intelligent operating system and unique UI design;
* 4-core 64-bit high-performance CPU, A55x4 architecture, maximum support 1.8GHz clock;
* High-performance image processing engine: image motion compensation, color enhancement processing, etc.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
AY-WB-065A
-
Weight:
-
50
-
Aspect Ratio:
-
16:9
-
Panel Type:
-
LCD
-
Packing Dimension:
-
1610*190*1020MM
-
Product Dimension:
-
65 inch
-
Back light:
-
D-LED
-
Luminance:
-
350cd/m²
-
Contrast Ratio:
-
5000:1
-
Response time:
-
6ms
-
Refresh:
-
60 Hz
-
Visual angle:
-
178°(H) / 178°(V)
-
Chromatic number:
-
1.07B(10bit)
-
Life time:
-
50,000 hrs
-
System version:
-
Android 11.0
-
Build-in camera:
-
13MP
Quick Details
-
Panel Size:
-
65 inches
-
Place of Origin:
-
GUA
-
Brand Name:
-
aoyismart
-
Model Number:
-
AY-WB-065A
-
Weight:
-
50
-
Aspect Ratio:
-
16:9
-
Panel Type:
-
LCD
-
Packing Dimension:
-
1610*190*1020MM
-
Product Dimension:
-
65 inch
-
Back light:
-
D-LED
-
Luminance:
-
350cd/m²
-
Contrast Ratio:
-
5000:1
-
Response time:
-
6ms
-
Refresh:
-
60 Hz
-
Visual angle:
-
178°(H) / 178°(V)
-
Chromatic number:
-
1.07B(10bit)
-
Life time:
-
50,000 hrs
-
System version:
-
Android 11.0
-
Build-in camera:
-
13MP

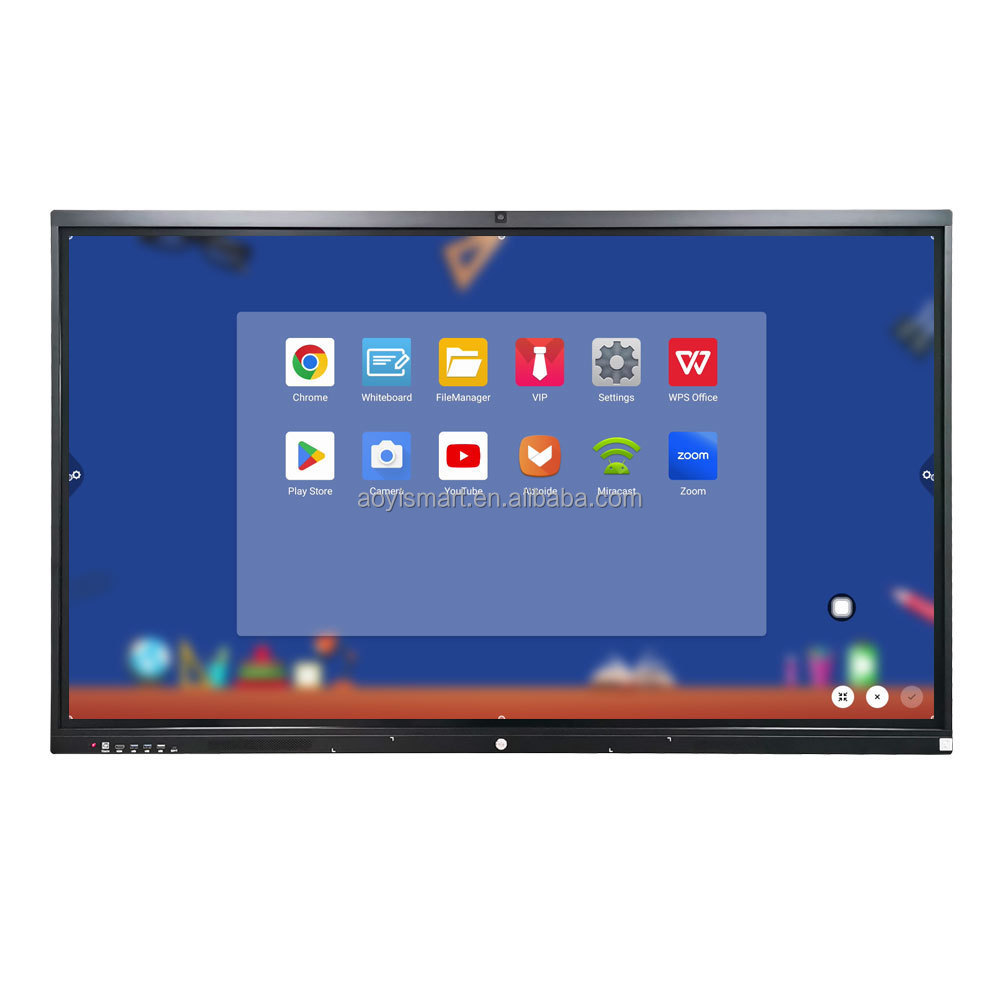

New technology 55-110 inch 20/40 point touch Interactive Whiteboard for teaching and meeting
Products Description
(1) System:
(2) Appearance:
* Simple and fashionable design, with touch output, HD input and USB input design in front, convenient operation;
* High-precision infrared touch frame, touch accuracy up to ±2mm,touch height 3.0mm, support up to 40 points touch, high sensitivity;
* The front USB interface supports Android and PC sharing;
* With OPS computer interface, can be expanded into android and computer dual system;
* High-precision infrared touch frame, touch accuracy up to ±2mm,touch height 3.0mm, support up to 40 points touch, high sensitivity;
* The front USB interface supports Android and PC sharing;
* With OPS computer interface, can be expanded into android and computer dual system;
(3) Whiteboard:
* Whiteboard handwriting ultra HD resolution, touch diameter minimum 2mm
* Support single point, multi-point writing, pen writing, picture insertion, add page, gesture erasing, zoom in and out, undo and restore, scan code sharing;
* Any interface of any channel can be annotated and saved;
* The white board selection function is rich, can move, zoom in and out, copy, change color, etc.
* Explosion-proof tempered glass, MOHS grade 7 hardness, safety assurance, optional AG anti-glare glass to make writing experience better;
* Support single point, multi-point writing, pen writing, picture insertion, add page, gesture erasing, zoom in and out, undo and restore, scan code sharing;
* Any interface of any channel can be annotated and saved;
* The white board selection function is rich, can move, zoom in and out, copy, change color, etc.
* Explosion-proof tempered glass, MOHS grade 7 hardness, safety assurance, optional AG anti-glare glass to make writing experience better;
(4) Intelligent operation
* One-click open and close android and PC dual system;
* Automatic recognition of external input signal source, easy and convenient screen switching;
* Left and right function navigation bar, convenient and quick operation of common functions;
* Automatic recognition of external input signal source, easy and convenient screen switching;
* Left and right function navigation bar, convenient and quick operation of common functions;
(5) Conference and business functions:
* Built-in WPS, welcome interface, multi-screen interaction, remote conference and other efficient meeting software;
* Built-in 2.4GHz / 5 GHz dual WiFi network card, supporting WiFi Internet access and WiFi hotspots at the same time;
* Multi-screen interaction, support multi-channel on the same screen, mirror and reverse control operation, remote photography,video, music, document sharing, picture capture, wireless remote control and other functions;
* Customize boot screen, theme and background, support automatic classification of local media player;
* Pull the function bar on the left and right side, the gesture call mode and touch control switch can be switched freely, so that the conference machine can be turned into an advertising display machine or other commercial display products;
* Built-in 2.4GHz / 5 GHz dual WiFi network card, supporting WiFi Internet access and WiFi hotspots at the same time;
* Multi-screen interaction, support multi-channel on the same screen, mirror and reverse control operation, remote photography,video, music, document sharing, picture capture, wireless remote control and other functions;
* Customize boot screen, theme and background, support automatic classification of local media player;
* Pull the function bar on the left and right side, the gesture call mode and touch control switch can be switched freely, so that the conference machine can be turned into an advertising display machine or other commercial display products;
|
Screen
|
Model
|
AY-WB-065A
|
|
|
Size
|
65"
|
|
|
Back light
|
D-LED
|
|
|
Resolution
|
3840*2160
|
|
|
Luminance
|
350cd/m²
|
|
|
Contrast Ratio
|
5000:1
|
|
|
Response time
|
6ms
|
|
|
Refresh
|
60 Hz
|
|
|
Visual angle
|
178°(H) / 178°(V)
|
|
|
Chromatic number
|
1.07B(10bit)
|
|
|
Life time
|
50,000 hrs
|
|
System
|
Chipset
|
Quad-core ARM Cortex-A55
|
|
|
System version
|
Android 11.0
|
|
|
CPU + GPU
|
A55*4 + MaliG52
|
|
|
RAM
|
4GB DDR4
|
|
|
Internal storage
|
32GB
|
|
|
Language
|
English (multi-language optional)
|
|
OPS
|
Chipset
|
Intel core i5 / i7 (optional)
|
|
|
System
|
Windows 10 pro
|
|
|
RAM
|
4GB/8GB/16GB
|
|
|
SSD
|
128GB/256GB
|
|
Video
|
TV
|
Optional
|
|
|
Video decoding
|
MPEG-2/4, AVS, H.264, H.265,TS, Realmedia…
|
|
Power supply
|
Voltage
|
100 V ~ 240 V/AC, 50/60 Hz
|
|
|
Max power
|
≦260W
|
|
|
OPS power
|
DC 19V/5A
|
|
|
Standby power consumption
|
<0.5W
|
|
|
Power switch
|
*1
|
|
Audio
|
Power
|
10W/20W（8Ω）* 2
|
|
Camera
|
Build-in camera（4k, 3840*2160）
|
13MP*1
|
|
Microphone
|
Build-in Microphone array
|
Mic*8
|
|
Input/output interface
|
VGA IN
|
*1(Optional)
|
|
|
AV IN
|
*1
|
|
|
PC-AUDIO IN
|
*1
|
|
|
RJ45 Ethernet
|
*1
|
|
|
Earphone OUT 3.5mm
|
*1
|
|
|
HDMI IN
|
*3
|
|
|
USB
|
*4
|
|
|
USB-TYPE C
|
*1
|
|
|
TF-CARD
|
*1(Optional)
|
|
|
COAX /SPDIF
|
*1(Optional)
|
|
|
Touch in
|
*1
|
|
|
Touch out
|
*1
|
|
|
WIFI
|
2.4G*1, 5G*1
|
|
|
Bluetooth
|
*1
|
|
|
Power(AC)input
|
*1
|
|
Environmental factors
|
Operating temperature
|
-10℃ ~ 50℃
|
|
|
Storage temperature
|
-20℃ ~ 60℃
|
|
|
Operating humidity
|
20% ~ 80% (non-condensing)
|
|
|
Storage humidity
|
10% ~ 90% (non-condensing)
|
|
Structure appearance
|
Product size
|
Check the specification
|
|
|
Packaging size
|
Check the specification
|
|
|
Wall-mounted hole site
|
4-M8 screw hole 400mm*400mm
|
|
|
Canning material
|
Aluminum Front frame, PC back cover
|
|
|
Shell color
|
Black Front frame, Black back cover
|
|
Accessories
|
Touch pen
|
*1
|
|
|
Remote control
|
*1
|
|
|
Wifi antenna
|
*4
|
|
|
Manual
|
*1
|
|
|
Certificate of conformity/warranty card
|
*1
|
|
|
1.5m power cable
|
*1
|
|
|
Wall mounting bracket (including screws)
|
*1(set)
|
|
|
Smart Pen
|
*1(Optional)
|
|
|
Wireless projector
|
*1(Optional)
|
Details Images
Product packaging
Installation Instructions
* Wall-mounted
Wall-mounted installation is similar to the installation of television sets, only need to fix the support to the wall
* Mobile Stand
There are many options for mobile supports, which can be matched with different mobile supports for convenient use in different scenarios
