Quick Details
-
Brand Name:
-
Hisource
-
Model Number:
-
Hi-F0420FBL-A
-
Place of Origin:
-
China
-
POE Port:
-
1 to 4 support IEEE802.3AF/AT Standard
-
Output Power:
-
15.4W/30W IEEE802.3af/at
-
Power Pin:
-
Both 1/2+,3/6- and 4/5+7/8-
-
Whole Power:
-
≤78W (52V 1.5A)
-
POE Portocol:
-
IEEE 802.3af/IEEE 802.3at
-
POE Type:
-
End-span
-
Power Distance:
-
≤250m
-
Forwarding Mode:
-
Store and forward
-
MAC Address:
-
MAC address table 1K
-
Weight:
-
1kg
-
Certification:
-
CE,RoHS&FCC
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.6G
-
Brand Name:
-
Hisource
-
Model Number:
-
Hi-F0420FBL-A
-
Place of Origin:
-
China
-
POE Port:
-
1 to 4 support IEEE802.3AF/AT Standard
-
Output Power:
-
15.4W/30W IEEE802.3af/at
-
Power Pin:
-
Both 1/2+,3/6- and 4/5+7/8-
-
Whole Power:
-
≤78W (52V 1.5A)
-
POE Portocol:
-
IEEE 802.3af/IEEE 802.3at
-
POE Type:
-
End-span
-
Power Distance:
-
≤250m
-
Forwarding Mode:
-
Store and forward
-
MAC Address:
-
MAC address table 1K
-
Weight:
-
1kg
-
Certification:
-
CE,RoHS&FCC

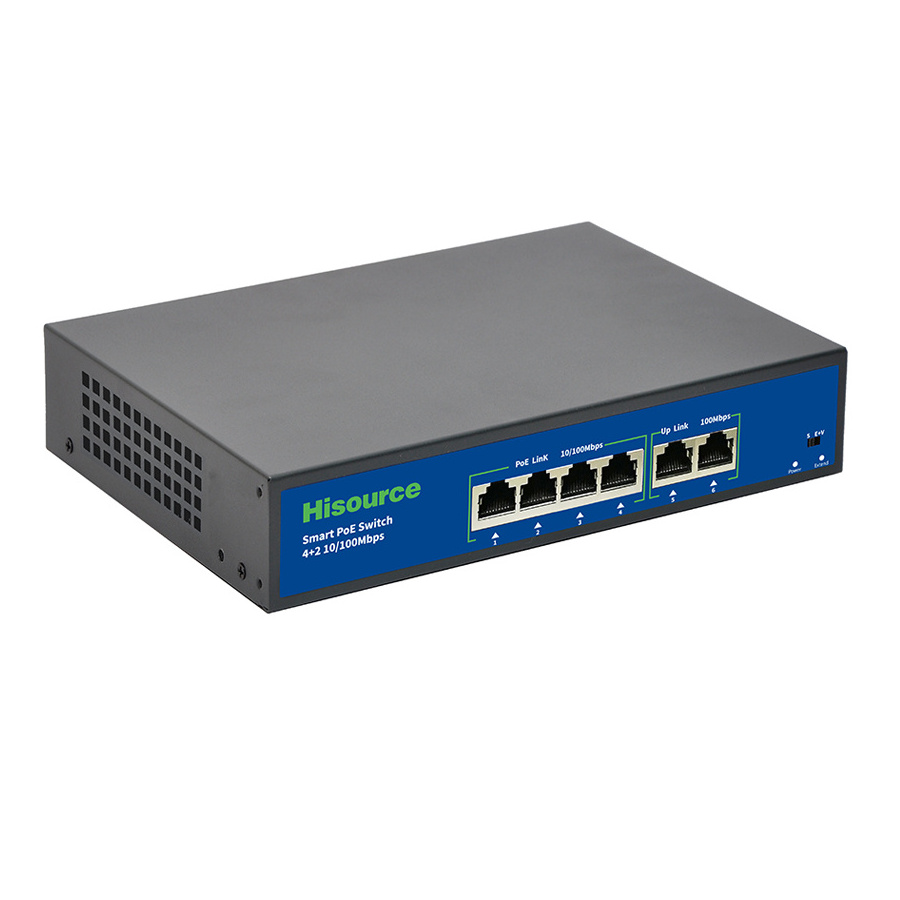

Hisource 52V ethernet 4 port poe switch 250M cctv poe switch for ip camera
Features:
² Wireless Access Point
² IP Camera
² IP Phone
² Computer Networks
² 4*10/100mbps POE port;1*10/100mbps UP Link port
² 100m Distance
² Support IEEE802.3AF/AT
² Whole Power:78W(52V 1.5A)
² All port supported by MDI/MDIX auto flip and self negotiation
² Supply 8 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
² Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
² E ach port max. power supply reached 30W.
Technicial Parameters:
|
Product |
4+2 Port POE Switch (Built-in) |
|
Model |
Hi-F0420FBL-A |
|
POE Port |
1 to 4 support IEEE802.3AF/AT Standard |
|
Output Power |
15.4W/30W IEEE802.3af/at |
|
Power Pin |
Both 1/2+,3/6- and 4/5+7/8- |
|
Whole Power |
≤78W (52V1.5A) |
|
POE Portocol |
IEEE 802.3af/IEEE 802.3at |
|
POE Type |
End-span |
|
Power Distance |
≤250m |
|
Network Standard |
IEEE 802.3, IEEE802.3u,802.3x,802.3af/at |
|
Network Medium |
10/100BASE-TX:5 class and above non shielded twisted pair |
|
Data Distance |
≤250m |
|
Switch Capability |
1.6Gbps |
|
Forwarding Mode |
Store and forward |
|
Forwarding Rate |
10BASE-T:14880PPS/port 100BASE-tx:14800pps/port |
|
MAC Address |
MAC address table 1K |
|
Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
|
LED Indicator |
Each port occupied 1 LINK/ACT.100Mbps, POE Status Indicator, Whole power indicator |
|
Working Environment |
Working temperature:-10°-- 55°C |
|
Weight |
1kg |
|
Size |
200mm*120mm*40mm(L*W*H) |
Hisource 52V ethernet 4 port poe switch 250M cctv poe switch for ip camera
Product Details:
Hisource 52V ethernet 4 port poe switch 250M cctv poe switch for ip camera
Hisource 52V ethernet 4 port poe switch 250M cctv poe switch for ip camera
