Quick Details
-
Voltage:
-
380v / 220v
-
Dimension(L*W*H):
-
5000*1600*2000/2100mm
-
Warranty:
-
One Year
-
Weight:
-
3500Kg/4000Kg
-
Power:
-
22KW
-
Suitable Material:
-
PET/PVC/PP/PS/PLA
-
Forming Speed:
-
10-35 Stroke/minute
-
Max Forming W*L*H(mm):
-
470*260*50/70
-
Material Thickness(mm):
-
0.1-1.5
-
Max Width of Material(mm):
-
510
-
Heating Power(KW):
-
16
-
Motor Power(KW):
-
6
-
Air Pressure:
-
0.6-0.8MPa
-
Water Consumption:
-
Tap water or circulating cold water
-
Name:
-
new plastic cup lid machine
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Bocheng
-
Model Number:
-
DB-470A/B
-
Voltage:
-
380v / 220v
-
Dimension(L*W*H):
-
5000*1600*2000/2100mm
-
Warranty:
-
One Year
-
Weight:
-
3500Kg/4000Kg
-
Power:
-
22KW
-
Suitable Material:
-
PET/PVC/PP/PS/PLA
-
Forming Speed:
-
10-35 Stroke/minute
-
Max Forming W*L*H(mm):
-
470*260*50/70
-
Material Thickness(mm):
-
0.1-1.5
-
Max Width of Material(mm):
-
510
-
Heating Power(KW):
-
16
-
Motor Power(KW):
-
6
-
Air Pressure:
-
0.6-0.8MPa
-
Water Consumption:
-
Tap water or circulating cold water
-
Name:
-
new plastic cup lid machine

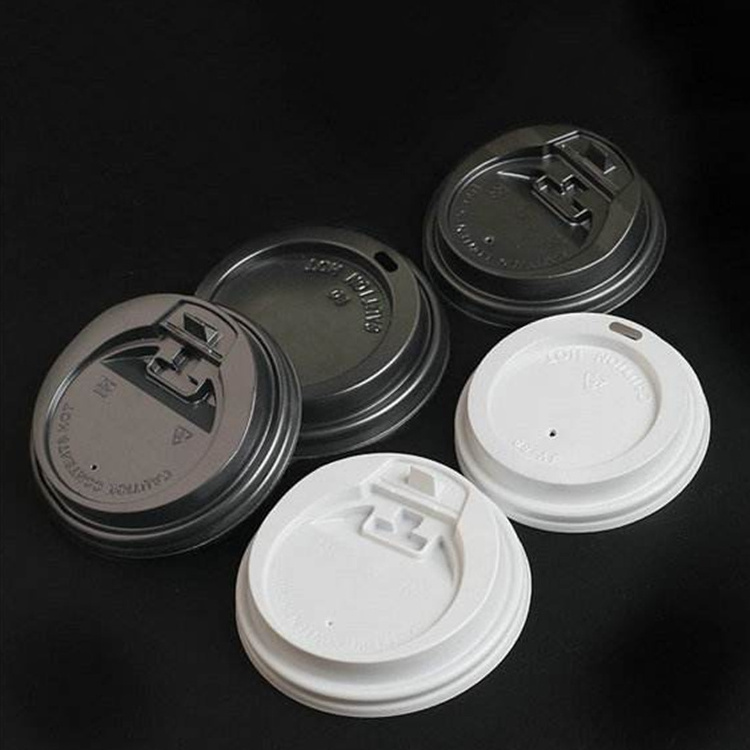

DB-470A/B ruian high quality automatic pp forming machine / cup lids forming machine new plastic cup lid machine price Material
|
Automatic Thermoforming machine: ·Speed reducer, main-rotating connection, main shaft are on line (to decrease driving error) for mechanical transmission. ·Sensor controls are adopted in pneumatic system .PLC control makes the whole machine run smoothly, keeps synchronous stability during the products are to be packed in multi-labor, long- distance . ·Main motor non-stop speed regulating, the travel adjustable at will, simple and convenient to change the mold, manipulator traction, stable running. ·Positive pressure formation in the equipment. (Puffing forming)
If any items you are interested,Warmly welcome you feel free to contact us. |
|
Model |
DB-470A |
DB-470B |
|
Punch Frequency |
10-35 Stroke/min |
10-35 Stroke/min |
|
Material |
PP, PS, PET, PVC, PLA. |
|
|
Max. Forming Length |
260mm |
260mm |
|
Max. Forming Width |
470mm |
470mm |
|
Max. Forming Depth |
50mm |
70mm |
|
Heating Power |
16KW |
16KW |
|
Motor Power |
6KW |
6KW |
|
Total Power |
3-phase 4-line 380V 50Hz (220V 60Hz) 22kw |
|
|
Water Consumption |
0.3m ³ /h (Tap water or recycle water) |
0.3m ³ /h (Tap water or recycle water) |
|
Air Pressure |
0.5-0.8(mpa) |
0.5-0.8(mpa) |
|
Exhaust Volume |
≥ 0.6 m ³ /min |
≥ 0.6 m ³ /min |
|
Pressure of water supply |
0.2MPa |
0.2MPa |
|
Machine overall size ( L×W×H ) |
5000×1600×2000mm |
5000×1600×2000mm |
|
Packing Size ( L×W×H ) |
5200×1800×2300mm |
5200×1800×2300mm |
|
The maximum width of material |
510mm |
510mm |
|
Weight |
3500KG |
4000KG |
