Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GL-iNet
-
Supplier Type:
-
Original
-
CPU:
-
ESP32-D0WD
-
Memory:
-
SRAM 520KB + PSRAM 8MB / NOR Flash 4MB
-
Protocol:
-
IEEE 802.11 b/g/n
-
Wi-Fi Speed:
-
2.4GHz (150Mbps)
-
Ethernet Port:
-
1 x 10/100M
-
LEDs:
-
BLE / Internet / Power
-
Ble version:
-
V4.2, BLE
-
Power Input:
-
5V/1A DC Input or PoE
-
Operating Temperature:
-
0~40°C (32~104°F)
-
Dimension / Weight:
-
57 x 57 x 25mm, 53.6g
Quick Details
-
Chipset:
-
ESP32-D0WD IoT module
-
Application:
-
IoT application
-
Model Number:
-
GL-S10
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GL-iNet
-
Supplier Type:
-
Original
-
CPU:
-
ESP32-D0WD
-
Memory:
-
SRAM 520KB + PSRAM 8MB / NOR Flash 4MB
-
Protocol:
-
IEEE 802.11 b/g/n
-
Wi-Fi Speed:
-
2.4GHz (150Mbps)
-
Ethernet Port:
-
1 x 10/100M
-
LEDs:
-
BLE / Internet / Power
-
Ble version:
-
V4.2, BLE
-
Power Input:
-
5V/1A DC Input or PoE
-
Operating Temperature:
-
0~40°C (32~104°F)
-
Dimension / Weight:
-
57 x 57 x 25mm, 53.6g
Bluetooth IoT Gateway
Built-in Bluetooth Module
Support MQTT and PoE Power Supply
Built with ESP32
Support MQTT and PoE Power Supply
Built with ESP32
Specification
|
Product name
|
BLE IOT Gateway
|
|
Interface
|
1 x Ethernet port
3 x LEDs 1 x Reset Button |
|
CPU
|
ESP32-D0WD
|
|
Memory / Storage
|
SRAM 520KB + PSRAM 8MB / NOR Flash 4MB
|
|
Protocol
|
IEEE 802.11 b/g/n
|
|
Wi-Fi Speed
|
150Mbps (2.4GHz)
|
|
Ethernet Speed
|
1 x 10/100Mbps
|
|
LEDs
|
Power / BLE / Network
|
|
Bluetooth
|
V4.2, BLE
|
|
Power Input
|
Micro USB, 5V/1A or PoE Power Input
|
|
Power Consumption
|
Normal Operating Consumption: <0.5W / Operating at Full Capacity: <1.5W
|
|
Operating Temperature
|
0~40°C (32~104°F)
|
|
Storage Temperature
|
-20~70°C (-4~158°F)
|
|
Dimension / Weight
|
57 x 57 x 25mm / 53.6g
|
Product Description

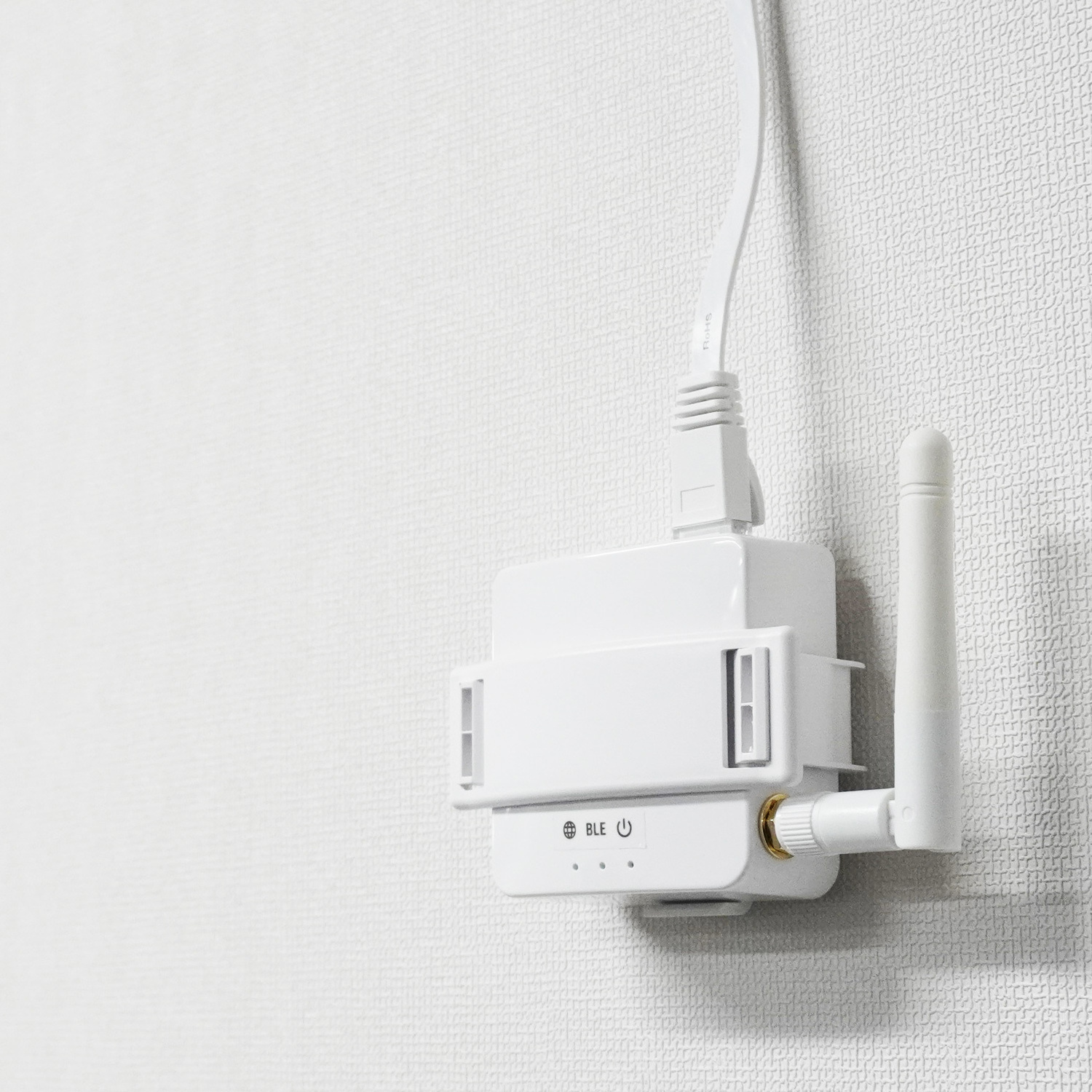

GL-S10 is an ESP32-powered BLE to MQTT IoT gateway. It can be used to facilitate communication between your beacons and servers,such as MQTT broker and AWS IoT. GL-S10 also comes with an optional beacon for testing and a tool app for fast and easy deployment.
How GL-S10 Works
The GL-S10 is an IoT gateway device that supports BLE and Wi-Fi, providing a cost-effective solution for transmitting BLE
broadcast data to the cloud. BLE supports GAP and GATT certification. GL-S10 can use Wi-Fi as a Station to connect to a parent route or can connect to the Internet through a WAN port. It has a built-in standard MQTT Client that can connect to any standard MQTT Servers to forward incoming BLE messages to the cloud server.
broadcast data to the cloud. BLE supports GAP and GATT certification. GL-S10 can use Wi-Fi as a Station to connect to a parent route or can connect to the Internet through a WAN port. It has a built-in standard MQTT Client that can connect to any standard MQTT Servers to forward incoming BLE messages to the cloud server.
ESP32-D0WD Chipset
ESP32 is a single-chip integrated with 2.4GHz Wi-Fi and BLE. It features ultra-high RF performance, with high stability, versatility, and ultra-low power consumption. GL-S10 is suitable for a wide variety of application scenarios.
A Minimalist IoT Communication Solution
GL-S10 is a compact BLE IoT gateway that supports Wi-Fi and MQTT protocols. It is designed to be an essential, low power consumption and low-cost transmission device.
Application Scenarios
Asset Management
Environmental Monitoring
Indoor Position Tracking
