Quick Details
-
Voltage:
-
380V/440V
-
Dimension(L*W*H):
-
3250x3150x900mm
-
Warranty:
-
One year
-
Application:
-
Woodworking
-
Weight (KG):
-
760 KG
-
Power (kW):
-
5.5
-
Max.Cutting Height at 90°(mm):
-
90mm
-
Max.Cutting Height at 45°(mm):
-
60mm
-
Max. Length of Workpiece (mm):
-
3200mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Excel Luck
-
Usage:
-
Woodworking
-
Voltage:
-
380V/440V
-
Dimension(L*W*H):
-
3250x3150x900mm
-
Warranty:
-
One year
-
Application:
-
Woodworking
-
Weight (KG):
-
760 KG
-
Power (kW):
-
5.5
-
Max.Cutting Height at 90°(mm):
-
90mm
-
Max.Cutting Height at 45°(mm):
-
60mm
-
Max. Length of Workpiece (mm):
-
3200mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ISO9001

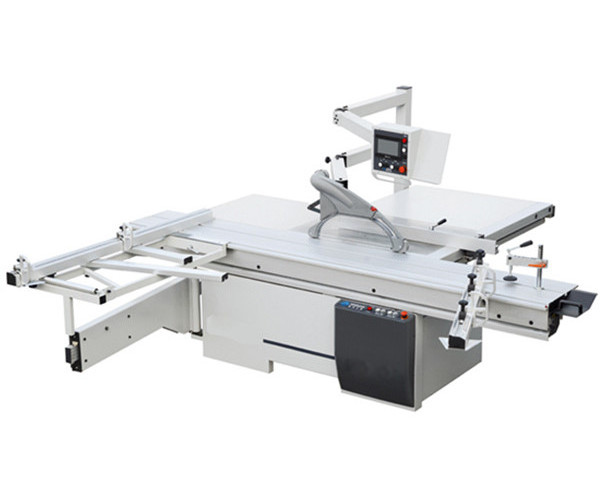

2800mm 3000mm 3200mm Woodworking wood board precision sliding table panel saw with support swing arm sawing machine
Parameter:
|
Model |
MJ6128 |
MJ6130 |
MJ6132 |
|
Dimension of sliding table |
2800x375mm |
3000x3375mm |
3200x3375mm |
|
Cutting length |
2800mm |
2800mm |
2800mm |
|
Height of cut |
80mm |
80mm |
80mm |
|
Saw blade diameter |
300mm |
300mm |
300mm |
|
Main spindle diameter |
30mm |
30mm |
30mm |
|
Speed of main saw spindle |
4500/6000rpm |
4500/6000rpm |
4500/6000rpm |
|
Tilting saw blade |
0-45degree |
0-45degree |
0-45degree |
|
Main motor power |
4kw/5.5kw |
4kw/5.5kw |
4kw/5.5kw |
|
Scoring saw blade diameter |
120mm |
120mm |
120mm |
|
Speed of scoring saw blade |
7000-8000r/min |
7000-8000r/min |
7000-8000r/min |
|
Scoring spindle diameter |
20mm |
20mm |
20mm |
|
Scoring motor |
0.75kw |
0.75kw |
0.75kw |
