Quick Details
-
Brand Name:
-
XHWellSpec
-
Model Number:
-

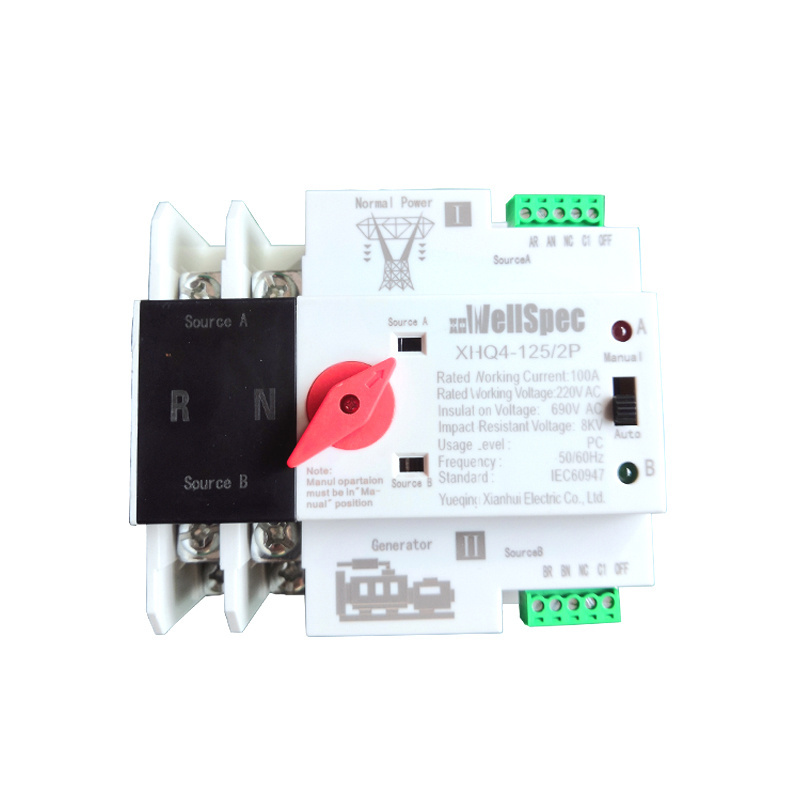

XHQ4-125/2P 100A
-
Certificate:
-
CE(LVD-2014/35/EU+EMC-2014/30/EU)
-
Rated Working Current:
-
100A
-
Rated Working Voltage:
-
AC 220V
-
Insulation Voltage:
-
AC 690V
-
Impact-Resistant Voltage:
-
8kV
-
Transfer Time:
-
≤30ms
-
Usage Level:
-
PC
-
Frequency:
-
50/60Hz
-
Operating Mode:
-
Automatic switching and reset
-
Standard:
-
IEC60947
Quick Details
-
Phase:
-
2P
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XHWellSpec
-
Model Number:
-
XHQ4-125/2P 100A
-
Certificate:
-
CE(LVD-2014/35/EU+EMC-2014/30/EU)
-
Rated Working Current:
-
100A
-
Rated Working Voltage:
-
AC 220V
-
Insulation Voltage:
-
AC 690V
-
Impact-Resistant Voltage:
-
8kV
-
Transfer Time:
-
≤30ms
-
Usage Level:
-
PC
-
Frequency:
-
50/60Hz
-
Operating Mode:
-
Automatic switching and reset
-
Standard:
-
IEC60947
1. Application:
Mainly t he transfer switch can be used as circuit control switch, test equipment switch, motor control switch and main command control switch, and transfer switch for electric welding machine, etc. The transfer switch is generally used for converting electrical control lines and electrical measuring instruments in AC 50HZ, DC 220V and below circuits with voltage up to 380V and below. For example, XHQ4-125/4P 125A conversion switches are commonly used to convert and measure three-phase voltages. The combination switch is suitable for AC 50HZ, voltage up to 380V and below, DC voltage up to 220V and below. It is used to manually switch on or off the circuit infrequently, replace the power supply or load, and the carrying current is generally large.
2. Features:
A. Small size but high switching capacity.
B. Built-in high performance MCU provides precise transfer power supply.
C. Energy-saving, driven by instantaneous impulse coil.
D. Cost-effective, improved circuit design consumes very low power.
E. Flame retardant cover provides good fire, heat and weather resistance.
F. Withstand the impact voltage: 1KV.
3. Electrical Parameters
| Items | Specifications |
| Model | XHQ4-125/2P 100A |
| Rated Current | 63/80/100/125A |
| Frequency | 50/60Hz |
| Rated Working Voltage | AC 220V 50/60Hz |
| Insulation Voltage | AC 690V |
| Impact-Resistant Voltage | 8kV |
| Transfer Time | ≤30ms |
| Usage Level | PC |
| Operating Mode | Auto and Manual |
| Transfer Way | Automatic switching and reset |
| Warranty | 1 Year |
| Efficiency | 97% |
| Electrical Life | 100K times at least |
| Standard | IEC60947 |
| Outline Size | 110mm X 100mm X 80mm |
| Weight | 540g |
| Certificate | CE, ISO |
XHQ4-125/2P 100A Switch low voltage switches with multiple circuits. Multiple moving contacts are overlapped on the shaft. When the shaft rotates, moving contacts are connected or broken with static contacts in turn to switch circuits. An electrical appliance that changes a circuit from one set of connections to another.
4. Testing Items:
Accelerated aging test;
Inductive Voltage Test, DC Resistance Test, Safety Test etc.
