Quick Details
-
Place of Origin:
-
Anhui, China
-
Material:
-
Metal
-
Size:
-
7inch, 490*350*540mm
-
Capacity:
-
96 wells
-
Product Name:
-
GT-96 PCR Analyzer
-
Power:
-
100-220VAC, 50/60Hz, 1000VA
-
Average Heating Rate:
-
≥3.0℃/s
-
Average Cooling Rate:
-
≥2.0℃/s
-
Temperature Control Accuracy:
-
±0.1℃
-
Temperature Accuracy:
-
±0.1℃
-
Temperature Uniformity:
-
±0.1℃
-
Temperature Range:
-
4℃-100℃
-
Light Source:
-
LED Light
Quick Details
-
Warranty:
-
1 Year
-
Brand Name:
-
Wayeal
-
Model Number:
-
GT-96
-
Place of Origin:
-
Anhui, China
-
Material:
-
Metal
-
Size:
-
7inch, 490*350*540mm
-
Capacity:
-
96 wells
-
Product Name:
-
GT-96 PCR Analyzer
-
Power:
-
100-220VAC, 50/60Hz, 1000VA
-
Average Heating Rate:
-
≥3.0℃/s
-
Average Cooling Rate:
-
≥2.0℃/s
-
Temperature Control Accuracy:
-
±0.1℃
-
Temperature Accuracy:
-
±0.1℃
-
Temperature Uniformity:
-
±0.1℃
-
Temperature Range:
-
4℃-100℃
-
Light Source:
-
LED Light
Optical System
Product Description

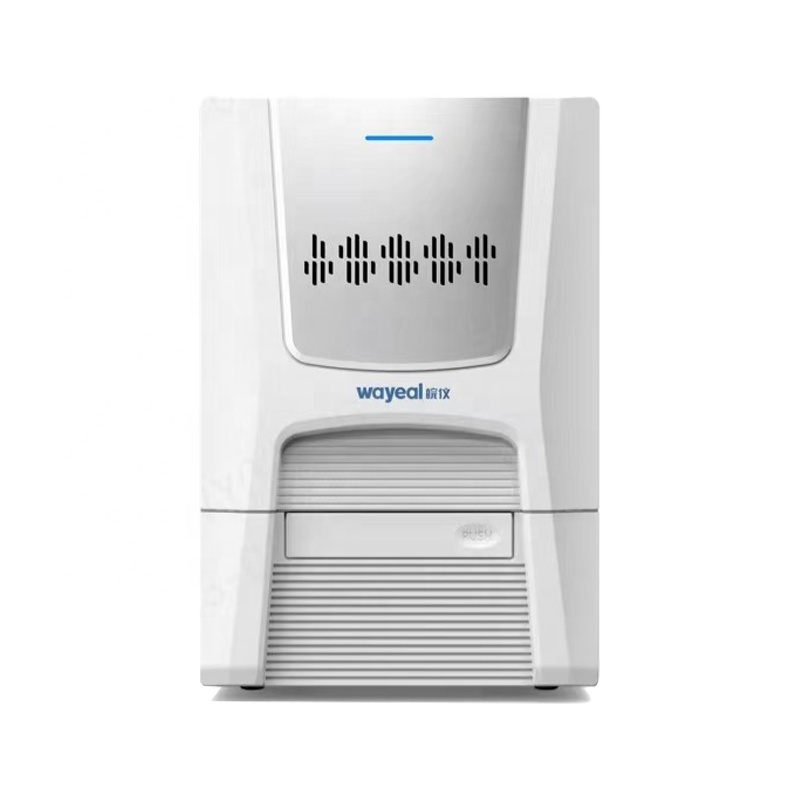

Wayeal GT96 96 well pcr plates Real-time PCR Systems Instrument Fluorescence Quantitative PCR Detector PCR Analyzer
Production Introduction
The GT-96 Real-Time Fluorescence PCR instrument is a multiplexed fluorescence PCR analysis technology platform. The maximum throughput of the product is up to 96 samples, enabling five-channel fluorescence detection. The combination of sophisticated optical systems and clever algorithms greatly eliminates fluorescence interferences. It is also equipped with a strong thermal module, which makes the temperature control accuracy, precision, and fluctuation level reach the industry leading level. Professional software design gives you more options.
Product Paramenters
|
Product Name
|
GT-96 Real Time PCR
|
|
Size
|
490*350*540mm
|
|
Power
|
100-220VAC, 50/60Hz, 1000VA
|
|
Temperature Control Accuracy
|
±0.1℃
|
|
Temperature Uniformity
|
±0.1℃
|
|
Temperature Range
|
4℃-100℃
|
|
Light Source
|
LED Light
|
|
Repeatability of Fluorescence Intensity
|
CV≤2%
|
|
Uniformity of Fluorescence Intensity
|
CV≤5%
|
|
Linearity of Fluorescence Intensity
|
|r|≥0.990
|
|
Detection Channels
|
5 Channels
|
|
|
F1:FAM,SYBR Green F2:VIC, JOE
F3:TAMRA,CY3, NED F4:ROX,TEXAS Red F5:CY5 |
|
Reaction System
|
10-100μL
|
|
Kinetics Scope
|
1-10
10
copies
|
|
Sample Linearity
|
|r|≥0.990
|
|
Quantitative Repeatability
|
CV≤2%
|
|
Quantification Error
|
±2%
|
|
Stability
|
CV≤5%
|
|
Experiments
|
Absolute quantification,
Relative quantification,
Genotyping,
Dissolution curve
|
Product Performance
Optical System
1. LED excitation lightsource,maintenancefree,
2. Large field of view low distortion objective, reduce edge effect, no need to scan shooting, fast reading plate;.
3. High speed low noise camera, improve signal sensitivity;.
4. Five color fluorescence channel to realize five-channefluorescence detection;
Temperature Control System
1. Rapid heating and cooling rates: semiconductor refrigeration technology
2. Good temperature uniformity: multi-temperature zone precision control
3. High temperature control precision: multiple temperature sensor feedback
Software Analysis System
1. More open experimental procedure settings
2. Comprehensive analysis and export function.
3. More secure database systems 4. Rich reportingcapabilities 5. Free selection of channel and setting
6. One PC controls several instruments 7. Fully updated correction algorithm
1. LED excitation lightsource,maintenancefree,
2. Large field of view low distortion objective, reduce edge effect, no need to scan shooting, fast reading plate;.
3. High speed low noise camera, improve signal sensitivity;.
4. Five color fluorescence channel to realize five-channefluorescence detection;
Temperature Control System
1. Rapid heating and cooling rates: semiconductor refrigeration technology
2. Good temperature uniformity: multi-temperature zone precision control
3. High temperature control precision: multiple temperature sensor feedback
Software Analysis System
1. More open experimental procedure settings
2. Comprehensive analysis and export function.
3. More secure database systems 4. Rich reportingcapabilities 5. Free selection of channel and setting
6. One PC controls several instruments 7. Fully updated correction algorithm
