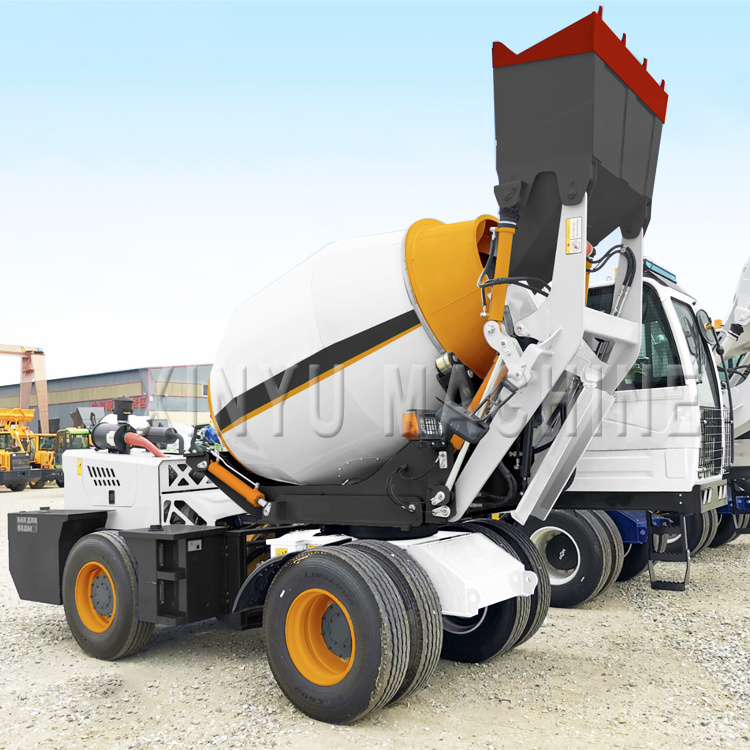

automatic loading mobile concrete mixer/3 yard concrete mixer for sale

automatic loading mobile concrete mixer/3 yard concrete mixer for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $22000

≥3 Sets

US $20000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 7800 x 2600 x 3300 mm

Power:: 78kw

Product name:: self loading concrete mixer

Reclaiming capacity:: 3600 L

Working cycle period:: 10~15min

Discharge Way:: automatic discharging

Water supply mode:: Water Pump

Engine type:: Yunnei

Driving type:: 4x4

Color:: Buyer's Choice

Keywords:: Concrete Mixer

Certification:: CE/ISO

Quick Details

Place of Origin:: Henan, China

Brand Name:: XINYU

Weight:: 7500 kg

Dimension(L*W*H):: 7800 x 2600 x 3300 mm

Power:: 78kw

Product name:: self loading concrete mixer

Reclaiming capacity:: 3600 L

Working cycle period:: 10~15min

Discharge Way:: automatic discharging

Water supply mode:: Water Pump

Engine type:: Yunnei

Driving type:: 4x4

Color:: Buyer's Choice

Keywords:: Concrete Mixer

Certification:: CE/ISO

Product Description

China concrete truck remote control self loading cement mixer sale Information:

1. JBC2.6 Self Loading Concrete Mixer Truck is a kind of unique mixer, which combines concrete mixer, transit mixer and wheel loader.

2.The mixer drum can rotate 270°and be locked automatically by a hydraulic brake.

3. The drum is rotated by a gear pump and a cycloidal hydraulic motor.

4. The discharge chute can be tilted and rotate 90°. It is also removable so that concrete is to anywhere directly. Two sets of chute extenders are provided as standard.

5. Stirring device is mainly composed of mixing drum and auxiliary support components.

6. In the process of feeding and transport, mixing barrel forward, concrete moving along the blade into the discharge, the mixing tube inversion, the concrete to discharge along the blade.

Item	JBC1.5	JBC3.5	JBC2.6	JBC4.0
Mixing Volume	1500 L	3500 L	2600 L	4000 L
Geometric Volume	2300 L	5300 L	3600 L	6100 L
Concrete Output	1500 L/ batch , 4 Batches/ hr	3500 L/ batch , 4 Batches/ hr	2600 L/ batch , 4 Batches/ hr	4000 L/ batch , 4 Batches/ hr
Water Tank Volume	2 x 200 L	2 x 280 L	2 x 250 L	2 x 330 L
Chassis Structure	Articulated Structure	Articulated Structure	Articulated Structure	Articulated Structure
Chassis Brake Type	Air Brake	Air Brake	Air Brake	Air Brake
Driver's Cab	Air-conditioner Inside	Air-conditioner Inside	Air-conditioner Inside	Air-conditioner Inside
Max. Drive Speed	30 km/h	30 km/h	30 km/h	30 km/h
Mini Turning Radius	4750 mm	5300 mm	5300 mm	4000 mm
Max. Payload	3,600 kg	8,500 kg	6,200 kg	9,500 kg
Operating Weight	4,500 kg	7,500 kg	6,500 kg	8,500 kg
Overall Size	6400 x 2550x 2450 mm	7800 x 2700 x 3300 mm	7800 x 2700 x 3300 mm	7500 x 2850x 3600 mm

Main Features of concrete mixer truck:

1) China TOP Brand YUCHAI Diesel Engine as standard Power, Cummins Engine is Optional

2) The Articulated Structure Chassis Design for shorter turning radius

3) The mixing unit could slew hydraulically up to 270°

4) Bottom Hydraulic Lifting Mechanism for easy discharge of material.

5) 500 Liter Teeth Fitted Shovel completed with Hydraulic Opening Gate

6) Excavator Style Spacious Driver's Cab with A/C and Fire Extinguisher inside

7) Off Road Industrial Steel Wire Line Tyre (Model:16/70-20, PR14)

8) Rear Location of Water Tank
