Quick Details
-
Model Number:
-
T-15-DPA
-
Dimension:
-
W 697 x D431x H420 mm
-
Power Supply Mode:
-
Other
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
400W/450W/500W
-
Connection Type:
-
Other
-
Format:
-
N/A
-
Product name:
-
Single 10" 12" 15" two-way speaker with DSP
-
Power:
-
400W/450W/500W
-
Peak power:
-
1600W/1800W/2000W
-
Nominal impedance:
-
4 homs
-
Max SPL(Pmax@1m):
-
124dB(Peak:130dB)/127dB(Peak:133dB)
-
Sensitivity(1W@1m):
-
98dB/100dB
-
Frequency response:
-
65Hz-20KHz/55Hz-20KHz/50Hz-20KHz
-
Item Name:
-
Single 15-inch two-way active speaker with DSP
-
Function:
-
Build in 550watts Class D amplifier and DSP Processor
-
Application:
-
Small outdoor performances sound reinforcement, theater, auditorium
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Thinuna
-
Model Number:
-
T-15-DPA
-
Dimension:
-
W 697 x D431x H420 mm
-
Power Supply Mode:
-
Other
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
400W/450W/500W
-
Connection Type:
-
Other
-
Format:
-
N/A
-
Product name:
-
Single 10" 12" 15" two-way speaker with DSP
-
Power:
-
400W/450W/500W
-
Peak power:
-
1600W/1800W/2000W
-
Nominal impedance:
-
4 homs
-
Max SPL(Pmax@1m):
-
124dB(Peak:130dB)/127dB(Peak:133dB)
-
Sensitivity(1W@1m):
-
98dB/100dB
-
Frequency response:
-
65Hz-20KHz/55Hz-20KHz/50Hz-20KHz
-
Item Name:
-
Single 15-inch two-way active speaker with DSP
-
Function:
-
Build in 550watts Class D amplifier and DSP Processor
-
Application:
-
Small outdoor performances sound reinforcement, theater, auditorium
Thinuna T-15-DPA Single 10" 12" 15" two-way speaker active profesional full range speaker built-in class D digital amplifier
Products Description
FEATURES:
Thinuna T series is a compact, high output and superior-performance active full-range waterproof speaker. It is equipped with a well-designed 15" caliber low distortion, large dynamic and high power woofer, and built-in optimally designed demodulation/heat dissipation aluminum short-circuit ring. It adopts a compression tweeter with 3" ferrite magnets. The entire speaker system can withstand 4 ohms 500W input power, whether placed horizontally or vertically, providing uniform and flat coverage.
The enclosure is made of high quality 18mm thick multi-layer birch plywood, and the surface is treated with black wear-resistant water paint. Equipped with a DSP amplifier, 550W switching power supply Class D digital amplifier, the effect exceeds traditional technology. The inner surface also uses a dust-proof mesh design to protect the drive unit more effectively, and the overall appearance is designed in a extremely professional style.

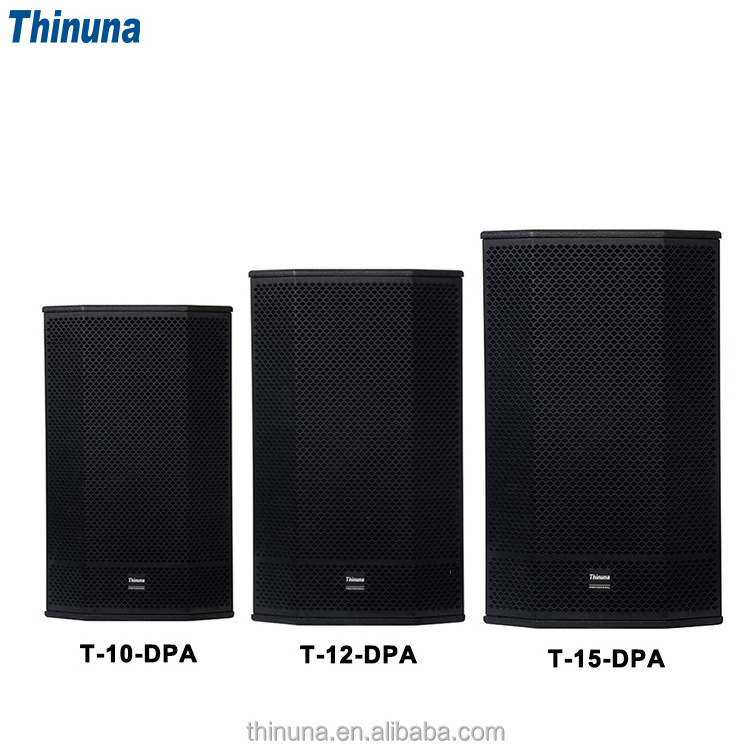

Available models without waterproof function:T-10-DPA / T-12-DPA / T-15-DPA
The enclosure is made of high quality 18mm thick multi-layer birch plywood, and the surface is treated with black wear-resistant water paint. Equipped with a DSP amplifier, 550W switching power supply Class D digital amplifier, the effect exceeds traditional technology. The inner surface also uses a dust-proof mesh design to protect the drive unit more effectively, and the overall appearance is designed in a extremely professional style.
Available models without waterproof function:T-10-DPA / T-12-DPA / T-15-DPA
Specification
|
Model
|
T-15-DPA
|
|
|
Speaker part
|
|
|
|
Speaker unit
|
Woofer: 15" Ferrite unit;Tweeter: 3" Ferrite unit
|
|
|
Frequency response
|
50Hz-20KHz (-10dB)
|
|
|
Speaker impedance
|
4Ω
|
|
|
Sensitivity(1W/1m)
|
100dB
|
|
|
Max SPL (1m, free field)
|
127dB (peak: 133dB)
|
|
|
Power (AES)
|
Rated power: 500W; Max power: 1000W; Peak power:2000W
|
|
|

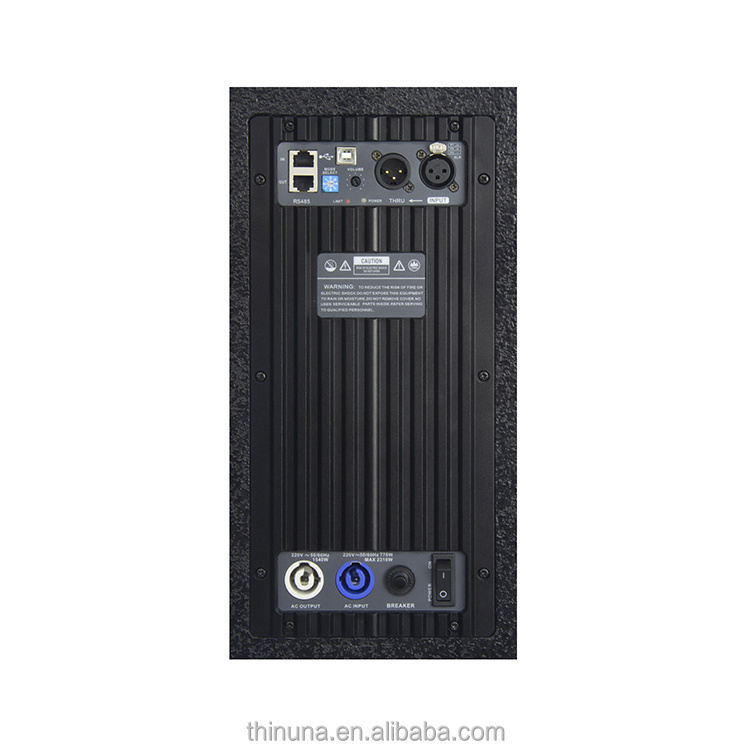

Amplifier part
|
|
|
|
Output power
|
550W
|
|
|
Max input level
|
8V (+20dB)
|
|
|
Frequency response
|
20Hz-20KHz
|
|
|
SNR
|
>90dB
|
|
|
Input impedance
|
1.2V/20ΚΩ
|
|
|
Harmonic distortion
|
<0.5(1KHz-9dB)
|
|
|
Voltage range
|
-170V-270V50/60Hz switching power supply mode
|
|
|
Amplifier type
|
Class D
|
|
|
DSP type
|
Crossover, equalization,delay, compressionlimit, mute and other functions
|
|
|
Protection
|
Overload,overvoltage, undervoltage,overheat, short circuit, output DC
|
|
|
General
|
|
|
|
Dimensions(H xW xD)
|
697mm(H)*431mm(W)*420mm(D)
|
|
|
Net weight
|
31kg
|
|
