Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Pressure:
-
Hydraulic
-
Structure:
-
Tube
-
Weight:
-
26
-
Dimension(L*W*H):
-
40*54*17cm
-
Maximum pressure:
-
31.5 Mpa
-
Maximum Flow Rate:
-
65 L/min
-
Name:
-
CDB15 Manual Hydraulic Valve
-
Locating system:
-
Spring return,detent Control
-
Spool Function:
-
O, A, Y
-
Flow rate:
-
65L/min
-
Max Pressure:
-
31.5 Mpa
-
Oil port size:
-
G1/2, G3/8
-
Oil way:
-
Parallel circuit, power beyond option
-
Control Way:
-
Manual & pneumatic & electric control
-
Widely Use:
-
Construction machinery hydraulic system
-
Feature:
-
adopts parallel or oil circuit
Quick Details
-
Warranty:
-
1 Year
-
Valve type:
-
Directional Control Valve
-
Brand Name:
-
Hy-Waloil
-
Place of Origin:
-
Jiangsu, China
-
Pressure:
-
Hydraulic
-
Structure:
-
Tube
-
Weight:
-
26
-
Dimension(L*W*H):
-
40*54*17cm
-
Maximum pressure:
-
31.5 Mpa
-
Maximum Flow Rate:
-
65 L/min
-
Name:
-
CDB15 Manual Hydraulic Valve
-
Locating system:
-
Spring return,detent Control
-
Spool Function:
-
O, A, Y
-
Flow rate:
-
65L/min
-
Max Pressure:
-
31.5 Mpa
-
Oil port size:
-
G1/2, G3/8
-
Oil way:
-
Parallel circuit, power beyond option
-
Control Way:
-
Manual & pneumatic & electric control
-
Widely Use:
-
Construction machinery hydraulic system
-
Feature:
-
adopts parallel or oil circuit
Product Overview

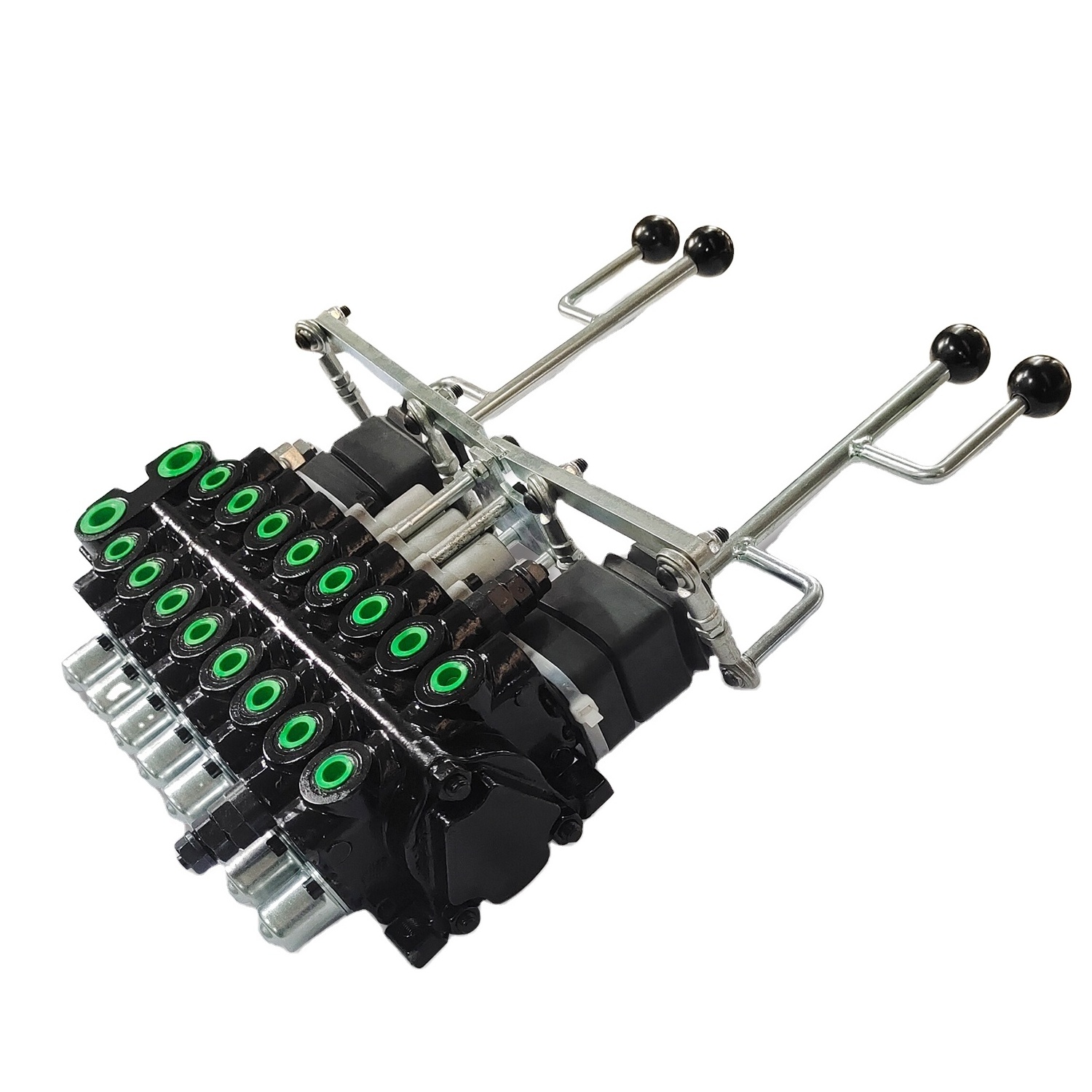

CDB15 Series Monoblock Sectional Control Valve
CDB15 series split-type multiway valve has introduced European advanced technology, including compact structure, high pressure resistance, long service life, 1-14 connections, and two hydraulic systems of middle opening and middle closing.
CDB15 each piece of valve body can be according to customer requirements to increase the overflow valve, filling oil valve. The control methods include manual control, pneumatic control, electro-hydraulic control and flexible shaft remote control.
The valve is widely used in construction machinery, sanitation machinery, mining machinery and other machinery hydraulic system.
8 CDB15 Advantage
8 Spool Sectional Hydraulic Control Valve
Solid Construction
Excellent Performance
Spring Return
Inner Check/Relief Valve
Excellent Performance
Spring Return
Inner Check/Relief Valve
Characteristic
* High-efficiency: The relief valve range is up to 3600 PSI
and the maximum flow is up to 11 GPM.
* Spring Return: All spools standard come with spring return,
which can return to the neutral position.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Model No
|
CDB15 Series
|
|
2
|
Tem.rang
|
-20~+80 ℃
|
|
3
|
Vics.rang
|
10~400 mm2/S
|
|
4
|
Packing size
|
55*45*20cm
|
|
5
|
NW/ GW
|
26kg / 31kg
|
|
6
|
Valve construction
|
monoblock construction, 1-14 levers, we also can make more levers as your requirement.
|
|
7
|
Advantage
|
100% QC testing, R&D capacity
|
|
8
|
|
The valve is widely used in construction machinery, sanitation machinery, mining machinery and other machinery hydraulic system.
|
PRODUCT CONFIGURATION
Forklift
Sanitation vehicles
S
mall loaders
SIMILAR PRODUCTS
|
Item
|
P120 Series
|
DCV80 Series
|
P80 Series
|
P40 Series
|
|||
|
Working Section
|
1-4 Spools
|
1-5 Spools
|
1-6 Spools
|
1-7 Spools
|
|||
|
Flow Rate
|
160 L/min
|
80-100 L/min
|
80 L/min
|
40 L/min
|
|||
|
Spring Side Options
|
T(Spring return), W(Detent control)
|
|
|
|
|||
|
Spools Function
|
O, P, Y, M
|
O, P, Y, A
|
O, P, Y, A
|
O, P, Y, M
|
|||
|
Pressure
|
160-315 bar
|
|
|
|
|||
|
Nominal Diameter
|
G3/4, G1, M27*2
|
G1/2, G3/4, M22*1.5
|
G1/2, G3/4
|
G1/2, G3/4
|
|||
|
Optional Control
|
Manual, Penumatic, Electric and penumatic control, hydraulic and electric control
|
|
|
|
|||
