Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Liyuan
-
Model Number:
-
PS1
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
220V/50HZ
-
Structure:
-
Other
-
Cable Length:
-
N/A
-
Outlet Size:
-
N/A
-
Power:
-
1.5KW
-
motor:
-
Electric
-
Model Numbe:
-
PS1
-
Usage:
-
Agriculture Irrigation
-
Application scope:
-
Submersible Puming Water
-
Certification:
-
CE Certificate
-
Standard or Nonstandard:
-
Standanrd
-
Type:
-
Accessories
-
Theory:
-
Centrifugal
-
Advantage:
-
High Performance
-
Product name:
-
Submersible Water Pump
-
Material:
-
pc
Quick Details
-
Application:
-
Developing World Water Solutions, Drinking water treatment, Family Homes, Irrigation and Agriculture, Water Treatment Solutions
-
Pressure:
-
Other
-
Voltage:
-
220V/50HZ
-
Warranty:
-
1 year
-
Brand Name:
-
Liyuan
-
Model Number:
-
PS1
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
220V/50HZ
-
Structure:
-
Other
-
Cable Length:
-
N/A
-
Outlet Size:
-
N/A
-
Power:
-
1.5KW
-
motor:
-
Electric
-
Model Numbe:
-
PS1
-
Usage:
-
Agriculture Irrigation
-
Application scope:
-
Submersible Puming Water
-
Certification:
-
CE Certificate
-
Standard or Nonstandard:
-
Standanrd
-
Type:
-
Accessories
-
Theory:
-
Centrifugal
-
Advantage:
-
High Performance
-
Product name:
-
Submersible Water Pump
-
Material:
-
pc
| Model | Relay Power(A) | Operating Voltage Range(Support customization) | Frequency | Application Mode | Pump Start Value(BAR) | Control method | Pump head(Max Pressure) Requirements | Use the highest tap position | Diameter (mm) | Packing Number(PCS) | ||||||||
| PS01A | 16A | AC85-265V | 50/60Hz |
Intelligent
supercharging |
1.0 not adjustable | Reed switch + reed switch | At least 1.0bar above the start value | Vertical use height 10 meters | 25 | 12 | ||||||||
| 1.6 not adjustable | Vertical use height 16 meters | |||||||||||||||||
| 2.2 not adjustable | Vertical use height 22 meters | |||||||||||||||||
| 2.8 not adjustable | Vertical use height 28 meters | |||||||||||||||||
| 1.0-2.5/1.5-3.0bar adjustable | Vertical use height 25 meters | |||||||||||||||||
| Vertical use height 30 meters | ||||||||||||||||||
| PS01A | 16A | AC85-265V | 50/60Hz |
Intelligent
supercharging |
1.0 not adjustable | Reed switch + reed switch | At least 1.0bar above the start value | Vertical use height 10 meters | 25 | 12 | ||||||||
| 1.6 not adjustable | Vertical use height 16 meters | |||||||||||||||||
| 2.2 not adjustable | Vertical use height 22 meters | |||||||||||||||||
| 2.8 not adjustable | Vertical use height 28 meters | |||||||||||||||||
| 1.0-2.5/1.5-3.0bar adjustable | Vertical use height 25 meters | |||||||||||||||||
| Vertical use height 30 meters | ||||||||||||||||||

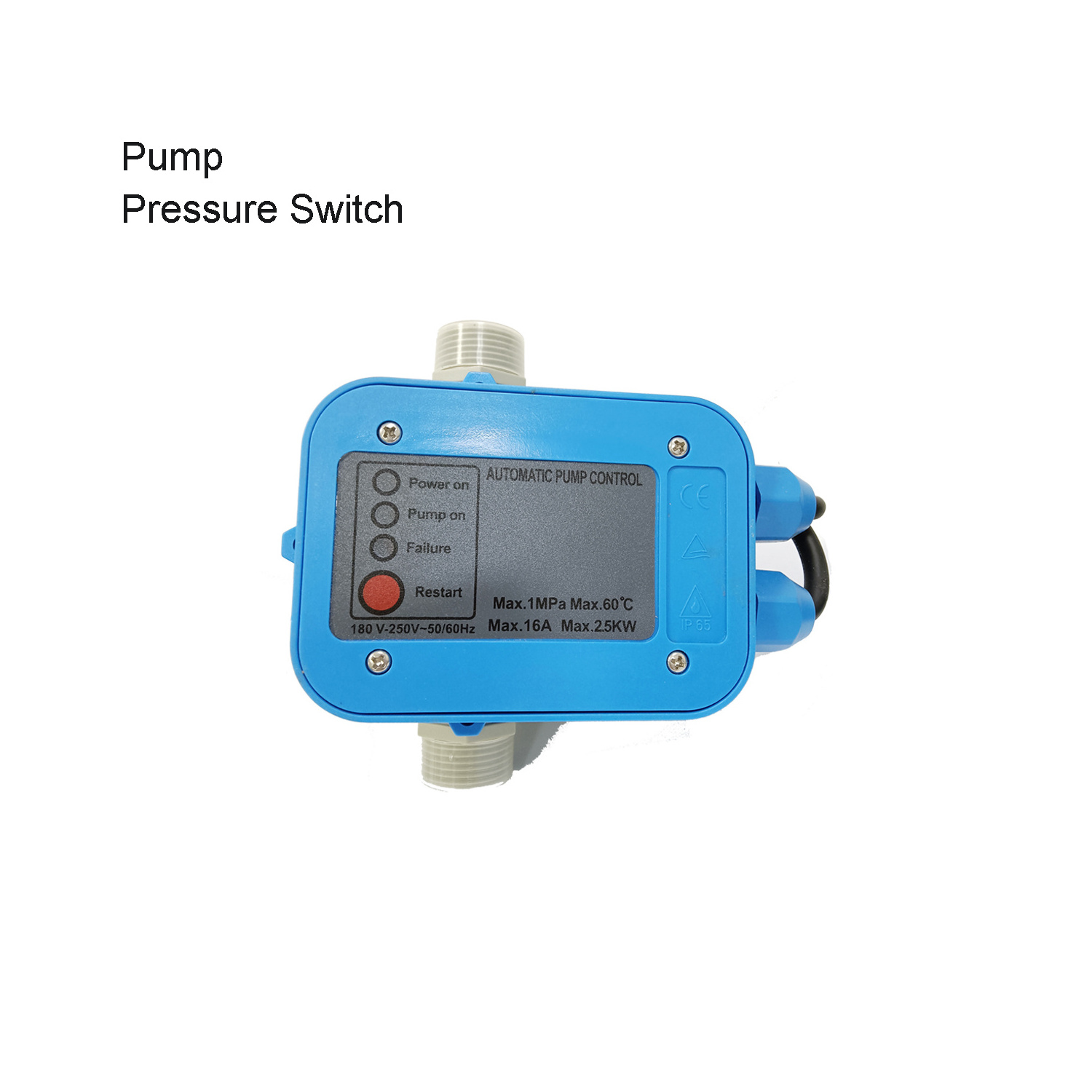

Pump Pressure Switch is the electronic intelligent water pump control equipment, which can completely replace traditional strong power control system composed of pressure tank, pressure switch, water shortage protection device, check value and four ports, also saving time and material when installation. Control cabinet with complete isolation of electric part and pipe and high sealing make controller own characteristics of safety, environmental protection, long life, stable performance, less maintenance and no noise, which is better than traditional pressure and preferred by family.
Q: Do you accept OEM?
A: Yes, we accept OEM.
Q: What is your delivery time?
Answer: Sample delivery time is 7 days, order delivery time is 30 days.
Q: Do you accept sample orders?
A: Yes, we accept sample orders.
