SUCA electric cable crimping tool battery terminal crimping tool battery lug crimper

SUCA electric cable crimping tool battery terminal crimping tool battery lug crimper

FOB Reference Price: Get Latest Price

≥20 Pieces

US $298

≥500 Pieces

US $277

≥1000 Pieces

US $256

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Time/crimp:: 8 s(CU 150 mm2)

Oil storage capacity:: 166 ml

Max pressure:: 70 Mpa

Max stroke:: 42 mm

Max output:: 125 KN

Range of crimping:: CU 400 mm2 / AL 300 mm2

Crimping dies:: 16 ,25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400

Quick Details

Model:: SC400A1

Weight:: 6.5 Kg

Size:: 420*270*72 mm

Time/crimp:: 8 s(CU 150 mm2)

Oil storage capacity:: 166 ml

Max pressure:: 70 Mpa

Max stroke:: 42 mm

Max output:: 125 KN

Range of crimping:: CU 400 mm2 / AL 300 mm2

Crimping dies:: 16 ,25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400

SUCA electric cable crimping tool battery terminal crimping tool battery lug crimper SUCA electric crimping machine battery operated crimping tool electric cable crimper SUCA electric crimper tool battery cable crimper battery terminal crimper SUCA battery crimper electrical connector crimpers battery operated crimper electric crimper

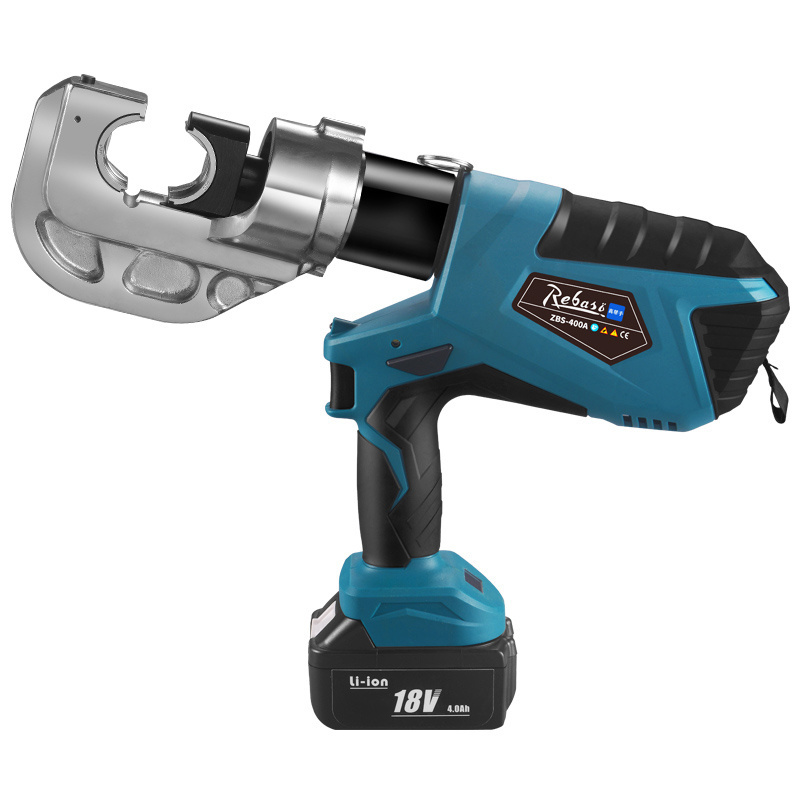

SUCA Hydraulic crimping tools

● The working head of SUCA electro-hydraulic tongs can be rotated 330° to meet different working conditions and usage
environments

● Adopt permanent magnet DC motor, easy to work without effort ● The fuselage is equipped with a high-definition LCD
display, which records the power and crimping times in real time ● With reset switch, one-button reset to ensure your safety ● Professional crimping copper/aluminum wire terminals, the maximum pressure can reach 7 tons

Product name	SUCA Hydraulic crimping tools
Model	SC-400 A
Weight	6.5 Kg
Size	*42027072 mm*
Time/crimp	8 s(CU 150 mm2)
Time /crimp	120 times (CU 150 mm2)
Oil storage capacity	166 ml
Max pressure	70 Mpa
Max stroke	42 mm
Max output	125 KN
Range of crimping	CU 400 mm2 / AL 300 mm2
Crimping dies	16 ,25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400
Battery	18 V 4 Ah / 5Ah
