We supply integrity equipment to collocate with fully frame less glass door, swing-in door and so on. low temperature design.
- Product Details
- {{item.text}}
Quick Details
-
Feature:
-
Fail Safe
-
Voltage:
-
DC 12V
-
Current:
-
120-900mA
-
WorkingTemperature:
-
0.1 ~ 10 cm-10 to 55 Celsius degree
-
Humidity::
-
0 to 95%
-
Suitable Humidity::
-
0-95% (relative humidity)
-
Surface Temp:
-
Low Temperature
-
Solid Bolt:
-
Polishing housing, 800Kg Holding Forc
-
Suitable For:
-
Wooden Door,Glass Door,Metal Door,Glass Door
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Product name:
-
signal output & lock Time Delay electric drop bolt Fail secure door
-
Feature:
-
Fail Safe
-
Voltage:
-
DC 12V
-
Current:
-
120-900mA
-
WorkingTemperature:
-
0.1 ~ 10 cm-10 to 55 Celsius degree
-
Humidity::
-
0 to 95%
-
Suitable Humidity::
-
0-95% (relative humidity)
-
Surface Temp:
-
Low Temperature
-
Solid Bolt:
-
Polishing housing, 800Kg Holding Forc
-
Suitable For:
-
Wooden Door,Glass Door,Metal Door,Glass Door
Product Description
signal output & Auto lock Time Delay electric drop bolt Fail secure door

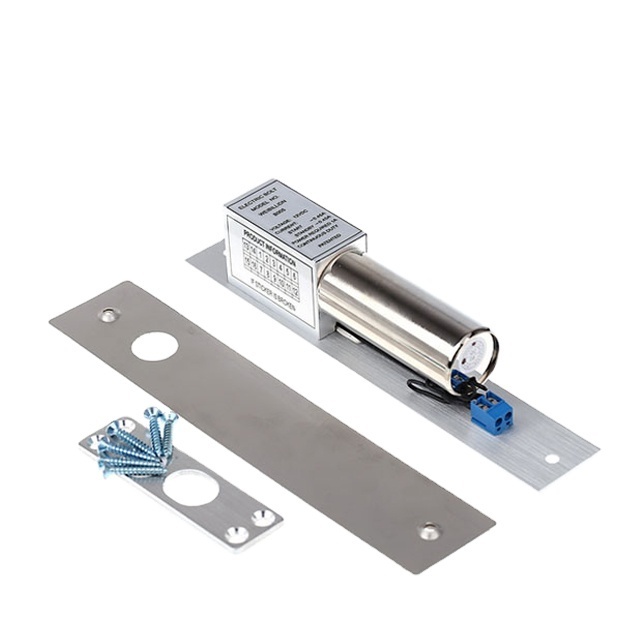

Y-100S is a fail safe electric bolt .with Door status Signal Output ,suitable for glass door, wooden door, metal door .
Electric bolt lock Technique Specification:
|
Product Parameter
|
Parameter Description
|
|
Feature
|
Fail Safe (Unlock when power off)
|
|
Face Plate
|
205Lx35WX40H(mm)
|
|
Strike
|
90Lx25Wx2H(mm)
|
|
Voltage
|
DC12V
|
|
Start Current
|
900mA
|
|
Standby Current
|
120mA
|
|
Solid Bolt
|
polishing housing, 800Kg Holding Force
|
|
Suitable For
|
Wooden Door,Glass Door,Metal Door,Glass Door
|
|
Surface Temp
|
Low Temperature
|
|
Induction Distance
|
8mm
|
|
Operating temp
|
-10~+55℃(14~131F)
|
|
Operating Humidity
|
0~90%(non-condensing)
|
|
Special Designed
|
Tested to 500000 cycles
|
|
Face place material
|
High Aluminum
|
|
Weight
|
0.72kg
|
Product Advanatge
Electric drop bolt Features:
1. Low Temperature, safe & Durable.
2. Low Power, Environmental Protection.
3. Special photoelectricity control,three steps current application.
4. Long Life with 500000 cycles.
5. MOV Provides Reverse Current Protection.
6. Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
7. Double protection for loading current.
8. Photoelectricity Control,Low Temperature,
A:The Low Current is Changed immediately;
B:When door frame doesn`t coincide with doorleaf ,door leaf against the bolt,then the electricbolt will start the low-power function to bring low temperature.
C:The Photoelectricity Control Technology, prevent the machanical defect.
Detailed Images , OEM/ODM available
The State For Energized or Power Down
For Our ACM-Y100s The Features : Response Speed Setting Feedback Signal, Low Fuel Consumption and Easy Operating .
Quality Warranty
- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.
Instalation Diagram
