Applications:
Detects objects
Controlling relevant parts
Monitoring function
Optional operating modes
- Product Details
- {{item.text}}
Quick Details
-
Working distance factory setting:
-
Urinal flusher : 40 CM, Toilet flusher : 65 CM.
-
Adjustable detecting distance:
-
0-90 CM (adjusted by remotes)
-
Maximum output current:
-
800mA
-
Power consumption:
-
<20 uA
-
Response time:
-
0.5S
-
Sample lead time:
-
2 days
-
Order lead time:
-
5-7 days after details confirmed
-
Low voltage warning:
-
< 4.5V
-
Type::
-
Active Sensor
-
Brand Name:
-
PEPE-Automatic Sensor Flush
Quick Details
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
EJ-T0041
-
Working voltage::
-
DC4.5-6.6V
-
Working distance factory setting:
-
Urinal flusher : 40 CM, Toilet flusher : 65 CM.
-
Adjustable detecting distance:
-
0-90 CM (adjusted by remotes)
-
Maximum output current:
-
800mA
-
Power consumption:
-
<20 uA
-
Response time:
-
0.5S
-
Sample lead time:
-
2 days
-
Order lead time:
-
5-7 days after details confirmed
-
Low voltage warning:
-
< 4.5V
-
Type::
-
Active Sensor
-
Brand Name:
-
PEPE-Automatic Sensor Flush
Our Company
OEM and ODM services, PEPE offers comprehensive sensor and alarm solutions in different sectors based on customer-specific needs. Develop product hardware and PCB software; standardize the interfaces connection between software and hardware development work, mechanism, power supply, and materials; design corresponding control modules in line with the project plan to ensure the product's function, cost control, and production quality guarantee are priorities.
Design Your System
20*30 mm sensor PCB (EJ-B601)
11*15 mm PCB (EJ-B605)
15*24 mm Sensor PCB(EJ-R609)
Applications
Applications:
Detects objects
Controlling relevant parts
Monitoring function
Optional operating modes
Description

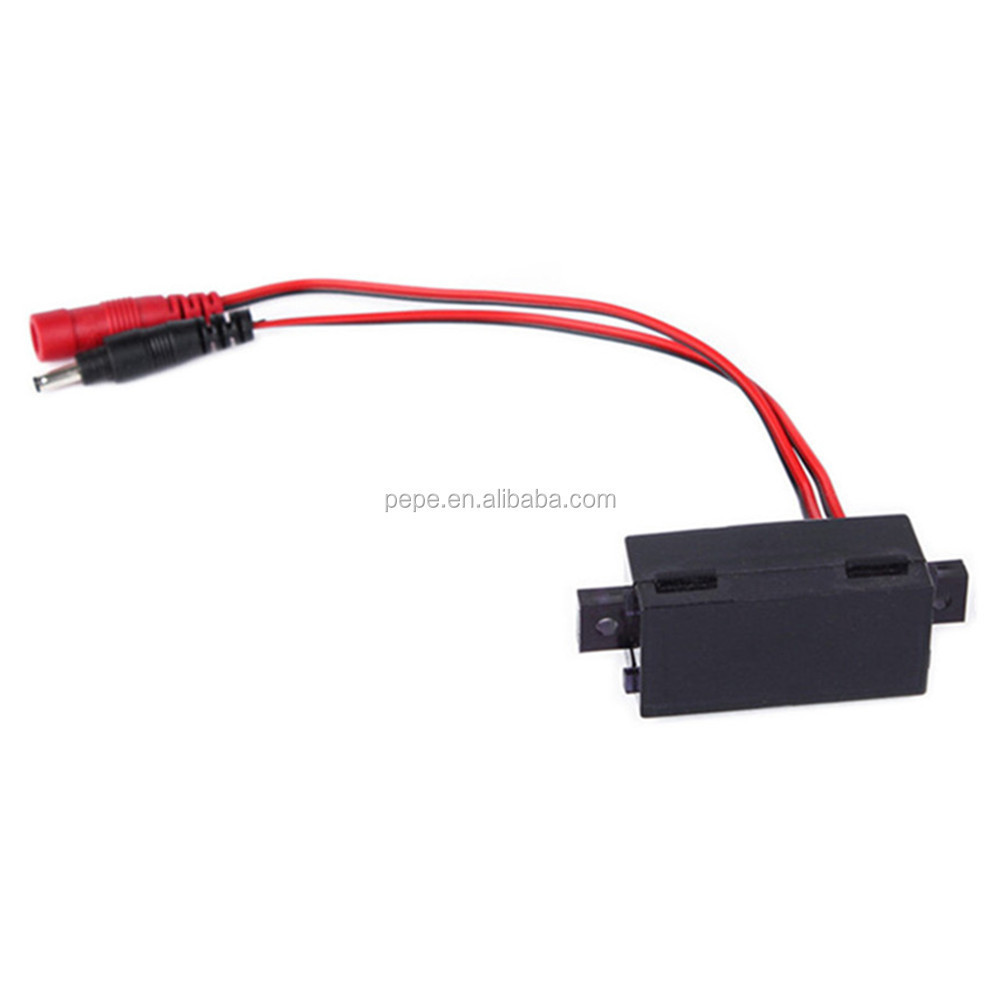

Water Saving System Automatic Sensor Flush Touchless Smart Toilet System
Features:
Fast, accurate distance-ranging detection.
Single power supply.
Anti-vibration and shock.
Works with various types of cover materials
Reliable water and humidity-proof circuit that provides accurate control for all electrical parts.
Low power consumption guarantees extended battery life.
|
Model number:
|
EJ-T0041
|
|
Working voltage:
|
DC 4.5V-6.6V
|
|
Adjustable sensing range:
|
Water sensor: 0-350 mm / 400-850 mm Smart home: 0-900 mm
|
|
Maximum output current:
|
800mA
|
|
Sensitivity:
|
1S
|
|
Output pulse:
|
45 ms
|
|
Stand-by consumption:
|
< 20 uA
|
|
Low voltage indicator:
|
< 4.5V
|
|
Ingress protection:
|
IP 67
|
15*24 mm DC 6V IR sensor circuit
OEM control board suits your unique application and optional sensor covers and connectors in different shapes.
OEM control board suits your unique application and optional sensor covers and connectors in different shapes.
Remote Control
You have a remote and APP assist, allowing you to manage or customize your system easily.
You have a remote and APP assist, allowing you to manage or customize your system easily.
Optional Sensor Cover
It can be well-protected electronics; with optional colors and materials in different shapes.
It can be well-protected electronics; with optional colors and materials in different shapes.
Male & female DC Connector
We can design and produce connectors in different shapes that suit your requirements.
Related Products
Solenoid valve (EJ-S0001)
Plastic Battery Case -EJ-007
Power Converter
DC Cable
2 PIN Wire Connector
UL-2 PIN Sensor Cable
Customer Comments
Packing & Delivery
Packing
Water Saving System Automatic Sensor Flush Touchless Smart Toilet System
Inner packing: 20 PCS /corrugated paper box, Meas: 21*18*7.5 CM
Outer packing: standard export carton, 200 sets /ctn, Meas: 42.5*37.5*32 CM.
N.W: 9.5 KGS/PC, G.W: 11 KGS/CTN
Delivery
3-5 days in stock, 10-15 days if customized.
