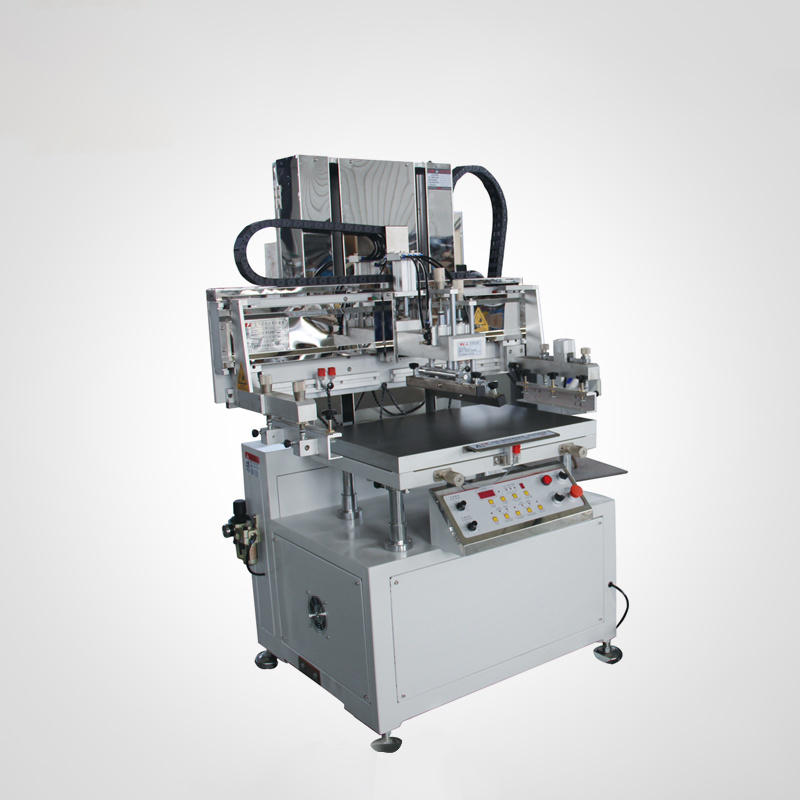

6090 semi auto pcb silk screen printing press price

1. Scope of application:

1)This silk screen printing machine series are widely used in the electronics, advertising, package printing, sports equipment, toys, stationary gifts, metal processing industries.

2)Suitable for printing on all kinds of flat materials, print on metal, glass, wood, paper, plastics, membranes switch, PCB, tempered glass, auto windshield,light guide plate, DC card,nameplate ,also printing on bags,non-woven fabrics, ceramic decals, glazing plate glass, label and panel , refrigerator and air-conditioner decals,plastic sheet, and other products with the material of  PVC, which have high requirement in overprinting.

2. Feature:

1).The platform is adjustable and moveable, which make it convenient to take the material.

2).vertical structure, printing plate moves up and down vertically, printing stroke is driven by imported electrical components.

3).The screen printer adopts Japanese Mitsubishi PLC control circuit, printing and plate moving up &down are driven by independent Current Source.

4).Screen Printer blade moving up and down is pneumatic controlled, printing stroke is controlled by photoelectric eyes, with independent adjustment.

5).Procedures set three-mode, manual / semi-automatic /automatic settings, the time interval during printing is digital controlled.

6).Independent designed machine head moves up and down, which makes it easy to unload and clean the printing plate, scraper / ink reclaiming blade.

7).Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.

3. Product details:

Payment & shipping terms

After-sale service:

1) According to the requests of the consumers,install & debug product .

2) According to the requests of the consumers, the use and other aspects of technical guidance.

3) To ensure the supply of repair parts.

4) Responsible for the repair service.

5) On the product of "Three Guarantees".

Model

XF-4060

XF-5070

XF-6090

XF-80120

XF-70140

XF-10200

Max Printing area(mm)

400*600

500*700

600*800

800*1200

700*1400

1000*2000

Printing table size(mm)

500*700

600*800

700*1000

900*1300

800*1500

1100*2100

Max frame(mm)

650*930

700*1100

850*1300

950*1630

900*1600

1350*2430

Flat precision(mm)

±0.05

±0.05

±0.05

±0.01

±0.01

±0.01

Printing thickness

(mm)

30

30

30

30

30

30

Over print accuracy

(mm)

0.01

0.01

0.01

0.01

0.01

0.01

Printing pressure

kg/cm2

0.6-0.8

0.6-0.8

0.6-0.8

0.6-0.8

0.6-0.8

0.6-0.8

Printing frequency /Hr

1150

1050

950

850

850

700

Voltage/power V/kw

380/2.1

380/2.45

380/2.45

380/4.15

380/4.15

380/5.6

Equipment weight kg

380

450

500

580

630

750

Overall dimensions

(L*W*H)(mm)

1130*1050*1620

1280*1100*1620

1500*1160*1620

1860*1400*1900

2060*1300*1900

2600*1500*1680
