Quick Details
-
Type:
-
poe switch
-
Material:
-
Metal housing
-
Application:
-
CCTV IP camera
-
poe port:
-
4*10/100/1000Mbps
-
uplink port:
-
2*SFP (1.25G)uplink port
-
power:
-
96W
-
Single Port Power:
-
30W
-
PoE Protocol:
-
IEEE802.3AF/AT
-
POE Distance:
-
Max.100 meters
Quick Details
-
Brand Name:
-
Thinkwind
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
TW-804GP-2SFP
-
Type:
-
poe switch
-
Material:
-
Metal housing
-
Application:
-
CCTV IP camera
-
poe port:
-
4*10/100/1000Mbps
-
uplink port:
-
2*SFP (1.25G)uplink port
-
power:
-
96W
-
Single Port Power:
-
30W
-
PoE Protocol:
-
IEEE802.3AF/AT
-
POE Distance:
-
Max.100 meters

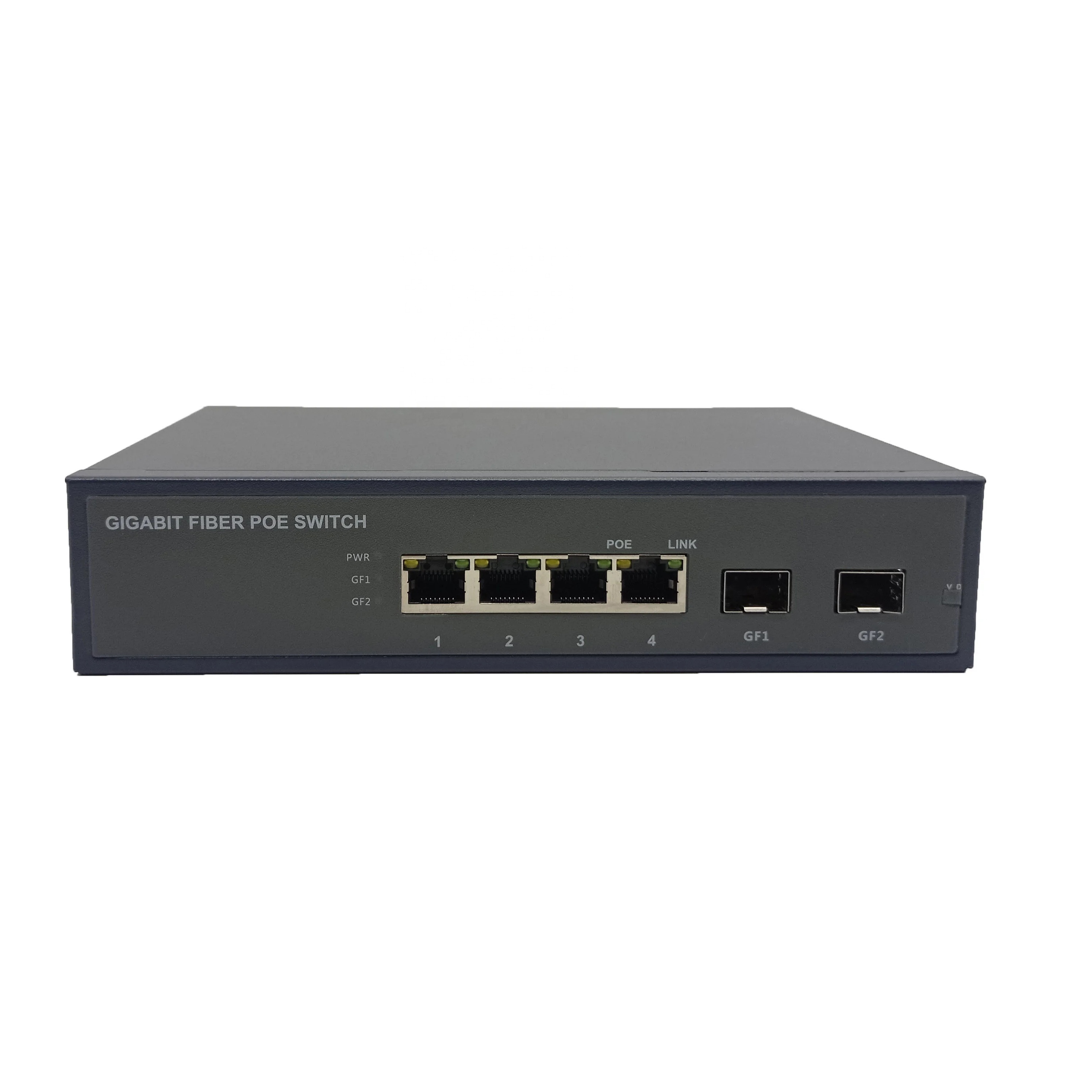

4 x10/100/1000 with 4.PoE+2SFP 1000M uplink ,unmanaged with 96W power supply, IEEE802.3af/at
Product Description
To fulfill the demand of High Power PoE for network applications with Gigabit transmission, PSE TW -804GP-2SFP PoE Gigabit Ethernet Switch is an ideal solution. Each 10/100/1000Mbps port of the TW -804GP-2SFP features IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) that combine up to 96 -watt PoE budget on the whole system . All RJ45 copper interfaces of the TW -804GP-2SFP support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. 2 extra 1.25Gbps SFP slots can be used for uplink.
Product Feature
l Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
l 4 -Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device
l 2 1.25Gbps SFP interfaces
l Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span PSE
l Up to 4 IEEE 802.3af devices powered
l Supports PoE Power up to 15.4 watts for each PoE port
l Up to 2 IEEE 802.3at devices powered
l Supports PoE Power up to 30 watts for each PoE port
l 96 -watt PoE budget
l Auto detects powered device (PD)
l Circuit protection prevents power interference between ports
l Remote power feeding up to 100m
l Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
l Features Store-and-Forward mode with wire-speed filtering and forwarding rates
l IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
l Integrates address look-up engine, supporting 8K absolute MAC addresses
l 2M packet buffer
l 10K Jumbo frame supports at 1000Mbps duplex mode
l Automatic address learning and address aging
l Made of metal, desktop size and wall-mount design
Product Parameter
|
Description |
||
|
Model |
TW -804GP-2SFP |
|
|
Power Supply |
Power Supply Mode |
AC Power |
|
Voltage Range |
AC 100 ~ 240V |
|
|
Power Consumption |
The device< 5 W , POE power supply < 96 W |
|
|
Network Port Parameter |
Network Ports |
1 ~ 4 Ports: 10/100/1000Mbps Ethernet port, adaptive control Uplink 2 SFP:1.25G bp s |
|
Transmission Distance |
1~ 4 Ethernet Port : 0~100m 2 SFP: According to different SFP |
|
|
Transmission Media |
1~ 4 Ethernet Port : Cat5e/6 standard UTP cable , 2 SFP: LC interface optical fiber |
|
|
POE Agreement |
IEEE802.3 af/at standards |
|
|
PoE Power Supply Mode |
End-span method |
|
|
PoE Power Supply Wattage |
Each port≤30W,Whole device< 96 W |
|
|
Network Switch Specification |
Network Standard |
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T |
|
Swap Mode |
Store-and- forward |
|
|
Switch Capacity |
12 Gbps |
|
|
MAC Address List |
8 K |
|
|
Status Indicators |
Power Indicator Light |
One power light ( green ) |
|
Optical Fiber Port Indicator |
One fiber link indication light ( green), Green light keeps on when the fiber port is well connected |
|
|
PoE Indicator |
1~ 4 PoE indicator light ( yellow ) |
|
|
Network Port LED |
1~ 4 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data |
|
|
Protection Level |
Surge Immunity |
Level 3, executive standard : IEC61000-4-5 |
|
Electrostatic Protection |
1a touch electric discharge: level 3 1a Air discharge: level 3 Executive standard : IEC61000-4-2 |
|
|
Operating Environment |
Working Temperature |
-10 ℃~ 55 ℃ |
|
Storage Temperature |
-40 ℃ -85 ℃ |
|
|
Humidity(non-congeal) |
0~95% |
|
|
Mechanical Attributes |
Dimensions ( L*W*H) |
202 mmx 140 mmx 4 5 mm |
|
Color |
Black |
|
|
Weight |
1. 3 kg |
|
|
Reliability |
Mean time between failures ( MTBF ) |
> 50000h |
