Quick Details
-
Voltage:
-
380V/Customized
-
Power:
-
33.12KW
-
Dimension(L*W*H):
-
12*2*2.5m
-
Weight (KG):
-
5000
-
Marketing Type:
-
New Product
-
Evaporation Capacity(kg/h):
-
50-1000
-
Product name:
-
Potato Dryer Drying Machine
-
Host material:
-
Color steel, Painted board, Stainless steel
-
Heating source:
-
Natural Gas, Oil, Electricity, Wood Chips/Sawdust, Etc.
-
Function:
-
Dryer for drying food, vegetable, fruit, etc
-
Drying temperature:
-
40 - 120℃, Adjusted
-
Advantage:
-
Energy conservation, multifuctional, environmental protection
-
Drying time:
-
0.5-5h
-
Evaporation capacity:
-
800-1200kg/h
-
Usage:
-
Industrial
-
Application material:
-
Vegetables, pepper, chilli, okra, leaf, alfalfa, cassava, mushroom
Quick Details
-
Type:
-
Continuous Mesh Belt Dryer
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Baixin
-
Voltage:
-
380V/Customized
-
Power:
-
33.12KW
-
Dimension(L*W*H):
-
12*2*2.5m
-
Weight (KG):
-
5000
-
Marketing Type:
-
New Product
-
Evaporation Capacity(kg/h):
-
50-1000
-
Product name:
-
Potato Dryer Drying Machine
-
Host material:
-
Color steel, Painted board, Stainless steel
-
Heating source:
-
Natural Gas, Oil, Electricity, Wood Chips/Sawdust, Etc.
-
Function:
-
Dryer for drying food, vegetable, fruit, etc
-
Drying temperature:
-
40 - 120℃, Adjusted
-
Advantage:
-
Energy conservation, multifuctional, environmental protection
-
Drying time:
-
0.5-5h
-
Evaporation capacity:
-
800-1200kg/h
-
Usage:
-
Industrial
-
Application material:
-
Vegetables, pepper, chilli, okra, leaf, alfalfa, cassava, mushroom

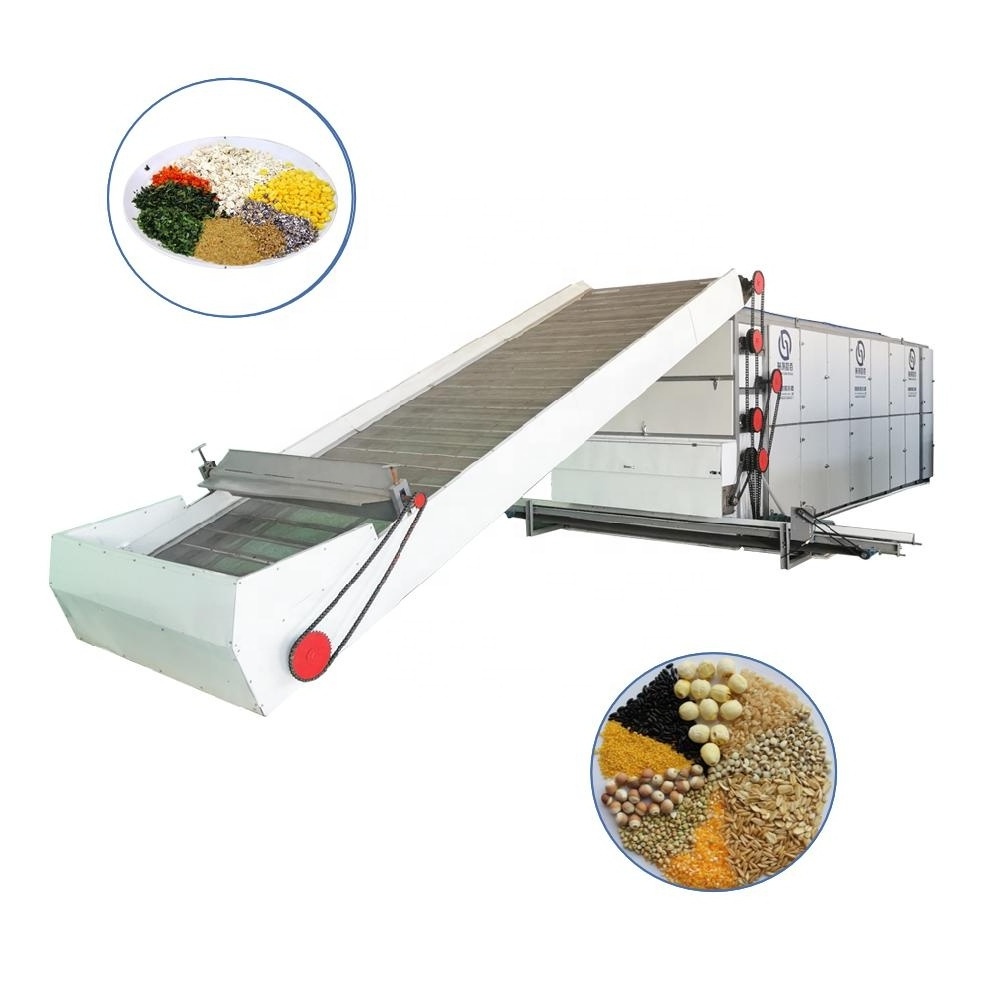

Potato Drying Machine Electric Fish Dryer Machine Parboiled Rice Drying Machine
Parboiled Rice Drying Machine is a kind of continuous production drying equipment, the main heating way has electric heating, steam heating, hot air heating. Its main working principle is to spread the material evenly in the network. The material is moved in the dryer by the operation of the machine, and the hot air draws out the water vapor of the material. so as to achieve the purpose of drying.
The operation temperature is 40-120 degree centigrade. And the dry cycle is 1-5 hours.
It is mainly used for fruit and vegetable, herb, chilli, spice, mushroom, cassava, etc. The equipment easy to operate, save time, drying process health and protect environment.
The working principle for the Commercial Rice Drying Machine is that Rice are transported by the feeding conveyor to the inside of the mesh belt dryer. The Rice passes from the first layer to the last layer via the conveyor belt, and the dried Rice is conveyed by the discharge conveyor. The belt dryer is using hot air as the drying medium. The hot air passes through the material from the bottom to top. The final moisture comes out of the top of the dryer.The drying machine not only according to heat to dry, but also according to strong air. So it can increase the drying efficiencyand drying time.
The technical parameters of Parboiled Rice Drying Machine:
| Model | BX-2*6m | BX-2*9m | BX-2*12m | |
| Layer | 4 layers, 5 layers, 6layers | |||
| Material Thickness | 50-200mm | |||
| Drying Temperature | 40-120℃ | |||
| Drying Time | 0.5-5hours | |||
| Moisture Reduce | 75% to 8% (Customized) | |||
| Main Machine Motor | 1.5kw | 1.5kw | 3kw | |
| Hot Air Draft Fan | 10C-15kw | 10C-18.5kw | 12C-30kw | |
| Discharge Conveyor | 0.12kw (Gear speed regulating motor) | |||
| The above parameters are for reference, we can according to customer required provide best solution. | ||||
