2 Inch Backwash Hydraulic Valve Drip Irrigation System Control Valve

2 Inch Backwash Hydraulic Valve Drip Irrigation System Control Valve

FOB Reference Price: Get Latest Price

≥5 Pieces

US $60.89

≥50 Pieces

US $59.54

≥100 Pieces

US $58.38

≥1000 Pieces

US $57.21

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name::: VANYE

Connection Size:: 2''X2''X2'''

Connection:: BSP/NPT/VIC

Max Flow(m3/h):: 30

Max Pressure:: 0.7-10bar

Weight:: 2.8kg

Size:: 27.4*18*16cm

Usage:: Water Treatment

Quick Details

Place of Origin:: Fujian, China

Brand Name:: VANYE

Model Number:: VAF63, VAF63

Brand Name::: VANYE

Connection Size:: 2''X2''X2'''

Connection:: BSP/NPT/VIC

Max Flow(m3/h):: 30

Max Pressure:: 0.7-10bar

Weight:: 2.8kg

Size:: 27.4*18*16cm

Usage:: Water Treatment

VANYE

Fuzhou Wanye Environmental Protection Technology Co., Ltd.

PRODUCT DESCRIPTION

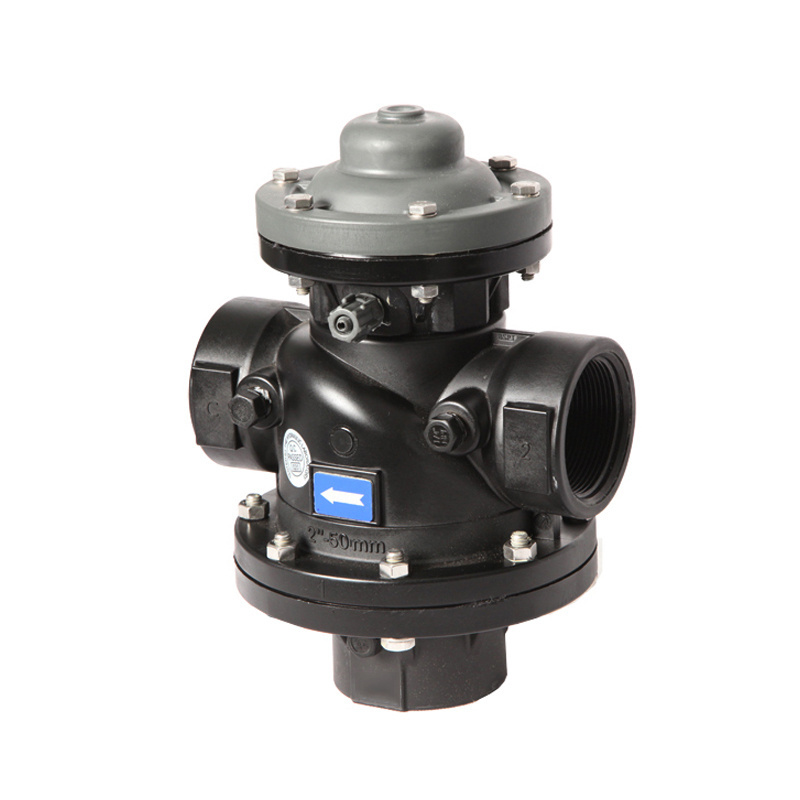

TYPICAL APPLICATION The Filter Backwash Hydraulic Valve is a compact 3-port valve, in a T configuration. It is double chambered,hydraulically operated, and diaphragm actuated. Feature of Hydraulic Control Valve 1. The main valv and the electromagnetic head are used to control the on-off valve, and the electric signal remote control is turned on or off. 2. Size: 2'', 3'', 4'',4''S 3. Electromagnetic head voltage: 24VAC/ VDC and 9-30VDC latch 2-position 3 way. 4. Electromagnetic head type: Normally open/ normally closed. 5. Connection method: internal thread/flange. 6.With the possibility to install changeover joints in the drain of the direct flow valve, from 4 to 3, from 3 to 2, meeting the demands of small flows. 7.VANYE back-flushing control valve can be connected with gravel filter or disc filter into an automatic backwash filtration system, and it can also change the direction of flow in water supply. The control valve has 2 control chambers, which can be deformed into angular flow or direct flow through different spring assembly direction. 8.Short stroke of valves stabilizing water flow and avoiding blend of clean and dirty water;

Model	Max Flow (m3/h)	Connections Sizes	Weights (kg)	Working Pressure(Bar)
VYF63FM	30	2''x2''x2'' BSP/NPT/VIC	2.9	0.7-10

After 10 years of hard work, Fuzhou Wanye Environmental Protection Technology Co., Ltd. is a company specializing in the research and development and production of water-saving irrigation products for agriculture, water conservancy, garden irrigation and water and fertilizer integration.

It also provides design, installation and guidance for agriculture, water conservancy, gardening and integrated water and fertilizer irrigation projects.

Our main products include Filtration Systems, Automatic Filtration Systems, Sand Media Filtration Systems, Air Valves, Filter Backwash Hydraulic Valves, Manual On/Off Valves, Disc/Screen Filters, Fertilization Systems, Garden Irrigation Systems and Accessories, Micro Irrigation system, etc.

OUR SERVICE
1. OEM/ODM services are accepted.
2. Technical support and design personalized solutions by the engineer team.
3. Accept sample order.
4.Quality tracking & service.
5.Provide the free catalog for you.
6.Various irrigation products for your choice.
7.Warranty: All our products have 1 year warranty. If there's any quality problems during the warranty period, we ship new spare parts for replacement free for you.

Thank you for browsing and trusting, have a nice day
