Cable TV 8/16 /20/24 ways channels HD MI Encoder 1080P H.264 to IP Encoder for IPTV Broadcasting System
Cable TV 8/16 /20/24 ways channels HD MI Encoder 1080P H.264 to IP Encoder for IPTV Broadcasting System
Cable TV 8/16 /20/24 ways channels HD MI Encoder 1080P H.264 to IP Encoder for IPTV Broadcasting System
Cable TV 8/16 /20/24 ways channels HD MI Encoder 1080P H.264 to IP Encoder for IPTV Broadcasting System
Cable TV 8/16 /20/24 ways channels HD MI Encoder 1080P H.264 to IP Encoder for IPTV Broadcasting System
Cable TV 8/16 /20/24 ways channels HD MI Encoder 1080P H.264 to IP Encoder for IPTV Broadcasting System
Cable TV 8/16 /20/24 ways channels HD MI Encoder 1080P H.264 to IP Encoder for IPTV Broadcasting System
Cable TV 8/16 /20/24 ways channels HD MI Encoder 1080P H.264 to IP Encoder for IPTV Broadcasting System

Cable TV 8/16 /20/24 ways channels HD MI Encoder 1080P H.264 to IP Encoder for IPTV Broadcasting System

FOB Reference Price: Get Latest Price
≥1 Pieces
US $1750
≥3 Pieces
US $1500
≥10 Pieces
US $1300
≥100 Pieces
US $750
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Product name:
IPTV 24 channels HD MI H.264 ASI IP Encoder
Input:
HD MI, ASI
Output:
ASI and IP
Video encoding:
MPEG-4 AVC/H.264
Audio encoding:
MPEG-1 Layer 2
Bit-rate:
1Mbps~13Mbps(each channel)
Protocol:
Support UDP RTP Multicast Unicast
Power requirements:
AC100~240V, 50/60Hz
Warranty:
5 Years
Dimension(W*L*H):
482mm*480mm*45mm

Quick Details

Place of Origin:
Sichuan, China
Brand Name:
Catcast
Model Number:
HP824LX
Product name:
IPTV 24 channels HD MI H.264 ASI IP Encoder
Input:
HD MI, ASI
Output:
ASI and IP
Video encoding:
MPEG-4 AVC/H.264
Audio encoding:
MPEG-1 Layer 2
Bit-rate:
1Mbps~13Mbps(each channel)
Protocol:
Support UDP RTP Multicast Unicast
Power requirements:
AC100~240V, 50/60Hz
Warranty:
5 Years
Dimension(W*L*H):
482mm*480mm*45mm
Cable TV 8/16 /20/24 ways channels HD MI Encoder 1080P H.264 to IP Encoder for IPTV Broadcasting System
Product Description

Summary

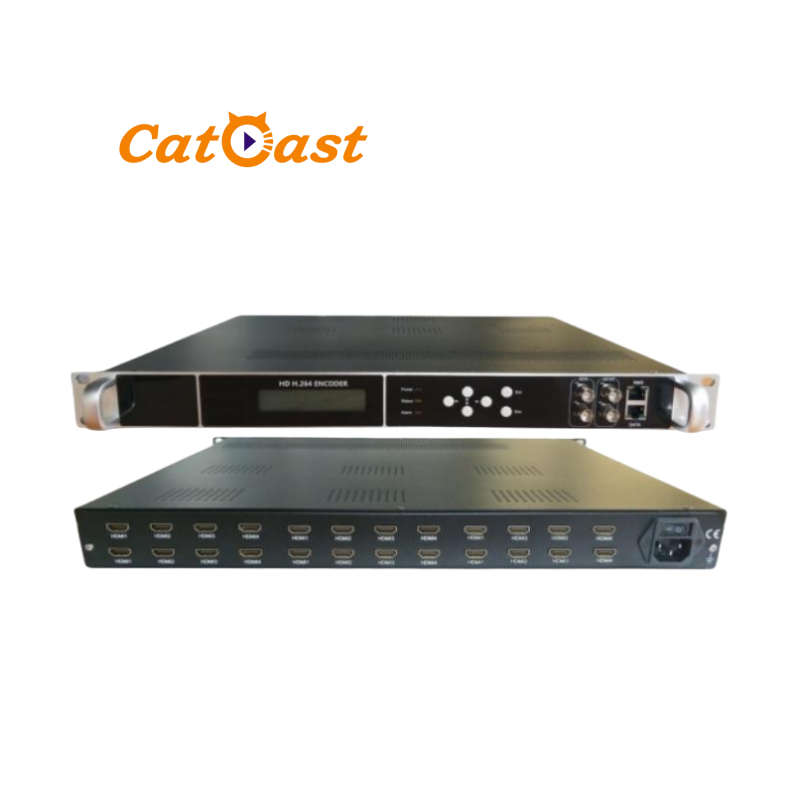

HP824LX Encoder is a professional high integration device which includes encoding, multiplexing. It supports 4/8/12/16/20/24 HDMI input, 2 ASI input, 1000M multicast IP stream output. It also supports ASI output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as IPTV multicast, cable TV digital head-end, digital TV broadcasting etc.


Key Features
Support QR code, LOGO, OSD insertion for every local channel 4/8/12/16/20/24 HD MI input, support HDCP Support MPEG-4AVC/H.264 Video encoding Support MPEG1 Layer2, LC-AAC, HE-AAC v1&v2Audio encoding 4/8/12/16/20/24 SPTS and 4 MPTS output, IP output over UDP and RTP protocol, support multicast and unicast 2ASI inputs 2ASI Independent output (optional) as copy of 4MPTS Support “Null PKT Filter” function Support PID Remapping/ PCR accurate adjusting LCD、key function Control via web management, and easy updates via web

FTTH IPTV SYSTEM:

Principle Chart

Specification
input
HD MI(8/12/16/20/24 HD MI)
2 ASI inputs
output
2 ASI output
IP output:8/12/16/20/24× HD MI inputs with 8/12/16/20/24 SPTS and 4 MPTS output, IP output over UDP and RTP protocol
video
Encoding
MPEG-4 AVC/H.264
Resolution
Input:1920×1080_60P, 1920×1080_60i,
1920×1080_50P, 1920×1080_50i,
1280×720_60P, 1280×720_50P,
720×576_50i,720×480_60i,
Output:1920×1080_60P, 1920×1080_50P,
1280×720_60P, 1280×720_50P,
720×576_50P, 720×480_60P
1920×1080_30P,1920×1080_25P,
1280×720_30P,1280×720_25P,
720x576_25P,720x480_30P
Bit-rate
1Mbps~13Mbps(each channel)
Rate Control
CBR
Audio
Encoding
MPEG1 Layer2
Sampling rate
44.1KHz and 48Khz
Bit-rate
64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps
Resolution
24-bit
Audio Gain
0-255 Adjustable
Multiplexing
Maximum PID Remapping
180 output pids per channel
Function
PID remapping ( automatically or manually)
Accurate PCR adjusting
System function
Network management(WEB)
Chinese and English language
Ethernet software upgrade
Miscellaneous
Dimension(W×L×H)
482mm×480mm×45mm
Environment
0~45℃(work);-20~80℃(storage)
Power requirements
AC100~240V,50/60Hz
Related Products
Packing&Shipping
Package type: each pcs wth soft ,safety polyfoam ,then packed in brown box
Shipping way: it usually take 5-7 days by DHL, TNT, Fedex, UPS to arrive your local place
