Quick Details
-
Wireless distance:
-
2000 m
-
Frequency:
-
433, 433.92MHz
-
One set:
-
15 pcs
-
Place of origin:
-
Xiamen
-
Standby time:
-
>100H
-
Transmission distance ::
-
>3000M
-
Color:
-
White/black
-
Dimension recerver:
-
diameter175*465mm
-
OEM:
-
Acceptable
-
Customized logo:
-
Acceptable
-
Decoding:
-
Infrared pair code
-
Alert mode:
-
Vibration ,flash , buzzer
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BYHUBYENG
-
Model Number:
-
CS-15QM-L
-
Wireless distance:
-
2000 m
-
Frequency:
-
433, 433.92MHz
-
One set:
-
15 pcs
-
Place of origin:
-
Xiamen
-
Standby time:
-
>100H
-
Transmission distance ::
-
>3000M
-
Color:
-
White/black
-
Dimension recerver:
-
diameter175*465mm
-
OEM:
-
Acceptable
-
Customized logo:
-
Acceptable
-
Decoding:
-
Infrared pair code
-
Alert mode:
-
Vibration ,flash , buzzer
Product Description

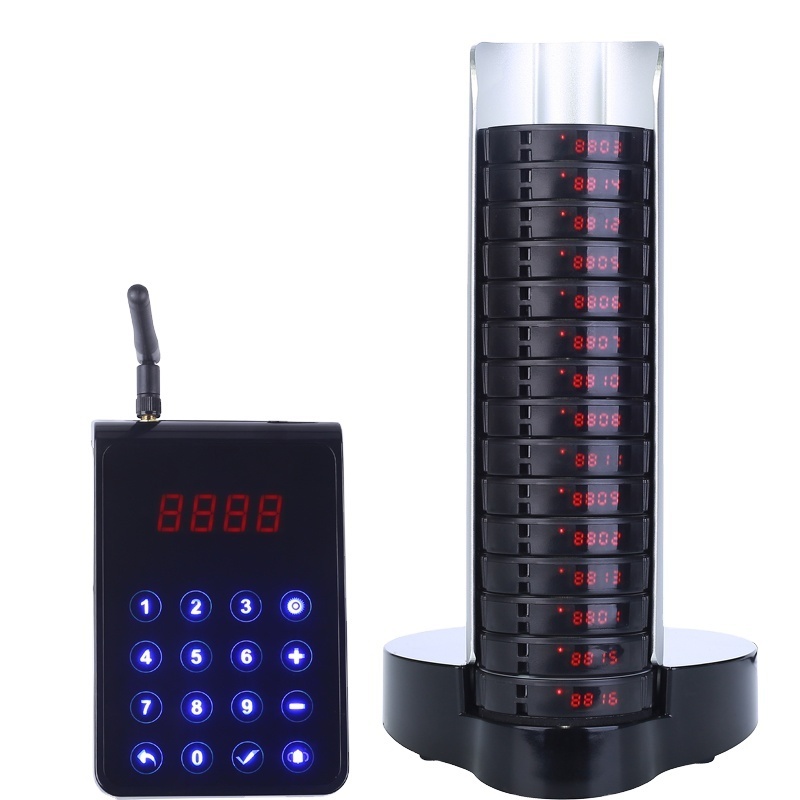

CS-15QM
The queuing system greatly improves the work efficiency and avoids the client waiting in a long queue. So it is widely used in fast food restaurant, food court, pizza shop, church and auto shop or other places where there are many guests waiting for their services.
1,It adopts the scientific stack idea" first in and first out", the product is equal in battery management, operation frequency and so on, so that the product can be maximum protected during using.
2,Coaster pager is full waterproof , grade IPX67, it can be used under 1 meter.
3,Coaster pager uses specialized 4 bits red ultra bright LED digital and support 1-9999.
4,Coaster pager can stand by more than 72 hours
5,Receiving distance of coaster pager: open space more than 3000m, over 10 floors
6,Built-in intelligent charging management system for coaster pager, it protect battery by adopt isolated input and output, specialized charging chip and grade 2 battery protection and anti back flow design. Low power protection using specialized LVD chip reset protection and will be automatically locked and show "LO" while it is low power.
7,Coaster pager has reserved lanyard hole, easy for users to carry.
8,finger of pager use 3U gold plating scheme, full of gold sense.
9,Guest pager with red green and blue three color LED lights, a stronger sense of technology, at the same time support beeps and vibration
10,Guest pager uses specialized charging indicator, it is easy for customer to check charging status.
11,The system adopts stacked charging scheme, supporting 15 and 25 pagers charging at the same time.
12,It supports gesture switch technology.
13,It supports infrared code technology.
14,It supports 99 channel, it wouldn't interfered each other while working with different channels.
15,It adopts Frequency Modulation Technology (FM), super anti-interference, far distance, can support more sets to transmit and receive at the same time.
How to use.
The Calling Pager System usually in restaurant, hotel, clinic, desert shop or anywhere customer waiting for their service.
1,Guests come to the restaurant and make their order.
2,The waiter give each guest a piece of pager(CS-8LED) that matches the guset ID.
3,When the order is ready, the waiter will press the transmitter (CS-2000T) to alert the pager that guest hold.
4,Guest get the wireless signal by pager vibration or flash or beep with their number, and go to the counter to take their order.
Specification
|
product details
|
|
|
|
Model:
|
CS-8LED
|
|
|
Frequency:
|
433.92MHz
|
|
|
Weight(kg):
|
0.08
|
|
|
Color:
|
Blueberry
|
|
|
Size(mm):
|
φ80*16
|
|
|
Remind:
|
Flash, Vibration, Beep
|
|
|
Logo:
|
Free Customized
|
|
|
LED display:
|
0001-9999
|
|
|
Material:
|
Imported pc
|
|
|
Waterproof rating:
|
IPX7
|
|
|
Low battery reminder:
|
LO
|
|
|
Standby(h):
|
>100
|
|
|
Batterty:
|
350mAh(lithium battery)
|
|
|
product details
|
|
|
|
Model:
|
CS-2000T(FM)
|
|
|
Weight(g):
|
500
|
|
|
Color:
|
Black
|
|
|
Size(mm):
|
150*96*37
|
|
|
Operational feedback:
|
Vibration, Beep
|
|
|
Coding technology:
|
infrared coding
|
|
|
Frequency:
|
433.92MHz
|
|
|
Operating technology:
|
touch control
|
|
|
Launch distance (m):
|
open area >3000
|
|
|
RF modulation:
|
FM
|
|
|
Pager capacity:
|
NO.1-NO.9999
|
|
|
Material:
|
ABS+PC
|
|
|
Power supply:
|
5V/2A
|
|
|
Displayed digital:
|
4-digit LED display
|
|
|
product details
|
|
|
|
Model:
|
CS-8C-L(15),CS-8C-L(25),CS-8C(15),CS-8C(25)
|
|
|
Weight:
|
2.5kg,3.5kg
|
|
|
Color:
|
base:Black,Pillar: Silver
|
|
|
Size(mm):
|
(15):315*175,(25)465*175
|
|
|
Material:
|
ABS+Aluminum alloy
|
|
|
Power supply:
|
(15):12V/3A (25):12V5A
|
|
|
USB Port(8C only):
|
Support for connecting POS machines,It can be secondary development,Accept POS control
|
|
Packing & Delivery
Payment Terms
Safe and secure packaging
Use different packaging for our products according to the characteristics of different products, such as foam bags, inner corrugated cartons, blister packs, outer cartons, and so on. so no concern of products damage during transportation .
Support customized packaging
Support customized product logos labels, , expanded product features, etc., but require a minimum order quantity.
Shipping Details
Usually transported by door to door International Express (DHL, UPS, FEDEX, TNT, HongKong Post Air Mail etc). we could also take delivery of bulk order by Sea, Air or Railway.
Shipping Time
1-3 working days for small order; 3-10 working days for bulk order; customized products are dependent on the individual situation.
FAQ
Q: Are you a factory or trading company?
A: We are factory which have 11 years of valuable experience in pager system, call bottom ect. We accepet OEM/ ODEM order and package.
Q: Do you accept the small order?
A: Yes, you can contact with us.
Q: Can we put our logo on your products
A: Yes, we can customized your logo. But the quantity of the items have special requirements.
Q: What certifications do your products have?
A: CE, FCC .ROHS
Q: How long is the guarantee?
A: Our items enjoy one year warranty and maintenance for life.
Q: Do you provide technical support?
A: Yes, technical support is available after sales.
Q: What is the delivery time ?
A:Normally, it is shipped with a week after payment received.
Q: How about if I do not know much about this item, and could not install it?
A: This item has full function but easy to operate, the only thing you need to do is to set this item as the instructions sent to you, and if you still feel confused, you could leave a message to us, and we are willing to help you solve any kinds of questions.
