Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHIYUE
-
Voltage:
-
Local Voltage
-
Dimension(L*W*H):
-
7100*1600*2610mm
-
Marketing Type:
-
Hot Product 2023
-
Weight (KG):
-
4000 kg
-
Product Name:
-
block machine full automatic concrete block brick making machines
-
Raw material:
-
crushed stone, sand, cement, dust, coal fly ash, cinder, slag, gravel
-
Power:
-
electric motor
-
Worker:
-
1-3 people
-
Weight:
-
5800kgs
-
Color:
-
Changable
-
Hydraulic pressure:
-
20 Mpa
-
Concrete mixer:
-
Optional
-
Shaping cycle:
-
15-20s
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
Cement
-
Production Capacity (Pieces/8 hours):
-
4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours, 5760-7680pcs/8 hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHIYUE
-
Voltage:
-
Local Voltage
-
Dimension(L*W*H):
-
7100*1600*2610mm
-
Marketing Type:
-
Hot Product 2023
-
Weight (KG):
-
4000 kg
-
Product Name:
-
block machine full automatic concrete block brick making machines
-
Raw material:
-
crushed stone, sand, cement, dust, coal fly ash, cinder, slag, gravel
-
Power:
-
electric motor
-
Worker:
-
1-3 people
-
Weight:
-
5800kgs
-
Color:
-
Changable
-
Hydraulic pressure:
-
20 Mpa
-
Concrete mixer:
-
Optional
-
Shaping cycle:
-
15-20s
Products Description

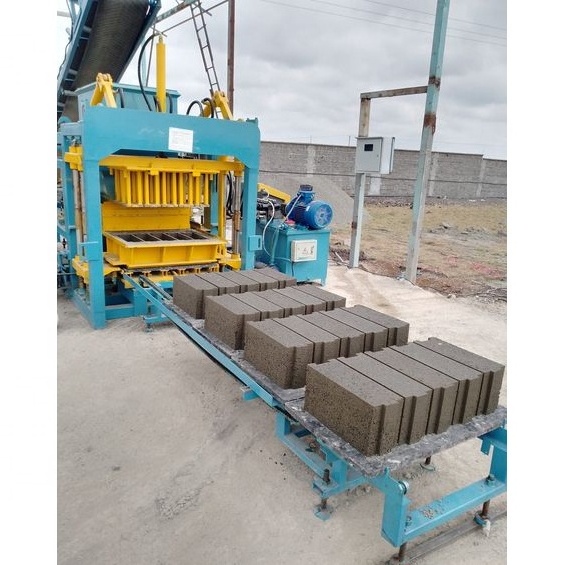

QT4-15 full automatic concrete block making machine
1. QT4-15 use hydraulic technology, so the blocks produced areof good quality,large density and high strength.
2. All mould use precise line cutting and carburizing treatment to prolong its service life.
3. The machine frame is welded by special thick steel rectangle welding techniques, thus it is strong, durable and can resist vibration.
4. The full automatic block machine can produce all kinds of blocks, just by changing the moulds.
5. It producesvarious bricks/blocksincluding color-face bricks (layered material feeding),through-body tiles, lock linkage blocks, road curb bricks, hydraulic blocks, hollow blocks, perforated bricks, and standard bricks etc.
6. All mould use heat treatment, low cost and large capacity. It is anideal choicefor customer.
2. All mould use precise line cutting and carburizing treatment to prolong its service life.
3. The machine frame is welded by special thick steel rectangle welding techniques, thus it is strong, durable and can resist vibration.
4. The full automatic block machine can produce all kinds of blocks, just by changing the moulds.
5. It producesvarious bricks/blocksincluding color-face bricks (layered material feeding),through-body tiles, lock linkage blocks, road curb bricks, hydraulic blocks, hollow blocks, perforated bricks, and standard bricks etc.
6. All mould use heat treatment, low cost and large capacity. It is anideal choicefor customer.
common blocks theoretical Capacity and common blocks samples
|
QT4-15 parameters
|
|
|
|
Machine power
|
27.5kw
|
|
|
Molding cycle
|
15-25 seconds
|
|
|
Hydraulic pressure
|
20 Mpa
|
|
|
Machine weigh
|
5800KGS
|
|
|
Overall size
|
7100*1600*2610mm
|
|
|
Voltage
|
According to your local voltage
|
|
|
Main Vibration Form
|
Platform Vibration
|
|
|
Theoretical productivity
|
|
|
|
|
||||
|
Items
|
Block size
|
Pcs/mould
|
Cycle molding
|
Pcs/day
|
||||
|
Hollow Block
|
400*200*200mm
|
4
|
15-20s
|
5760-7680
|
||||
|
Porous Block
|
240*115*90mm
|
14
|
15-20s
|
25200-33600
|
||||
|
Standard Block
|
240*115*53mm
|
28
|
15-17s
|
59300-67200
|
||||
