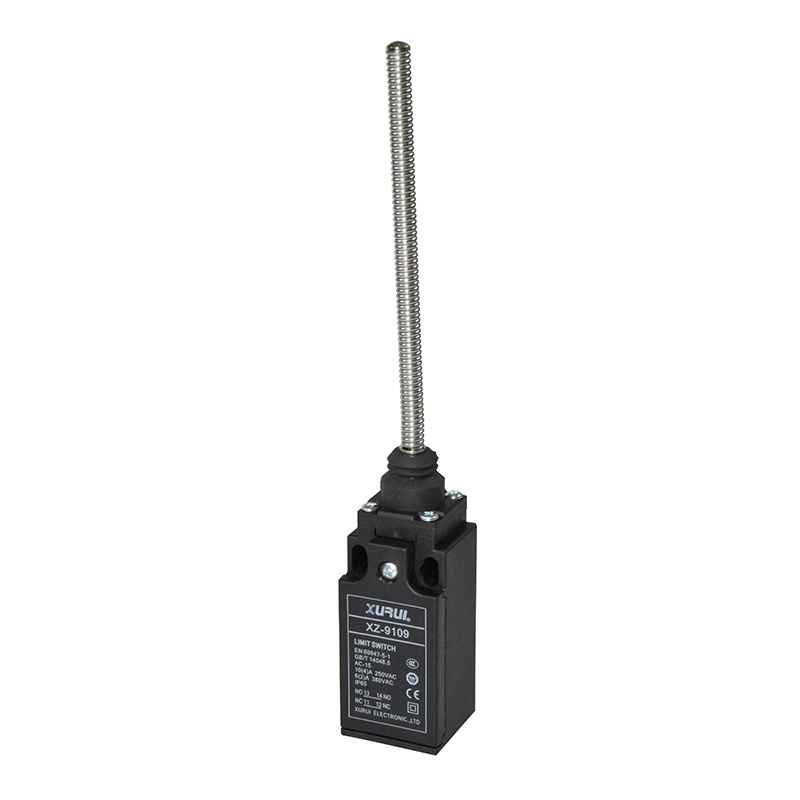

XURUI XZ9109 1NO1NC 10A enclosed limit switch with coil spring actuator

XURUI XZ9109 1NO1NC 10A enclosed limit switch with coil spring actuator

FOB Reference Price: Get Latest Price

≥100 Pieces

US $1.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: XZ-9109

Protection Level:: IP65

Operating Temperature:: -10-70 Degree

Max. Current:: 10A,6A

Electrical Life:: 100,000 times above

Mechanical Life:: 1,000,000 times above

Rating Load:: 10A 250VAC, 6A 380VAC

Crust Material:: PA66

Certification:: TUV CE, TUV CE

Lever Type:: Wobble Stick type

Contact Form:: 1NO1NC

Type:: enclosed limit switch

Quick Details

Max. Voltage:: 250VAC,380VAC

Place of Origin:: Zhejiang, China

Brand Name:: XURUI

Model Number:: XZ-9109

Protection Level:: IP65

Operating Temperature:: -10-70 Degree

Max. Current:: 10A,6A

Electrical Life:: 100,000 times above

Mechanical Life:: 1,000,000 times above

Rating Load:: 10A 250VAC, 6A 380VAC

Crust Material:: PA66

Certification:: TUV CE, TUV CE

Lever Type:: Wobble Stick type

Contact Form:: 1NO1NC

Type:: enclosed limit switch

XURUI XZ9109 1NO1NC 10A enclosed limit switch with coil spring actuator

OF MAX	100g (0.98N)
RF MIN	30g(0.29N)
PT MAX	28MM
OT MIN	20MM
MD MAX	10MM
TT	48MM
