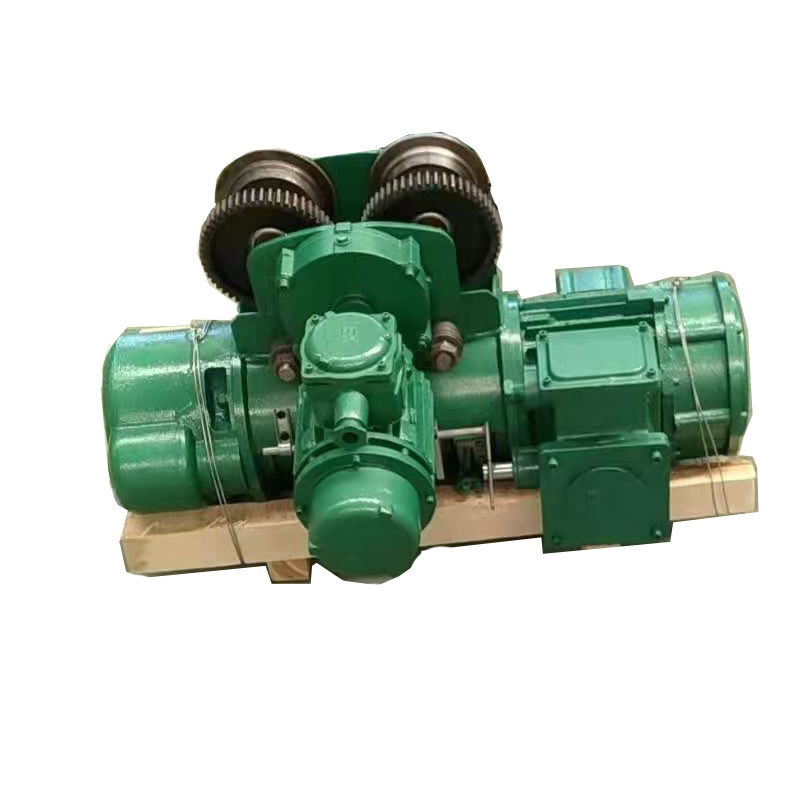

The explosion-proof electric hoist is a kind of light and small lifting equipment. The explosion-proof electric hoist has light weight, small volume and large lifting capacity. When the workshop is filled with explosive mixture, it is a favorable tool to improve working conditions and labor productivity on the premise of ensuring safety. It is also a necessary mechanical equipment for production.
The explosion-proof electric hoist is suitable for class I explosion-proof coal mine non mining working face places and class II explosion-proof places with class IIa, IIB, IIC, temperature group T1-T4 combustible gas or explosive gas mixture composed of steam and air. The working environment temperature is - 25 ℃ ~ 40 ℃, which is suitable for indoor use; when it is used outdoors, protective devices need to be added.
Explosion proof key editing
1. The electrical components of electric hoist include: lifting and running motor, control box, control button, limit device, etc. all adopt self-contained explosion-proof equipment.
2. Soft cable power supply introducer is adopted.
3. The mechanical parts shall be flameproof measures. In order to prevent friction and high temperature sparks from impact during operation of electric hoist, the relevant parts shall be treated.
(1) Fill in proper amount of mechanical oil in the lifting and running reducer.
(2) Apply grease to drum and wire rope.
(3) The connection sleeve of the stop block on the left and right and the limit device on the limit bar is made of bronze plating or stainless steel.
4. The surface temperature of electric hoist during normal working time shall not exceed 110 ℃.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
KCRANE
-
Lift Speed:
-
8m/min
-
Marketing Type:
-
Hot Product 2021
-
Weight (KG):
-
500 kg
-
Name:
-
Metallurgical electric hoist
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
Cd/md1
-
Color:
-
As your requirements
-
Power:
-
380 v, 50 HZ or Customized
-
Working system:
-
A3-A5
-
Type:
-
Metallurgical gourd
-
Application:
-
Widely
-
Power supply:
-
Customized
-
Lifting capacity:
-
1-50ton
Quick Details
-
Warranty:
-
1 Year
-
Applicable Industries:
-
Lifting Industry
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KCRANE
-
Lift Speed:
-
8m/min
-
Marketing Type:
-
Hot Product 2021
-
Weight (KG):
-
500 kg
-
Name:
-
Metallurgical electric hoist
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
Cd/md1
-
Color:
-
As your requirements
-
Power:
-
380 v, 50 HZ or Customized
-
Working system:
-
A3-A5
-
Type:
-
Metallurgical gourd
-
Application:
-
Widely
-
Power supply:
-
Customized
-
Lifting capacity:
-
1-50ton
RELATED PRODUCTS
PRODUCT OVERVIEW
SPECIFICATION
|
Technical Parameters for BCD / BMD Explosion Proof Electric Hoist
|
|
|
|
|
|
|
|
|
||||||||
|
Lifting capacity
|
|
Ton
|
1
|
2
|
3
|
5
|
10
|
16
|
||||||||
|
Lifting height
|
|
m
|
6/9/12/18/24/30
|
6/9/12/18/24/30
|
6/9/12/18/24/30
|
6/9/12/18/24/30
|
6/9/12/18/24/30
|
6/9/12/18/24/30
|
||||||||
|
Lifting speed
|
|
m/min
|
8 8/0.8
|
8 8/0.8
|
8 8/0.8
|
8 8/0.8
|
7 7/0.8
|
3.5 3.5/0.35
|
||||||||
|
Running speed
|
|
m/min
|
20
|
20
|
20
|
20
|
20
|
20
|
||||||||
|
Wire
rope |
Diameters
|
mm
|
7.4
|
11
|
13
|
15
|
15
|
17.5
|
||||||||
|
|
Form
|
mm
|
D-6X37+1
|
D-6X37+1
|
D-6X37+1
|
D-6X37+1
|
D-6X37+1
|
D-6X37+1
|
||||||||
|
Rail I-beam model
|
|
|
16-28b
|
20a-32c
|
20a-32c
|
25a-45c
|
32b-63c
|
32b-63c
|
||||||||
|
Lifting motor
|
Model
|
|
BZD/BZDS22-4
|
BZD/BZDS31-4
|
BZD/BZDS32-4
|
BZD/BZDS41-4
|
BZD/BZDS51-4
|
BZD/BZDS51-4
|
||||||||
|
|
Power
|
kW
|
1.5 1.5/0.2
|
3 3/0.4
|
4.5 4.5/0.4
|
7.5 7.5/0.8
|
13 13/2.0
|
13 13/2.0
|
||||||||
|
|
Rotation rate
|
r/min
|
1380
|
1380
|
1380
|
1400
|
1400
|
1400
|
||||||||
|
Running
motor |
Model
|
|
BZDY12-4
|
BZDY12-4
|
BZDY12-4
|
BZDY21-4
|
BZDY21-4
|
BZDY21-4
|
||||||||
|
|
Power
|
kW
|
0.4
|
0.4
|
0.4
|
0.8
|
0.8
|
0.8
|
||||||||
|
|
Rotation rate
|
r/min
|
1380
|
1380
|
1380
|
1380
|
1380
|
1380
|
||||||||
|
Working level
|
|
|
M3
|
M3
|
M3
|
M3
|
M3
|
M3
|
||||||||
|
Mechanical grade
|
|
|
25%
|
25%
|
25%
|
25%
|
25%
|
25%
|
||||||||
PRODUCTS STOCK
PACKING & SHIPPING
COMPANY EXHIBITION
Xinxiang Kehao Machinery Equipment Co., Ltd. is the design, manufacture, sales, shipping, customs, service as one of the major integrated enterprises crane. The company has advanced machining equipment, with a variety of physical, electrical, hydraulic, chemical and other testing, testing methods, the establishment of a sound quality system. Supplying Services Content as below: R & D & Design & OEM, Overhead Crane, Gantry Crane, Port & Shipyard Crane, Electric Hoist, Jib crane, Erecting bridge crane, Electric flat car & Turntable, Winch, Crane Accessories.
OUR SERVICES
1. 18 months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.
2. Two years spare-parts provided for better maintenance. 3. Professional technical staffs provide installation, commissioning and training services.
2. Two years spare-parts provided for better maintenance. 3. Professional technical staffs provide installation, commissioning and training services.
4. Delivery with English user manual, parts manual, product certification and other relevant certificates.
5. Technical advisory for any time.
