- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Chinasky, OEM
-
Model Number:
-
POE0402M-3I
-
Place of Origin:
-
Zhejiang, China
-
PoE Standard:
-
IEEE802.3af/at
-
Applications:
-
Support PoE IP camera, PoE WIFI AP, and PoE IP Phone
-
Product Description:
-
4 8 16 24 48 Port CCTV Industrial Network Ethernet PoE Switch 48V
-
PoE Ports:
-
4, 8, 16, 24, 32, 48 Ports Support Industrial PoE
-
Bandwidth:
-
1.6G, 2.2G, 2G,10G, 12G, 12.8G, 16G, 17.8G, 20G, 56G
-
Power Supply:
-
Built-in Power Adapter (Input: AC100-240V 50/60Hz)
-
PSE Type:
-
End-span 1/2(+), 3/6(-), Max 30W per channel
-
Protections:
-
short-circuit protection, Over-voltage and under-voltage protection
-
Working Temperature:
-
-20~65°C
-
Certification:
-
CE, RoHS, FCC, IEC60950-1
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
16Gbps
-
Brand Name:
-
Chinasky, OEM
-
Model Number:
-
POE0402M-3I
-
Place of Origin:
-
Zhejiang, China
-
PoE Standard:
-
IEEE802.3af/at
-
Applications:
-
Support PoE IP camera, PoE WIFI AP, and PoE IP Phone
-
Product Description:
-
4 8 16 24 48 Port CCTV Industrial Network Ethernet PoE Switch 48V
-
PoE Ports:
-
4, 8, 16, 24, 32, 48 Ports Support Industrial PoE
-
Bandwidth:
-
1.6G, 2.2G, 2G,10G, 12G, 12.8G, 16G, 17.8G, 20G, 56G
-
Power Supply:
-
Built-in Power Adapter (Input: AC100-240V 50/60Hz)
-
PSE Type:
-
End-span 1/2(+), 3/6(-), Max 30W per channel
-
Protections:
-
short-circuit protection, Over-voltage and under-voltage protection
-
Working Temperature:
-
-20~65°C
-
Certification:
-
CE, RoHS, FCC, IEC60950-1

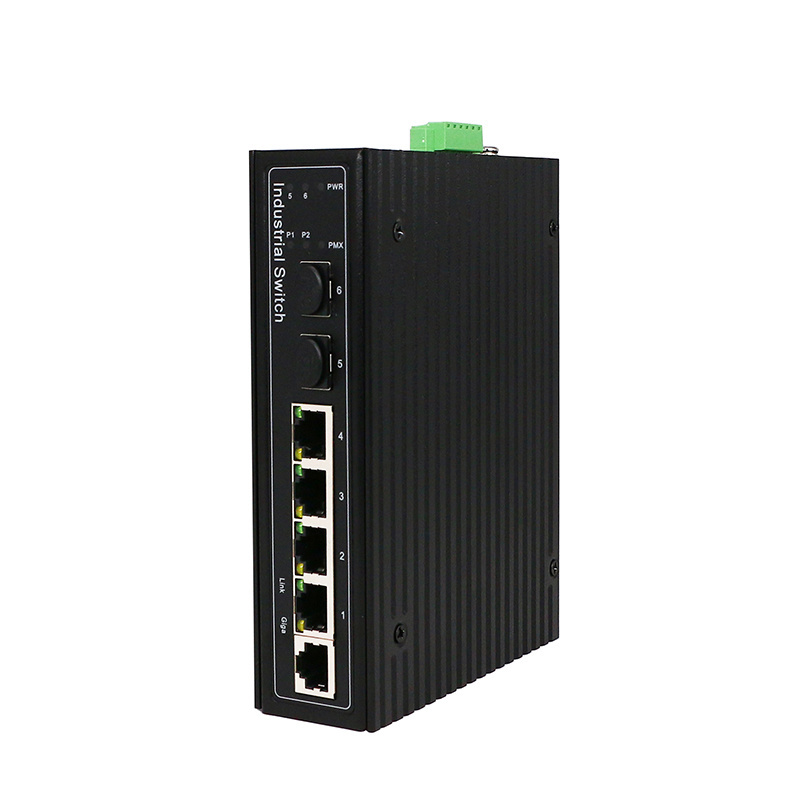

OEM 250m 4 8ports CCTV Unmanaged Managed Industrial Network Ethernet PoE Switch 48V for Hikvision IP Camera(POE0402M-3I)
Product Description
OEM 250m 4 8ports CCTV Unmanaged Managed Industrial Network Ethernet PoE Switch 48V for Hikvision IP Camera(POE0402M-3I)
Managed Industrial PoE switches
PoE Ports
:4*10/100/1000M
SFP Port
:2*100/1000M SFP
Power in:
POE
:
DC37-57V, SW
:
DC12-57V
Redundant dual power input
MAX.Power:
Standby≤5W, LAN Full load≤10W, DC Full load≤250W
Specifications:
| Model | POE0820BNH-2 | POE0820B-2 | POE2420-2 | POE0410B-3 | POE0820BNH-3 | POE0820B-3 |
| PoE Ports | 8*100Mbps | 8*100Mbps | 24*100Mbps | 4*1000Mbps | 8*1000Mbps | 8*1000Mbps |
| Uplink Ports RJ45 Ports | 2*1000Mbps | 2*1000Mbps | 2*1000Mbps | 1*1000Mbps | 2*1000Mbps | 2*1000Mbps |
| SFP Ports(1000Mbps) | × | × | × | × | × | × |
| VLAN Isolation | √ | √ | √ | √ | × | × |
| SUPM Mode(250m) | √ | √ | √ | × | × | × |
| Max Transmission Distance | 250m | 250m | 250m | 150m | 1 50m | 1 50m |
| Total Power Budget | 120W | 150W | 300W | 80W | 120W | 150W |
| Switching Capacity | 16G | 16G | 16G | 10G | 20G | 20G |
| MAC Address | 4K | 4K | 4K | 1K | 1K | 4K |
| Transmission Method | Store and forward | |||||
| Power Input | 100~240V AC, 50-60 Hz | |||||
| POE Standard | IEEE 802.3af, IEEE 802.3at | |||||
| Power Output | Up to 30W per port | |||||
| Pin Assignment | 1/2(+), 3/6(-) | |||||
| PSE Type | End-Span | |||||
| Temperature | Working: -20°~65°C Storage: -40°~70°C | |||||
|
Humidity
(Non-condensing) |
Working: 10~90% Storage: 5~95% | |||||
| Network protocol | IEEE 802.3, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af/at, IEEE 802.1q | |||||
| Certifications | CE, FCC, RoHS | |||||
| Warranty | 3 years | |||||
|
Product Dimension
(L*W*H/mm) |
210*150*35 | 210*150*35 | 440*290*45 | 190*130*35 | 210*150*35 | 210*140*45 |
| Weight(kgs) | 1.2 | 1.4 | 4.1 | 0.8 | 1.2 | 1.4 |
| Qty/CTN | 25 | 25 | 5 | 25 | 25 | 25 |
| CTN size(CM) | 49*43.5*57 | 49*43.5*57 | 49*43.5*57 | 49*43.5*57 | 49*43.5*57 | 49*43.5*57 |
