Quick Details
-
Power:
-
37kw+3kw, 37(kw)
-
Dimension(L*W*H):
-
5*2.5*4m
-
Weight (KG):
-
3000
-
Name:
-
wood flour maker
-
Model:
-
TYMF6R-600
-
capacity:
-
50-400(kg/h)
-
Output Size:
-
60-325(mesh)
-
Max feeding Dia.:
-
10(mm)
-
Rotate Speed:
-
380(r/min)
-
roller:
-
6 pcs
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Tian Yuan
-
Voltage:
-
380v
-
Power:
-
37kw+3kw, 37(kw)
-
Dimension(L*W*H):
-
5*2.5*4m
-
Weight (KG):
-
3000
-
Name:
-
wood flour maker
-
Model:
-
TYMF6R-600
-
capacity:
-
50-400(kg/h)
-
Output Size:
-
60-325(mesh)
-
Max feeding Dia.:
-
10(mm)
-
Rotate Speed:
-
380(r/min)
-
roller:
-
6 pcs

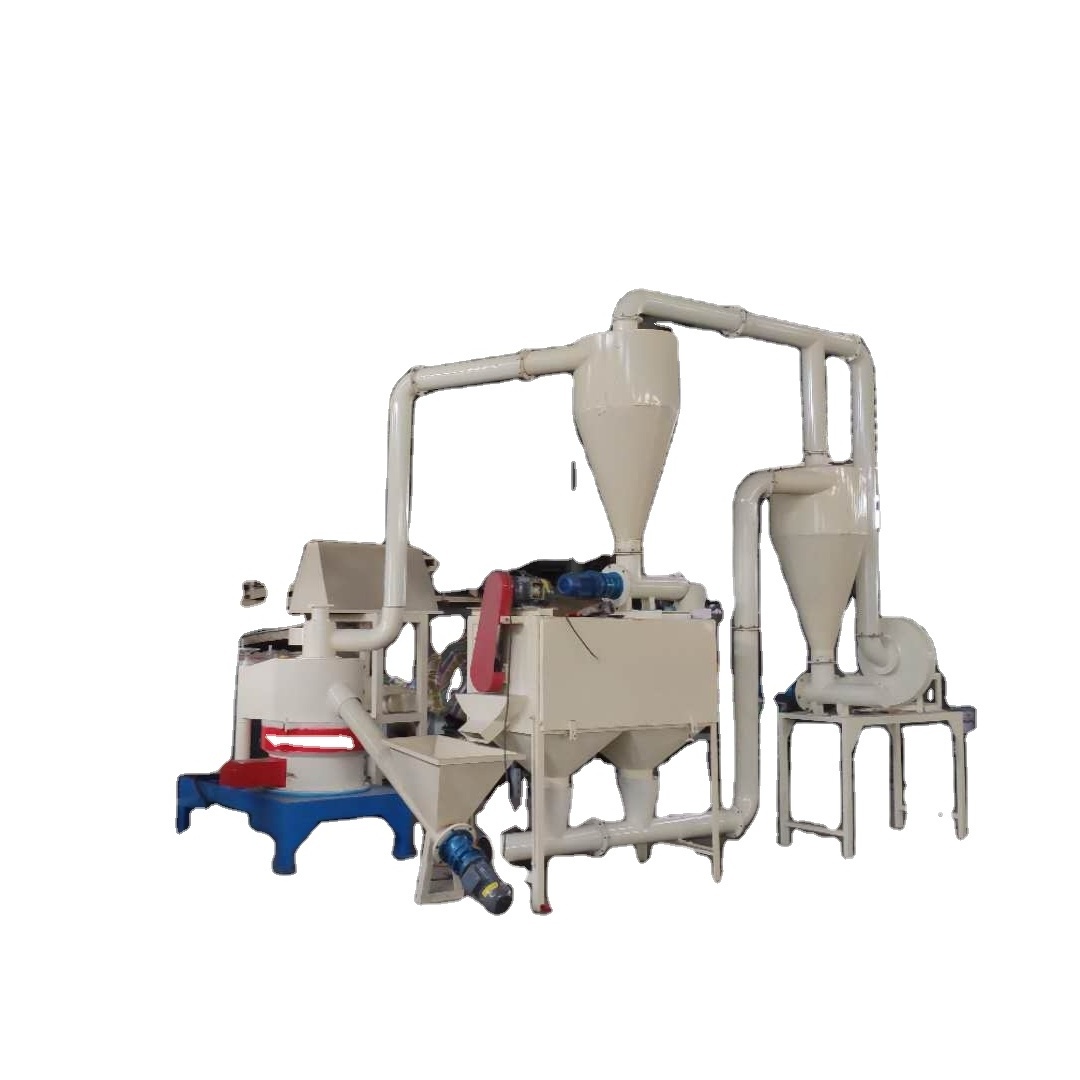

6R gear type superfine wood powder machine were developed by introduction of German technology,for crushing wide variety of fiber material with good effect,fineness can adjustable at will.Material though rough shattered enter into main crushing chamber by feeding device.And shocking,crashing,rubbing,cutting and pressing material with high speed rotating roller,to make it into fine powder,Shredded material be send to stepped gear by the rising flow,in the stepped gear under the action of centrifugal force and draught fan,separation the power ,qualified fine powder collected by the cyclone collector,unqualified powder return chamber crushing again.
|
Model
|
TYMF6R-600
|
|
Knife(psc)
|
6
|
|
Power(kw)
|
37
|
|
screem machine(kw)
|
2.2
|
|
Max feeding Dia.(mm)
|
5
|
|
Rotating speed(r/min)
|
380
|
|
fan(kw)
|
5.5
|
|
Out size(mesh)
|
60-325
|
|
Output(kg/h)
|
50-400
|
|
Dimension(m)
|
5*2.5*4.5
|
Packing:
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
If machine is big, we will fix the machine inside container with steel wires and nails.
Machine won't move inside the container.
Port:
Qin Dao China
