Quick Details
-
Model Number:
-
SUP-ACDC/ AC AC/Chargers
-
Output Power::
-
60W
-
Output voltage::
-
12V
-
Output current::
-
5A
-
frequency:
-
50/60Hz
-
Input Voltage:
-
100-240Vac
-
AC Inlet:
-
C6,C8,C14
-
AC plug type:
-
US EU AU UK,etc
-
AC Cable:
-
1.2M,1.5M,2M,3M
-
Certification:
-
CE ROHS UL/cUL FCC KCC GS SAA BS CB
-
Product Name:
-
12v 5a switching power adapter
Quick Details
-
Output Type:
-
DC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUPPOWER, SPAYPS
-
Model Number:
-
SUP-ACDC/ AC AC/Chargers
-
Output Power::
-
60W
-
Output voltage::
-
12V
-
Output current::
-
5A
-
frequency:
-
50/60Hz
-
Input Voltage:
-
100-240Vac
-
AC Inlet:
-
C6,C8,C14
-
AC plug type:
-
US EU AU UK,etc
-
AC Cable:
-
1.2M,1.5M,2M,3M
-
Certification:
-
CE ROHS UL/cUL FCC KCC GS SAA BS CB
-
Product Name:
-
12v 5a switching power adapter
Universe frequency ac dc voltage isolation motor audio inverters 24v 12v 12 24 volt electrical the transformers power converters.
Product Description
Features:
- Energy efficiency level VI ,EN62368
- Built with input/output overvoltage protection, input/output overcurrent protection, over temperature
protection, over power protection and short circuit protection.
- Double chipset innovation provides constant true voltage automatically with low consumption.
| Specifications |
| Input Voltage Range |
VAC 100-240Vac 50/60Hz
|
| Output |
12 V 5A |
| Total Regulation |
- ± 5%
|
| Ripple & Noise |
mV 120 mV
|
| Short Circuit Protection |
% Continuous-hiccup mode
|
| Over Voltage Protection |
℃ 110-150% of nominal (Cycle input power reset)
|
| Efficiency at Average Load |
- 88%
|
| Operation Temperature |
℃ 0 to +60 ℃ , derating linearly to 50% load above 40℃
|
| Storage Temperature |
℃ -10 to +85℃
|
| Humidity (non condensing) |
- 10-90% RH
|
| Safety Agency Certifications |
- UL62368-1,UL60950-1,UL1310,EN55030:2015
|
| DOE Regulation |
- VI
|
| Off-Load Power Consumption |
mV <100 mV
|
| AC Input Connector |
- IEC 320-C14 C8 C6
|
| MTBF 100%, 25 ℃ |
Hours 50,000 -100,000 hours
|
| Warranty |
Years 3 years
|
| Length of Output Power Cord |
CM 113/49/35mm
|
| Packing |
- Regular Paper box+Bubble bag/ Customized accepted
|

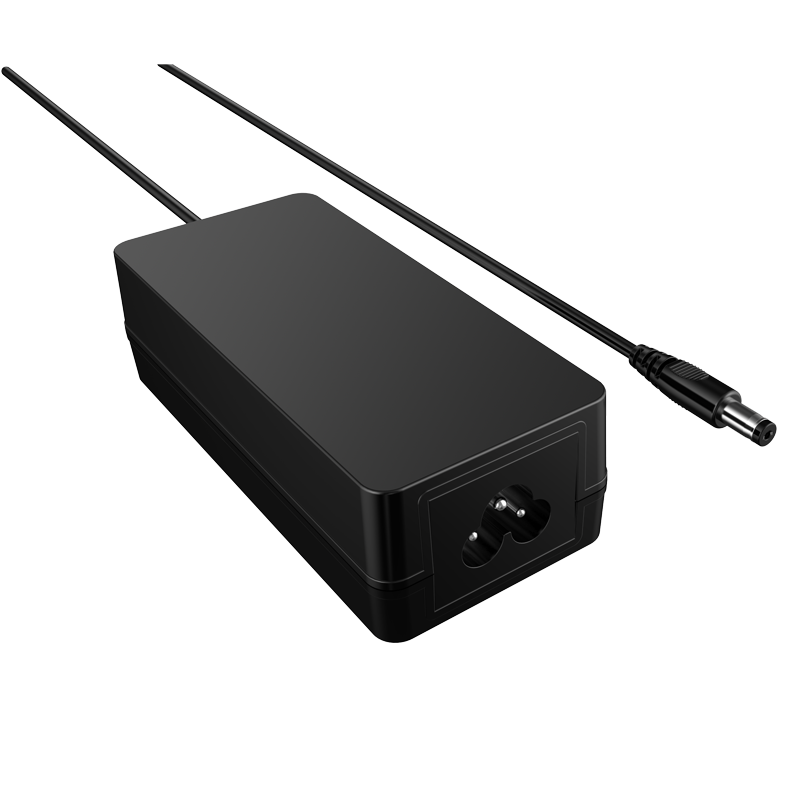

Product Pictures
Interchangeable plugs Desktop
Application
