Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Keyword:
-
UTV-00791
-
Application:
-
best all around UTV
-
Model:
-
UTV200 UTV200-4 UTV300 UTV300-4
-
OEM:
-
Welcomed
-
Pattern:
-
Off-Road SPORT OR FARM
-
Usage:
-
SPORT WORKING FARMING GOLF
-
Function:
-
FUN WORK GOLF
-
Main Market:
-
Europe American
-
Feature:
-
PATENT PRODUCT
-
Certification:
-
CE
Quick Details
-
Material:
-
STEEL
-
Brand Name:
-
BUGGYPRO
-
Model Number:
-
UTV-00791
-
Place of Origin:
-
Jiangsu, China
-
Keyword:
-
UTV-00791
-
Application:
-
best all around UTV
-
Model:
-
UTV200 UTV200-4 UTV300 UTV300-4
-
OEM:
-
Welcomed
-
Pattern:
-
Off-Road SPORT OR FARM
-
Usage:
-
SPORT WORKING FARMING GOLF
-
Function:
-
FUN WORK GOLF
-
Main Market:
-
Europe American
-
Feature:
-
PATENT PRODUCT
-
Certification:
-
CE
Product Description
UTV-00791
| 2 SEATS 4 SEATS | UTV150/300 specification | |||
| model | UTV300(two seats) | UTV300(four seats) | UTV150 (two seats) | UTV150(four seats) |
| Vehicle parameters | ||||
| length | 2600mm | 3350mm | 2600mm | 3350mm |
| width | 1260mm | 1260mm | 1260mm | 1260mm |
| hight | 1600mm | 1600mm | 1600mm | 1600mm |
| wheel base | 1830mm | 2580mm | 1830mm | 2580mm |
| front wheel center distance | 1080mm | 1080mm | 1080mm | 1080mm |
| rear wheel center distance | 985mm | 985mm | 985mm | 985mm |
| Minimum ground clearance | 160mm | 160mm | 160mm | 160mm |
| max speed | 65KM/H | 65KM/H | 60KM/H | 43KM/H |
| net weight | 300KG | 350KG | 280KG | 330KG |
| packing size | 2300*1330*880 | 3000*1330*880 | 2300*1330*880 | 3000*1330*880 |
| engine parameters | ||||
| engine model | 173MN | 173MN | JL1P57F | JL1P57F |
| engine type | four stroke | four stroke | four stroke | four stroke |
| cylinder qty | single cyclinder | single cyclinder | single cyclinder | single cyclinder |
| cooling method | water cool | water cool | force air cool | force air cool |
| displacement | 275.6cc | 275.6cc | 149.6cc | 149.6cc |
| bore | 72.5 | 72.5 | 57.4 | 57.4 |
| stroke | 66.8 | 66.8 | 57.8 | 57.8 |
| compression ratio | 10:1 | 10:1 | 9.2:1 | 9.2:1 |
| fuel supply mode | External electronic oil pump | External electronic oil pump | Negative pressure oil pump | Negative pressure oil pump |
| carburetor type | Y28V1L | Y28V1L | PD24J | PD24J |
| power | 13KW/6500RPM | 13KW/6500RPM | 7.4KW/7500RPM | 7.4KW/7500RPM |
| torque | 22Nm/5000RPM | 22Nm/5000RPM | 13Nm/5000RPM | 13Nm/5000RPM |
| ignition mode | battery ignition | battery ignition | battery ignition | battery ignition |
| lubrication mode | splash | splash | splash | splash |
| spark plug model | DR8EA | DR8EA | C7HSA | C7HSA |
| spark plug clearance | 0.6-08mm | 0.6-08mm | 0.6-07mm | 0.6-07mm |
| crankcase lubrication oil model | SAE 10W/40 | SAE 10W/40 | SAE 10W/40 | SAE 10W/40 |
| fuel number | gasoline ≥92# | gasoline ≥92# | gasoline ≥92# | gasoline ≥92# |
| transmission mode | continuously variable speed CVT | continuously variable speed CVT | continuously variable speed CVT | continuously variable speed CVT |
| transmission | built in reverse | built in reverse | built in reverse | built in reverse |
| other parameters | ||||
| battery model | YTX12-BS 12V10Ah | YTX12-BS 12V10Ah | YTX12-BS 12V10Ah | YTX12-BS 12V10Ah |
| fuse | 30A | 30A | 30A | 15A |
| front wheel model | 22*7-10 | 22*7-10 | 22*7-10 | 22*7-10 |
| rear wheel model | 22*10-10 | 22*10-10 | 22*10-10 | 22*10-10 |
| brake type | hydraulic disk brake | hydraulic disk brake | hydraulic disk brake | hydraulic disk brake |
| front suspension type | double A arm independent suspension | double A arm independent suspension | double A arm independent suspension | double A arm independent suspension |
| rear suspension type | independent suspension | independent suspension | rear axle with double shockabsorber | rear axle with double shockabsorber |
| driven type | rear wheel driven | rear wheel driven | rear wheel drive | rear wheel drive |
| tyre pressure | 80-100kpa | 80-100kpa | 80-100kpa | 80-100kpa |

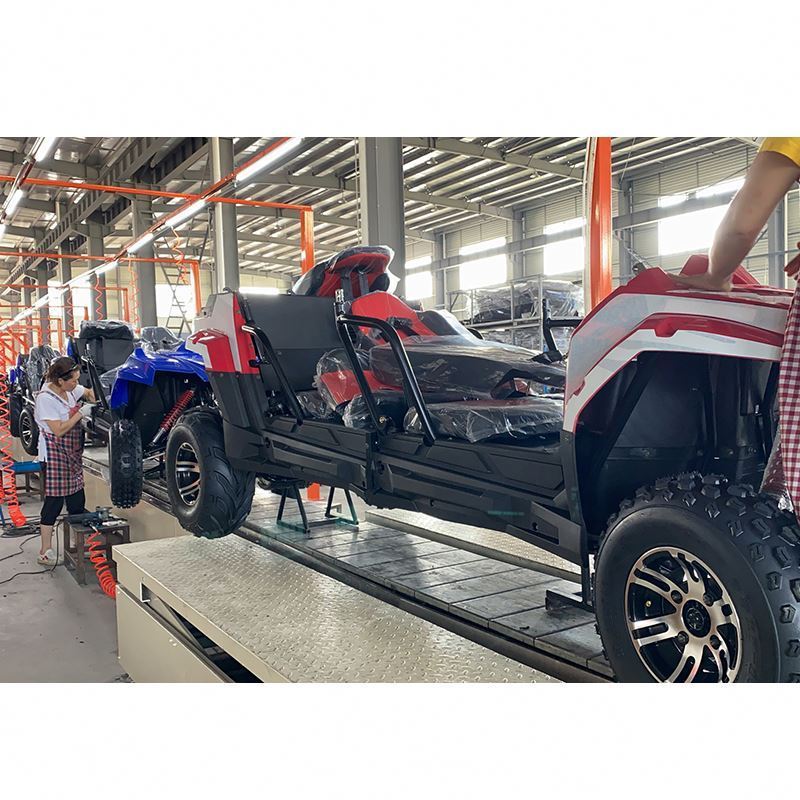

Production Process
