Quick Details
-
Model Number:
-
RK2-16
-
Max. Current:
-
6A
-
Mechanical Life:
-
30000cycles
-
Category:
-

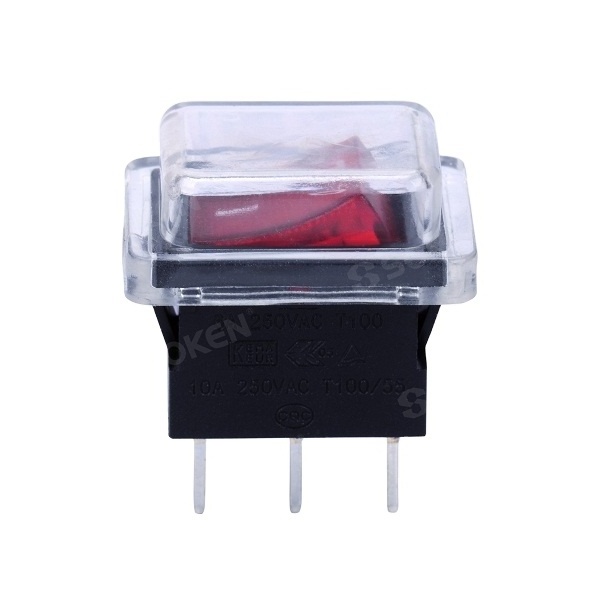

Rocker switch Miniature Daier
-
Function:
-
ON-OFF/SPST Illuminate
-
Electrical life:
-
10000cycles
-
Certificates:
-
RoHS CQC TUV VDE CB KEMA ENEC UL(t85)
-
Panel cutout:
-
19.8mmx13mm
-
Terminal spec:
-
4.8mm x0.8mm
-
Withstand Voltage:
-
>3000VAC /5s
-
Operating force:
-
6±2.5N
-
Housing /Actuator Material:
-
PA66/ PC
-
Application:
-
yacht, marine tools
-
Certification:
-
TUV,UL,CE
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOKEN
-
Model Number:
-
RK2-16
-
Max. Current:
-
6A
-
Mechanical Life:
-
30000cycles
-
Category:
-
Rocker switch Miniature Daier
-
Function:
-
ON-OFF/SPST Illuminate
-
Electrical life:
-
10000cycles
-
Certificates:
-
RoHS CQC TUV VDE CB KEMA ENEC UL(t85)
-
Panel cutout:
-
19.8mmx13mm
-
Terminal spec:
-
4.8mm x0.8mm
-
Withstand Voltage:
-
>3000VAC /5s
-
Operating force:
-
6±2.5N
-
Housing /Actuator Material:
-
PA66/ PC
-
Application:
-
yacht, marine tools
-
Certification:
-
TUV,UL,CE
Recommend Products
Exhibition
Products Description
|
Rating
|
250VAC 10A or 125VAC 6A
|
|
Contact Resistance
|
100MΩ Max
|
|
Dielectric Strength
|
1500VAC/ 5S for terminal and terminal. 3000VAC 5s for terminal and ground
|
|
Operating Temperature
|
-25~85°C
|
|
Insulated Resistance
|
500VDC, 100MΩ Min
|
|
Electrical Life
|
≥10,000 cycles
|
|
Pins (Terminals)
|
3 pins
|
|
Housing Material
|
PA66
|
|
Button Material
|
PC
|
|
Base plastic
|
Nylon 66
|
|
Button plastic
|
PC
|
|
Copper parts such as terminal
|
Copper
|
|
Terminal surface treatment
|
Silver plating
|
|
Contact
|
Ag or Composite silver
|
|
Spring
|
Steel Wire
|
|
Waterproof Material
|
PVC
|
