Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
BX-265
-
Brand Name:
-
BOXING
-
Delivery Time:
-
15 days
-
Product name:
-
Welded BRC Reinforcing Steel Wire Mesh Manufactureronstruction
-
Surface treatment:
-
Untreatment
-
Feature:
-
Durable
-
Certification:
-
ISO9001: 2015
-
Raw Material:
-
Low Carbon Iron Steel
-
Packing:
-
Pallet
-
Advantage:
-
Superior Wire
-
Factory experience:
-
13 Years
-
Free Sample:
-
Accept
-
Hole shape:
-
Square Hole
Quick Details
-
Material:
-
Black Wire Mesh
-
Type:
-
Reinforced Mesh
-
Application:
-
Protecting Mesh
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
BX-265
-
Brand Name:
-
BOXING
-
Delivery Time:
-
15 days
-
Product name:
-
Welded BRC Reinforcing Steel Wire Mesh Manufactureronstruction
-
Surface treatment:
-
Untreatment
-
Feature:
-
Durable
-
Certification:
-
ISO9001: 2015
-
Raw Material:
-
Low Carbon Iron Steel
-
Packing:
-
Pallet
-
Advantage:
-
Superior Wire
-
Factory experience:
-
13 Years
-
Free Sample:
-
Accept
-
Hole shape:
-
Square Hole
Welded BRC Reinforcing Steel Wire Mesh Manufacturer
Steel mesh is also known as: welded steel mesh, reinforcing bar welding net, reinforcing steel welding net, reinforcing steel welding mesh, reinforcing steel mesh and so on. The longitudinal reinforcement and the transverse reinforcement are arranged at a certain distance at a certain distance, and each of them is welded at the right angle and all the intersections are welded together.
|
1.GERMAN STANDARD DIN488 (SIZE:2150MMX5000MM)
|
||||||
|
Ref No.
|
Std Unit
|
Longitudinal
Wires(mm)
|
Cross
Wire(mm)
|
Pitch of Wire(mm)
|
Mass
(Kg)
|
Mass
(Kg/m2)
|
|
Q131
|
Sheet
|
5
|
5
|
150@150
|
22.476
|
2.091
|
|
Q181
|
Sheet
|
6
|
6
|
150@150
|
32.401
|
3.014
|
|
Q221
|
Sheet
|
6.5/5.0
|
6.5
|
150@150
|
33.707
|
3.316
|
|
Q295
|
Sheet
|
7.5/5.5
|
7.5
|
150@150
|
44.245
|
4.116
|
|
Q378
|
Sheet
|
8.5/6
|
8.5
|
150@150
|
66.659
|
5.157
|
|
2. Australia/New Zealand standard AS/NZS 4671:2001(SIZE:6000X2400mm)
|
|||||
|
Ref No.
|
Std Unit
|
Longitudinal
Wires(mm)
|
Edge wires
(mm)
|
Cross
Wires(mm
|
Mass(Kg)
|
|
SL81(F81)
|
Sheet
|
7.6 @100
|
7.60 @100
|
7.60 @100
|
105
|
|
SL102(F102)
|
Sheet
|
9.5 @200
|
6.75 @100
|
9.50 @200
|
80
|
|
SL92(F92)
|
Sheet
|
8.6 @200
|
6 @100
|
8.60 @200
|
66
|
|
SL82(F82)
|
Sheet
|
7.6 @200
|
5.37 @100
|
7.60 @200
|
52
|
|
SL72(F72)
|
Sheet
|
6.75 @200
|
4.77 @100
|
6.75 @200
|
41
|
|
SL62(F62)
|
Sheet
|
6@200
|
4.77 @100
|
6 @200
|
33
|
|
SL52(F52)
|
Sheet
|
4.77 @200
|
4.77 @100
|
4.77 @200
|
21
|
|
3.BRITISH STANDARD BS4483
|
||||||
|
Ref No.
|
Std Unit
|
Longitudinal
Wires(mm)
|
Cross
Wires(mm
|
Pitch of wire
(mm)
|
No. of sheet per ton
|
Mass
(kg/m2)
|
|
A393
|
Sheet
|
10
|
10
|
200@200
|
15
|
6.16
|
|
A252
|
Sheet
|
8
|
8
|
200@200
|
22
|
3.95
|
|
A193
|
Sheet
|
7
|
7
|
200@200
|
29
|
3.02
|
|
A142
|
Sheet
|
6
|
6
|
200@200
|
40
|
2.22
|
|
A98
|
Sheet
|
5
|
5
|
200@200
|
57
|
1.54
|

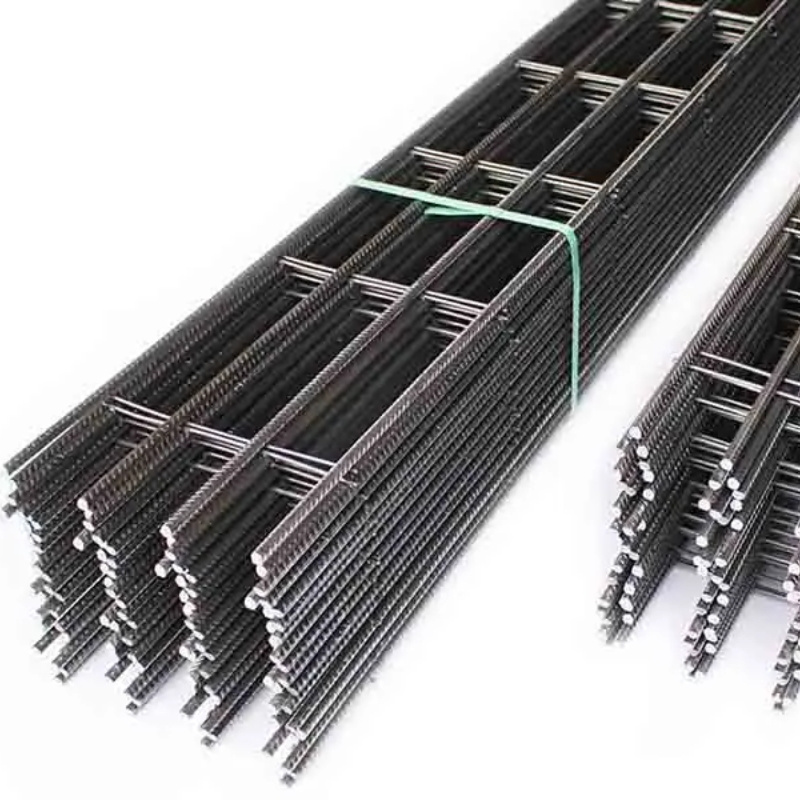

Reinforcement Mesh Show
Reinforcement Welded Panels Advantages:
1.Lower the cost of the project.
2.Speed up the construction progress.
3.Ensure the quality of the project.
4.Anti-cracking performance,etc.
Reinforcement Welded Panels Feature
A.Light weight( 1/4 of the same reinforcement weight)
B.High tensile strength (approximately twice the load of the same reinforcement)
C.Anti-corrosion and durability
D.Anti-static
E.Non-conductive, will not produce sparks when cutting, especially for high gas region
F.Non-combustible (high thermal insulation)
G.Easy cutting ( avoid damage the cutting head and available)
H.Non-magnetic
Production Process
carbon steel wire welded into a network → heating → cooling to the required temperature of hot-dipped
/ electro galvanizing → cooling → storage
Reinforcement Welded Panels Application
It is widely used in the industry, agriculture, aquaculture, building, communication and transportation and mineral extraction, etc. It also finds application in shields on machinery or equipment, wire fence for livestock or flowers and trees, fence for protecting windows, fence for pathways, poultry cage, basket for holding eggs, foodstuff basket, paper basket or decorative fields in home or office
