Quick Details
-
Brand Name:
-
C-TECH
-
Model Number:
-
FT-A BRASS
-
Standard:
-
EN1015-3
-
Height of drop:
-
10mm
-
working cycle:
-
25S
-
Product name:
-
Brass table motorized cement flow table
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
C-TECH
-
Model Number:
-
FT-A BRASS
-
Standard:
-
EN1015-3
-
Height of drop:
-
10mm
-
working cycle:
-
25S
-
Product name:
-
Brass table motorized cement flow table
DESCRIPTION:

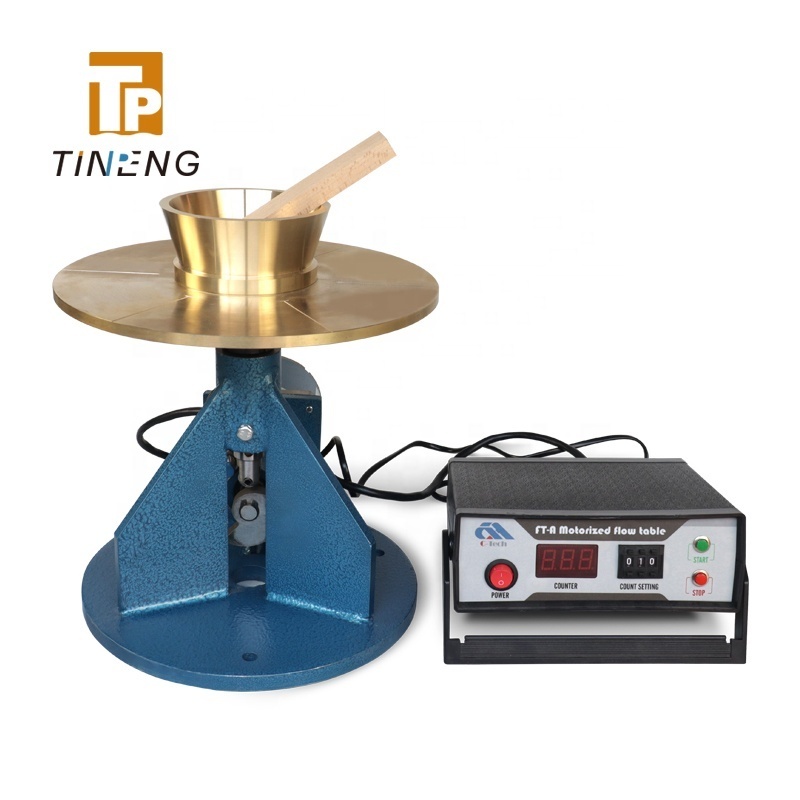

Motorized concrete flow table
motorized cement flow table
used for determining the consistency of cement mortars. The motor operated models are driven by a motor speed reducer and the number of drops are shown on the counter, which stops
automatically the machine at the end of the cycle. Supplied complete with fl ow mould and tamper.
SPECIFICTION:
Model FT-A BRASS
Weight of vibrating part: 4.35±0.15 kg
Height of drop: 10±0.1 mm
Vibrating frequency: 1 HZ
Working cycle: 25 S
Table diameter: 300±1 mm
Flow mould dimension: 100 mm base dia. x 70 mm
top dia. x 60 mm high
Motor Power: 220V, 50Hz
Dimension: 400×400×690 mm
Net weight: 25 kg
