Quick Details
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1130*530*2mm
-
Panel Efficiency:
-
21.4%
-
Solar Cells:
-
Shingled Solar Cells
-
Front cover:
-
3.2mm High Transmission, Low Iron Tempered Glass
-
Frame:
-
Anodized Aluminium Alloy
-
Frame color:
-
Black
-
Connector:
-
PV Compatible Connector
-
PV Cable:
-
4mm2 PV Cable
-
Cetificates:
-
CE
-
Weight:
-
2.5kg
-
Power output warranty:
-
12 year 90% ouput, 25 years 80% output
-
Application:
-
RV/Yacht/Home Kits
Quick Details
-
Cell size:
-
210mmx210mm
-
Brand Name:
-
Bluesun Solar
-
Model Number:
-
BSM-SFLEX-110W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1130*530*2mm
-
Panel Efficiency:
-
21.4%
-
Solar Cells:
-
Shingled Solar Cells
-
Front cover:
-
3.2mm High Transmission, Low Iron Tempered Glass
-
Frame:
-
Anodized Aluminium Alloy
-
Frame color:
-
Black
-
Connector:
-
PV Compatible Connector
-
PV Cable:
-
4mm2 PV Cable
-
Cetificates:
-
CE
-
Weight:
-
2.5kg
-
Power output warranty:
-
12 year 90% ouput, 25 years 80% output
-
Application:
-
RV/Yacht/Home Kits
Products Description

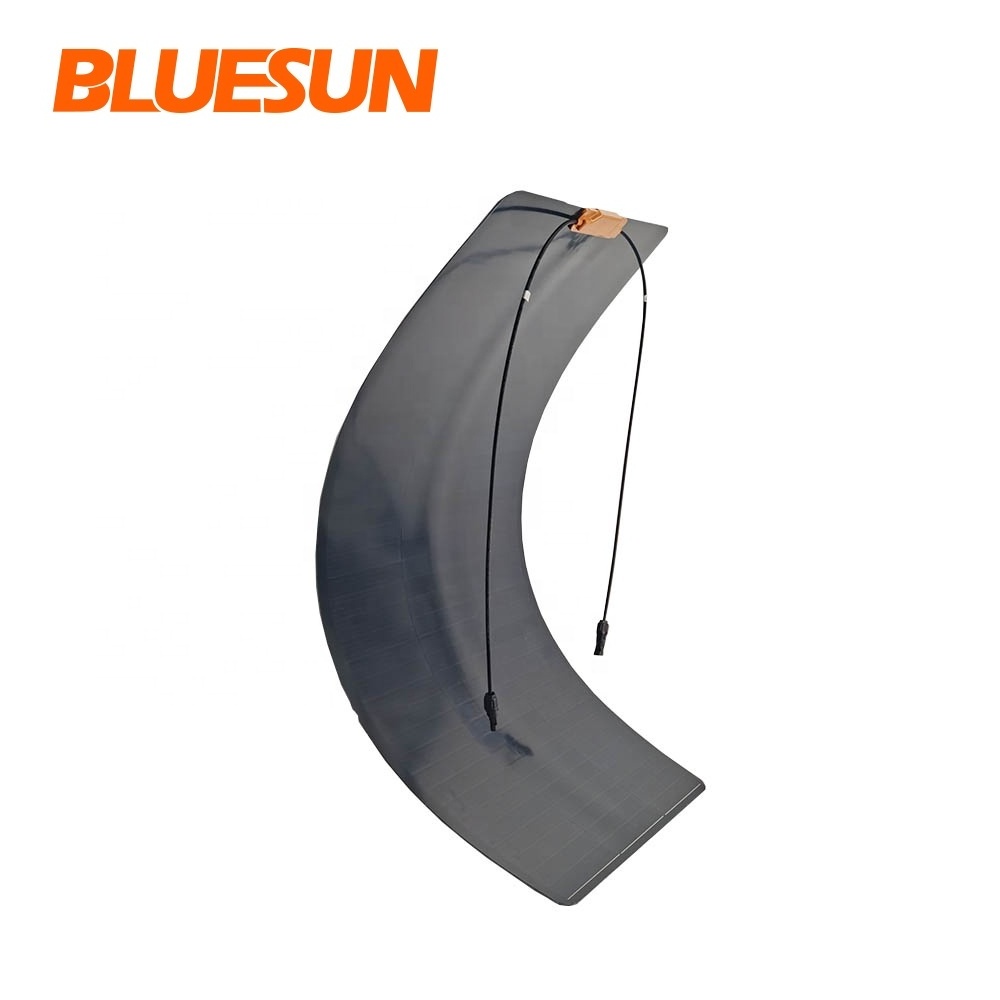

Innovative Shingled Technology
*Lightness, Thinness Flexibility
*New Tech , Thin Flip Power Panel
*Power Your Solar Ship
*New Tech , Thin Flip Power Panel
*Power Your Solar Ship
Technical Specifications
|
Mechanical Data
Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃
|
|
|
|
|||
|
Nominal Power
|
60W
|
110W
|
160W
|
|||
|
Cell Type
|
Monocrystalline
|
|
|
|||
|
Cell Efficiency
|
21.40%
|
|
|
|||
|
Maximum Power Current (Impp)
|
3.30A
|
5.71A
|
7.27A
|
|||
|
Maximum Power Voltage (Vmpp)
|
18.15V
|
19.25V
|
22V
|
|||
|
Open-circuit Voltage (Voc)
|
21.45V
|
22.75V
|
26V
|
|||
|
Short-circuit Current (Isc)
|
3.81A
|
6.22A
|
7.79A
|
|||
|
Maximum System Voltage
|
100V
|
|
|
|||
|
Output Tolerance
|
3.00%
3.00% 3% |
|
|
|||
|
Cable
|
900mm / 1.5mm2
|
900mm / 2.5mm2
|
900mm / 2.5mm2
|
|||
|
Connector Type
|
pv Compatible
|
|
|
|||
|
Module Structure
|
ETFE / EVA / Backsheet
|
|
|
|||
|
Junction box rating
|
≥IP67
|
|
|
|||
|
Number of Diodes
|
One
|
|
|
|||
|
Working Temperature
|
-40℃~+80℃
|
|
|
|||
|
Packaging
|
|
|
|
|||
|
Module Dimensions
|
880*350*2mm
|
1130*520*2mm
|
1220*680*2mm
|
|||
|
Module Weight
|
1.3kg
|
2.5kg
|
3.5kg
|
|||
|
Package
|
Single Package
|
|
|
|||
|
Pieces per Pallet
|
56
|
33
|
30
|
|||
|
Gross Weight per Pallet
|
120kg
|
115kg
|
135kg
|
|||
|
Pallet Dimensions
|
1200*1100*700mm
|
1200*1100*700mm
|
1240*1100*840mm
|
|||
|
|
|
|
||||
