Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
1750mm*800mm*3120mm
-
Machine Weight:
-
252 kg
-
Bucket capacity:
-
0.2cbm
-
Model:
-
BH5600
-
Tractor horsepower:
-
25-30hp
-
Three point suspension:
-
Cat-1&2
-
Working length:
-
2600mm
-
Digging depth:
-
1750mm
-
Lifting height:
-
3120mm
-
Dumping height:
-
1800mm
-
Strut angle span:
-
1700mm
-
Boom swing angle:
-
180°
-
Bucket width:
-
300mm
Quick Details
-
Engine Brand:
-
HONDA
-
Power:
-
75kw
-
Brand Name:
-
RIMA
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
1750mm*800mm*3120mm
-
Machine Weight:
-
252 kg
-
Bucket capacity:
-
0.2cbm
-
Model:
-
BH5600
-
Tractor horsepower:
-
25-30hp
-
Three point suspension:
-
Cat-1&2
-
Working length:
-
2600mm
-
Digging depth:
-
1750mm
-
Lifting height:
-
3120mm
-
Dumping height:
-
1800mm
-
Strut angle span:
-
1700mm
-
Boom swing angle:
-
180°
-
Bucket width:
-
300mm
Product Overview

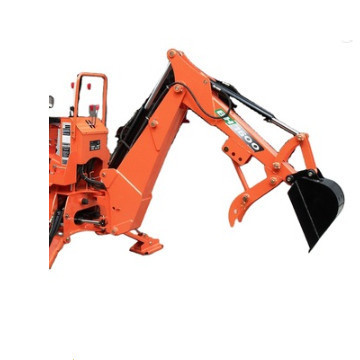

Hydraulic backhoe-BH
It's ideal for digging irrigation trenches, breaking up rocky soil, piping preparation, channelling rainfall runoffs and roadsides, planting and relocating trees.
The new RM's backhoe loader features high flexibility, efficiency, reliability, and durability. The all-new visual identity appearance, panoramic cab, and optimized ergonomic design are applied to realize high fashion, beauty, and operation comfort. The multiple environmental adaptability technologies for high temperature, low temperature, highland, and heavy dust are available. The tool-less large-angle forward-tiltable hood realizes the one-stop maintenances and repairs. The diversified attachments, including four-in-one bucket, clamp, sweeper, breaking hammer, twist drill, and vibrating tamper, can be installed to realize multi-functionality.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
Model
|
BH5600
|
BH6600
|
BH7600
|
BH8600
|
|
Tractor horsepower
|
18-25hp
|
25-35hp
|
30-45hp
|
35-66hp
|
|
Three point suspension
|
Cat-1&2
|
Cat-1&2
|
Cat-1&2
|
Cat-1&2
|
|
Max. Digging depth
|
1830mm
|
2133mm
|
2438mm
|
2745mm
|
|
Digging depth(2 feet flat bottom)
|
1676mm
|
1980mm
|
2286mm
|
2590mm
|
|
Boom swing degree
|
180°
|
180°
|
180°
|
180°
|
|
Loading height(bucket at 60°)
|
1270mm
|
1524mm
|
1778mm
|
2032mm
|
|
Loading reach(bucket at 60°)
|
865mm
|
965mm
|
1092mm
|
1220mm
|
|
Reach from center line of swing pivot
|
2286mm
|
2590mm
|
2895mm
|
3200mm
|
|
Max. transport height
|
1245mm
|
1498mm
|
1752mm
|
2032mm
|
|
Transport overhang
|
1016mm
|
1042mm
|
1066mm
|
1092mm
|
|
Bucket rotation
|
180°
|
180°
|
180°
|
180°
|
|
Undercut
|
660mm
|
712mm
|
762mm
|
812mm
|
|
Stabilizer spread, down position
|
1700mm
|
1980mm
|
2260mm
|
2565mm
|
|
Stabilizer spread, up position
|
1066mm
|
1194mm
|
1550mm
|
1828mm
|
|
Bucket cylinder digging force
|
930kg
|
1112kg
|
1288kg
|
1360kg
|
|
Dipper stick cylinder digging force
|
476kg
|
566kg
|
910kg
|
1135kg
|
|
Bucket width
|
230mm
|
300mm
|
380mm
|
450mm
|
|
Hydraulic volume
|
3-4GPM
|
3-4GPM
|
3-4GPM
|
3-4GPM
|
|
Hydraulic pressure
|
2000psi
|
2000psi
|
2000psi
|
2000psi
|
|
Weight(without bucket)
|
252kg
|
296kg
|
356kg
|
498kg
|
|
40”HC
|
40pcs
|
40pcs
|
40pcs
|
36pcs
|
PRODUCT CONFIGURATION
