Quick Details
-
Model Number:
-
XD-MP5
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-20-60℃
-
Max. Current:
-
3A
-
Material:
-
Reinforced plastic shell
-
Contact:
-
gold-plated silver contact
-
Rating Load:
-
3A 240VAC / 2.3A 30VDC
-
Electrical Life:
-
100,000 times above
-
Mechanical Life:
-
1,000,000 times above
-
Standard:
-
EN60947-5-1
-
Contact Form:
-
1NO1NC, 2NC
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
240VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
xurui
-
Model Number:
-
XD-MP5
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-20-60℃
-
Max. Current:
-
3A
-
Material:
-
Reinforced plastic shell
-
Contact:
-
gold-plated silver contact
-
Rating Load:
-
3A 240VAC / 2.3A 30VDC
-
Electrical Life:
-
100,000 times above
-
Mechanical Life:
-
1,000,000 times above
-
Standard:
-
EN60947-5-1
-
Contact Form:
-
1NO1NC, 2NC
-
Certification:
-
CE

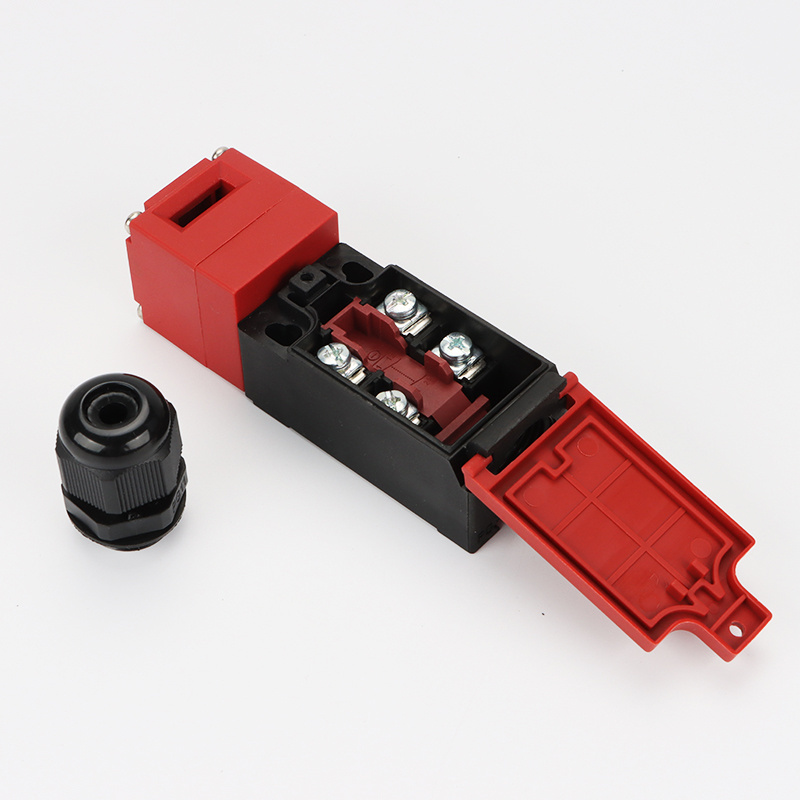

XURUI safety mechanical interlock switch door switch 2NC
Features:
1.Reinforced plastic shell,oil-proof,and waterproof.
2.Multiple sets of gold-plated silver contact combination,flexible configuration.
3.High locking force, up to 1300N.
4.The indicator light indicates the working status, Configure the emergency unlock function.
5. Equipped with 6 types operation keys.
6. Opening and protection devices for safety doors in the industrial field.
